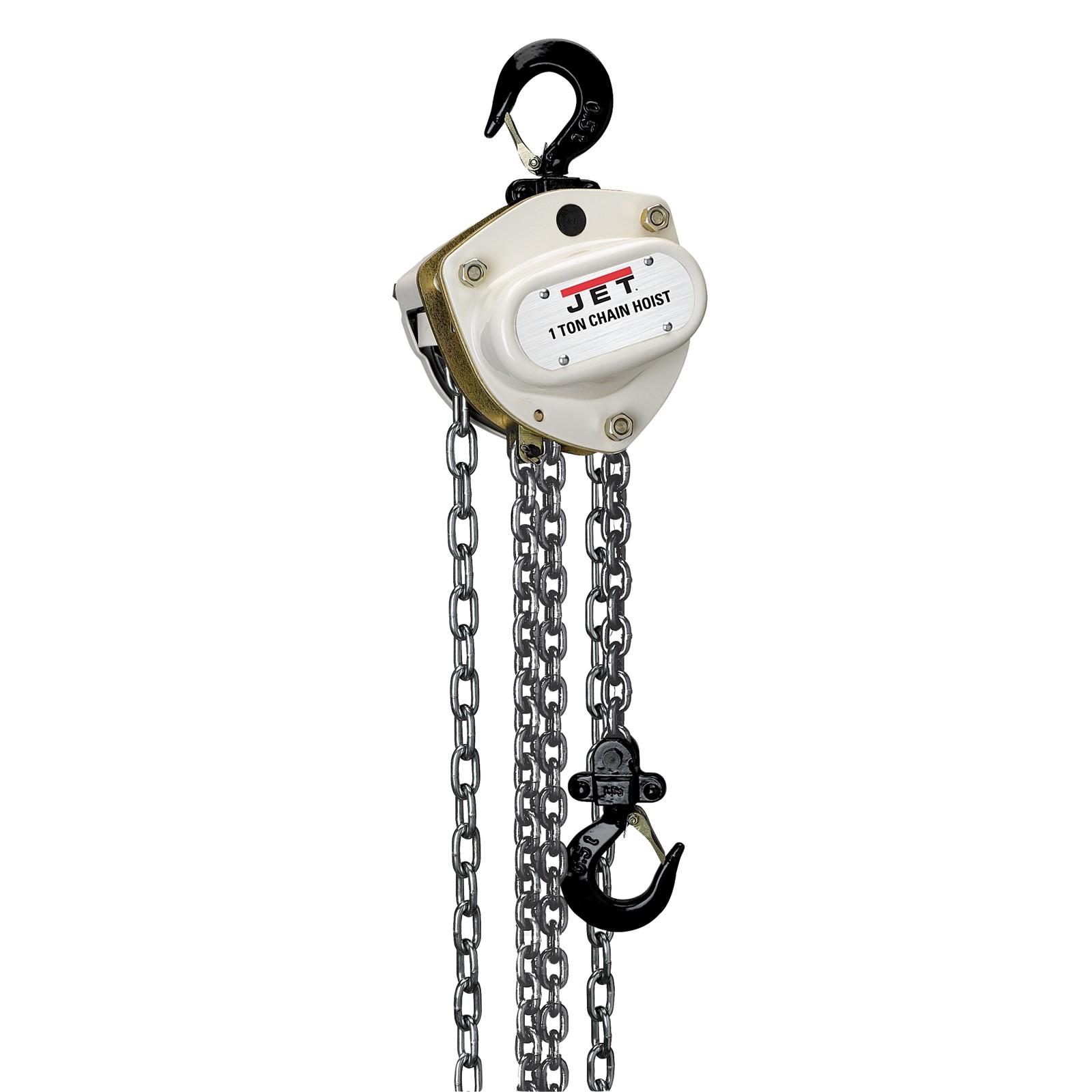

Jet 203130 Chain Hoist 1 Ton 30 Foot Lift

Product Description

The JET 203130 is a 1-ton manual chain hoist rated for a 30-foot lift height and built with integrated overload protection. It is designed for rigging, lifting, and positioning heavy loads in industrial, construction, and maintenance environments. The overload protection mechanism prevents the hoist from being loaded beyond its rated capacity, reducing risk of chain failure or structural damage. At 52.6 pounds, the unit is substantial enough for demanding service while remaining portable enough for field use. Licensed riggers, millwrights, and maintenance mechanics are the primary installers and operators of this equipment.

This chain hoist suits applications where a controlled, hand-operated vertical lift is required. Typical install scenarios include overhead beam mounting in shops and warehouses, temporary rigging on construction sites, and equipment removal or positioning in mechanical rooms. The 30-foot lift range accommodates multi-story vertical travel in a single continuous chain pull, making it practical for low-headroom or high-bay settings alike. It is sold as an individual unit.

Key Features

• 1-ton rated load capacity with a 30-foot lift range
• Integrated overload protection prevents loading beyond rated capacity
• Manual chain operation requires no electrical power source
• Portable design at 52.6 pounds supports field and shop use
• Single-unit packaging for straightforward procurement and deployment

Compatibility

Designed as an OEM-style manual chain hoist for overhead lifting applications requiring a 1-ton capacity and 30-foot lift height. Verify that the supporting structure, trolley, or beam clamp is rated for the combined weight of the hoist and maximum intended load before installation.

Installation Notes

Installation and operation should be performed by qualified riggers or mechanics familiar with applicable ASME B30.16 standards for overhead hoists. Before mounting, confirm that the supporting structure exceeds the rated load capacity with an appropriate safety factor. Inspect the hook latch, load chain, and body for damage before each use. Never side-load the hook or exceed the rated 1-ton working load limit.

Technical Specifications

• Load Capacity: 1 ton
• Lift Height: 30 feet
• Overload Protection: Yes
• Weight: 52.6 pounds
• UPC: 731325171037

Standard Information

• Brand: JET
• Manufacturer Part Number: 203130
