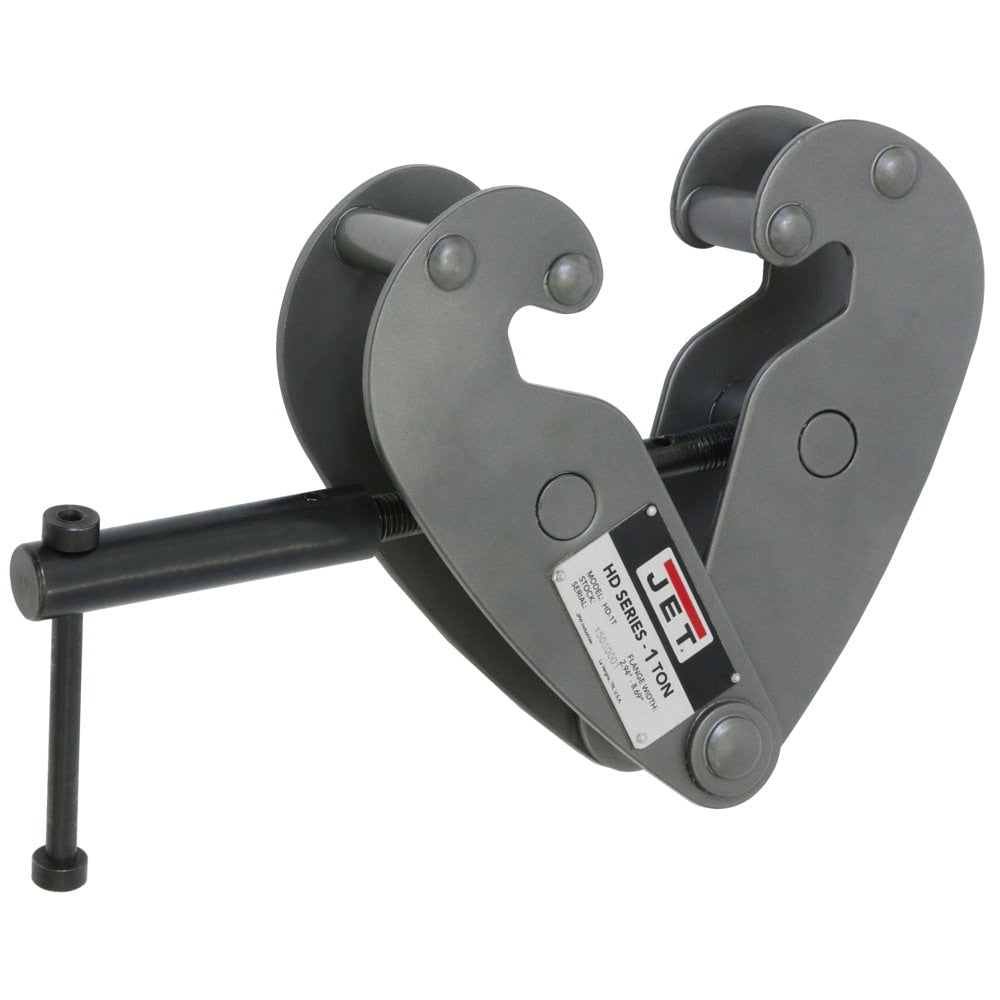

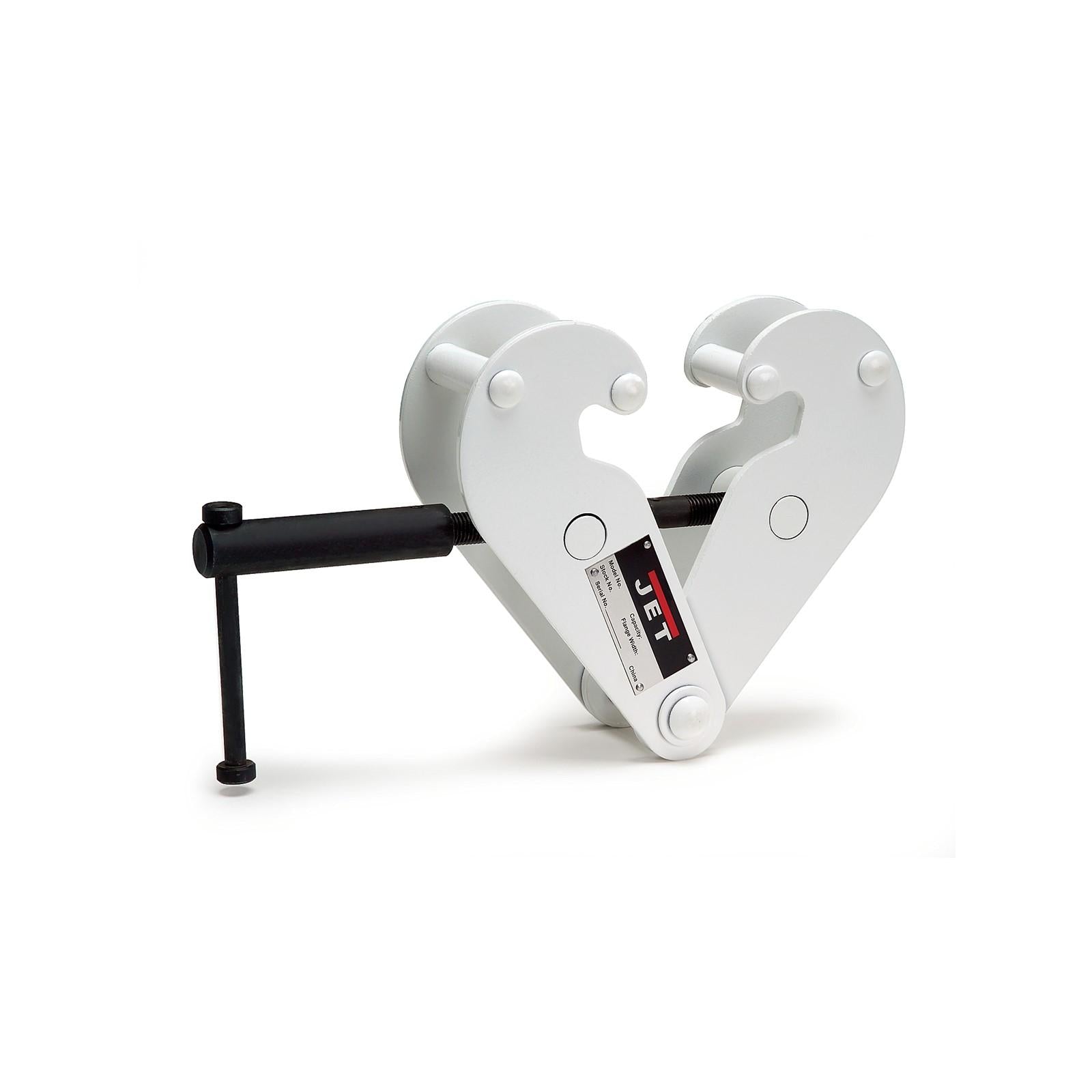

Jet 202710 hd-1t, 1 ton heavy-duty beam clamp

Product Description

The JET 202710 HD-1T is a 1 Ton Heavy-Duty Beam Clamp. The clamp jaw is designed to distribute the load away from the beam flange. It adjusts easily for a wide range of standard H or I beams. The welded all-steel frame has a powder coat finish for durability and protection. Complies with ANSI / ASME B30.17 and B30.20 standards.

• Heavy-Duty Beam Clamp
• 1 Ton Capacity
• Welded all-steel frame and powder coat finish

Product Highlights

The JET HD Series Beam Clamps accommodate a beam up to 12 inches wide. Load tested to 125% of capacity with certificate.

Product Information

Standard Information

• Brand: JET
• Manufacturer Part Number: 202710
• Country of Origin: CN

Technical Specifications

• MPN: 202710
• Manufacturer: Jet
• Brand: JET
• ProductCategory: Material Handling
• UPC: 662755898006
• Type: Beam Clamp
• Series: HD
• Material: Steel
• Operation: Manual
• Width: 3-3/4 in
• Height: 6-11/16 in
• Length: 16-15/16 in
• Beam Width: 2-15/16 to 8-11/16 in
• Package Quantity: 1
• Assembly Required: No
• Flange Width: 3 to 8-2/3 in
• Weight Capacity: 2200 lbs
• Max Flange Thickness: 8.7 in
• Certifications: ANSI / ASME B30.17 and B30.20
• Capacity (Lbs.): 2200
• Load Capacity (Metric Tons): 1
• Load Capacity (Tons): 1
• Maximum Beam Flange Width (In.): 8-2/3
• Minimum Beam Flange Width (In.): 3
• Model Number: HD-1T
• Prop 65: Cancer and Reproductive Harm
