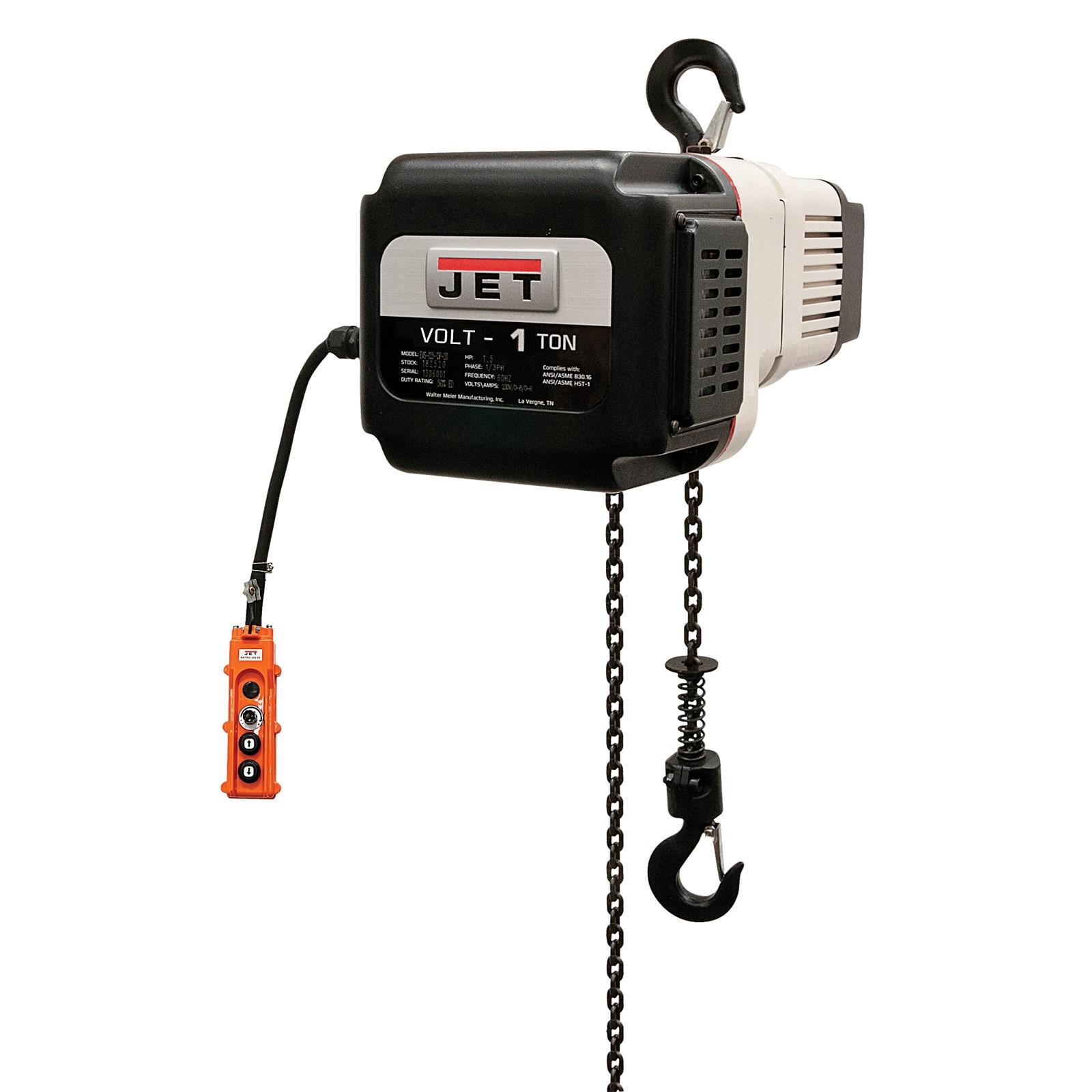

Jet 180121 Electric Chain Hoist 1 Ton 460V 20 Ft

Product Description

The JET 180121 is a 1-ton electric chain hoist designed for three-phase, 460-volt power systems. It provides a 20-foot lift range and is built for overhead lifting in industrial and commercial environments. Licensed electricians and rigging professionals handle installation and commissioning. The unit weighs 98 pounds, reflecting a rugged construction suited for sustained duty cycles in demanding shop, warehouse, and manufacturing applications. It is part of the JET VOLT series of powered hoists, engineered to deliver consistent lift performance at rated capacity.

This hoist is intended for three-phase electrical service at 460 volts, making it appropriate for heavy industrial facilities, fabrication shops, and commercial maintenance bays where three-phase power is available at the drop point. The 20-foot lift height suits standard bay heights found in most mid-scale production and service environments. Installation requires a properly rated overhead beam, trolley, or monorail structure capable of supporting the hoist weight plus rated load.

Key Features

• 1-ton (2,000-pound) rated lift capacity
• Three-phase, 460-volt power input for industrial electrical systems
• 20-foot lift range for standard industrial bay heights
• Electric chain drive for controlled, repeatable vertical movement
• 98-pound hoist body weight for reference when sizing support structure

Compatibility

Designed as an OEM-style electric chain hoist for overhead lifting applications on three-phase, 460-volt industrial power systems with a compatible beam, trolley, or monorail mounting structure.

Installation Notes

Installation must be performed by a qualified electrician in accordance with NEC requirements for three-phase motor circuits, including proper overcurrent protection and grounding. De-energize and lock out the circuit before making any electrical connections or performing service on the unit. The overhead support structure must be rated for the combined weight of the hoist and the maximum suspended load before lift operations begin. A load test at rated capacity should be completed prior to placing the hoist in regular service.

Technical Specifications

• Lift Capacity: 1 ton (2,000 pounds)
• Power Supply: 3-phase, 460 volts
• Lift Height: 20 feet
• Unit Weight: 98 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 180121
