Jet 141172 Pallet Truck 6600 Lb 20.5x48 in Steel Frame

Product Description

The JET 141172 is a manual pallet truck rated for loads up to 6600 pounds, built for warehouse, dock, and floor-level material handling operations. The PTW-2048A features a heavy-duty steel frame with fork dimensions of 20.5 inches by 48 inches, making it a standard fit for most wood and plastic pallets. Its lowered height of 2.95 inches allows forks to slide cleanly under low-clearance pallets, and its maximum raised height of 7.5 inches provides adequate lift for load transport and positioning. This unit weighs 140 pounds and is suited for use by warehouse staff, receiving crews, and trades professionals moving materials on flat surfaces.

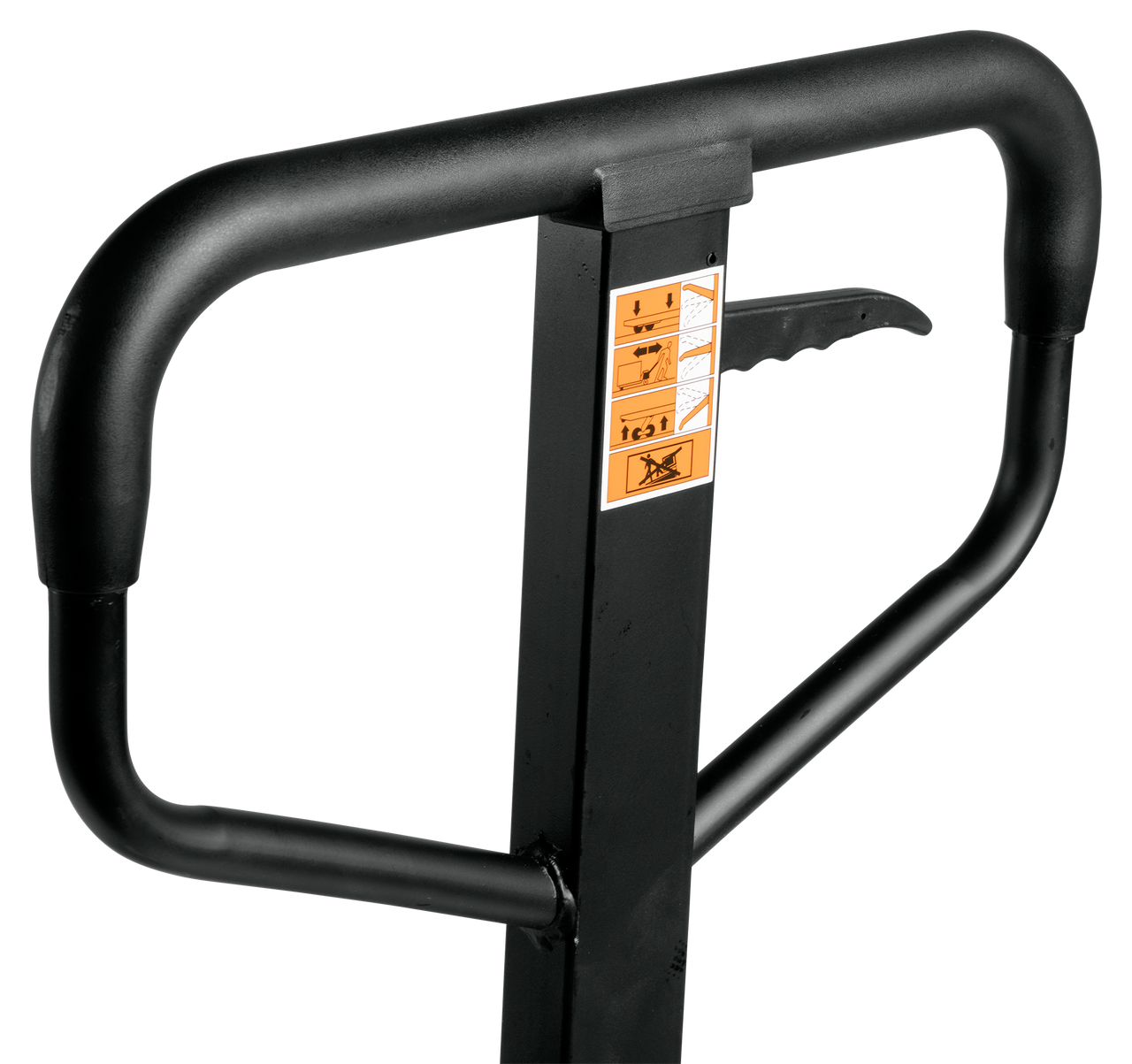

The JET 141172 is designed for general-purpose pallet transport in industrial, commercial, and light manufacturing environments. It performs in loading docks, stockrooms, retail back-of-house areas, and job site staging zones where a powered lift truck is not practical or necessary. The compact fork width of 20.5 inches allows entry into standard pallet openings, while the 48-inch fork length provides stable load support across the full pallet depth. This truck is operated by one person using the integrated hydraulic hand pump and tiller handle.

Key Features

• 6600 lb rated load capacity for heavy pallet loads
• Heavy-duty steel frame construction for durability under repeated use
• Lowered fork height of 2.95 inches for easy access under low-profile pallets
• Fork dimensions of 20.5 inches by 48 inches fit standard pallet openings
• Load wheel size of 2-7/8 by 3-11/16 inches for stable rolling under load
• Steer wheel size of 6-1/4 by 2 inches for smooth directional control

Compatibility

Designed as a standard manual pallet truck for use with wood and plastic pallets in warehouse, dock, and industrial material handling applications.

Installation Notes

No installation is required for this unit. Before use, inspect the hydraulic system and tiller handle for proper operation. Use on flat, stable surfaces only — do not operate on inclines or uneven flooring. Periodic hydraulic fluid inspection and load wheel checks should be performed per the manufacturer service interval recommendations.

Technical Specifications

• Capacity: 6600 pounds
• Fork Dimensions: 20.5 inches x 48 inches
• Lowered Height: 2.95 inches
• Maximum Raised Height: 7.5 inches
• Overall Dimensions: 63 inches x 20.5 inches x 48 inches
• Load Wheel Size: 2-7/8 x 3-11/16 inches
• Steer Wheel Size: 6-1/4 x 2 inches
• Weight: 140 pounds
• Gross Weight: 156 pounds
• Frame Material: Steel

Standard Information

• Brand: JET
• Manufacturer Part Number: 141172
