Jet 140778 Double Scissors Lift Table 770 Lb Capacity

Product Description

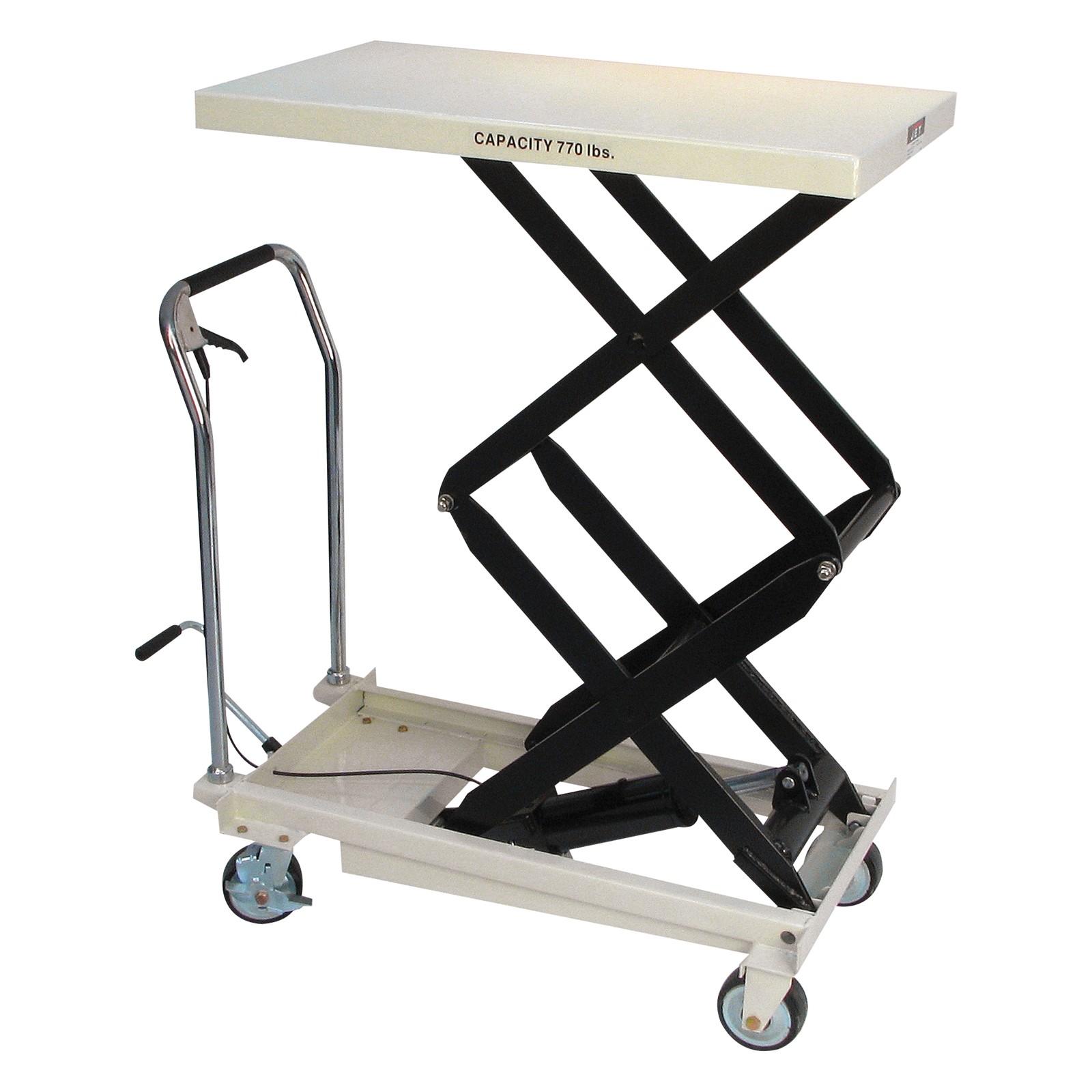

The JET 140778 is a double-scissors lift table engineered for lifting, positioning, and transporting heavy materials in shop, factory, warehouse, and light industrial environments. Built on a heavy-duty steel frame with a steel table surface, it reaches a maximum height of 51.125 inches and handles loads up to 770 pounds. A quick-lift pump mechanism allows operators to raise the platform efficiently, reducing manual effort and minimizing the ergonomic risk of repetitive heavy lifting on the job site.

This lift table is suited for industrial and commercial facilities where workers need to stage, position, or move heavy components at variable working heights. Typical applications include machine shops, distribution centers, maintenance bays, and manufacturing floors. It provides an ergonomic alternative to manual lifting, helping reduce back strain for technicians and warehouse personnel who handle bulky or dense materials throughout a shift.

Key Features

• Double-scissors design extends to a maximum height of 51.125 inches
• 770-pound load capacity supports heavy industrial materials
• Quick-lift pump mechanism for fast, efficient table elevation
• Heavy-duty steel frame and table surface for long-term durability
• Ergonomic design reduces risk of back injury during material handling

Compatibility

Designed as an OEM-style replacement and standard fit for JET double-scissors lift table applications in industrial and commercial material handling environments.

Installation Notes

Lift table setup and deployment should be performed by qualified personnel familiar with material handling equipment. Before loading or servicing, confirm the unit is positioned on a level, stable surface rated for the combined weight of the table and load. Follow all applicable OSHA material handling guidelines and the manufacturer instructions before first use. Do not exceed the rated 770-pound capacity under any operating condition.

Technical Specifications

• Load Capacity: 770 pounds
• Maximum Height: 51.125 inches
• Lift Mechanism: Quick-lift pump
• Frame Material: Steel
• Table Material: Steel
• Scissors Configuration: Double scissors
• Unit Weight: 235 pounds
• UPC: 662755227653

Standard Information

• Brand: JET
• Manufacturer Part Number: 140778
