Jet 131500 Electric Chain Hoist 1 Ton 3ph 230 460V

Product Description

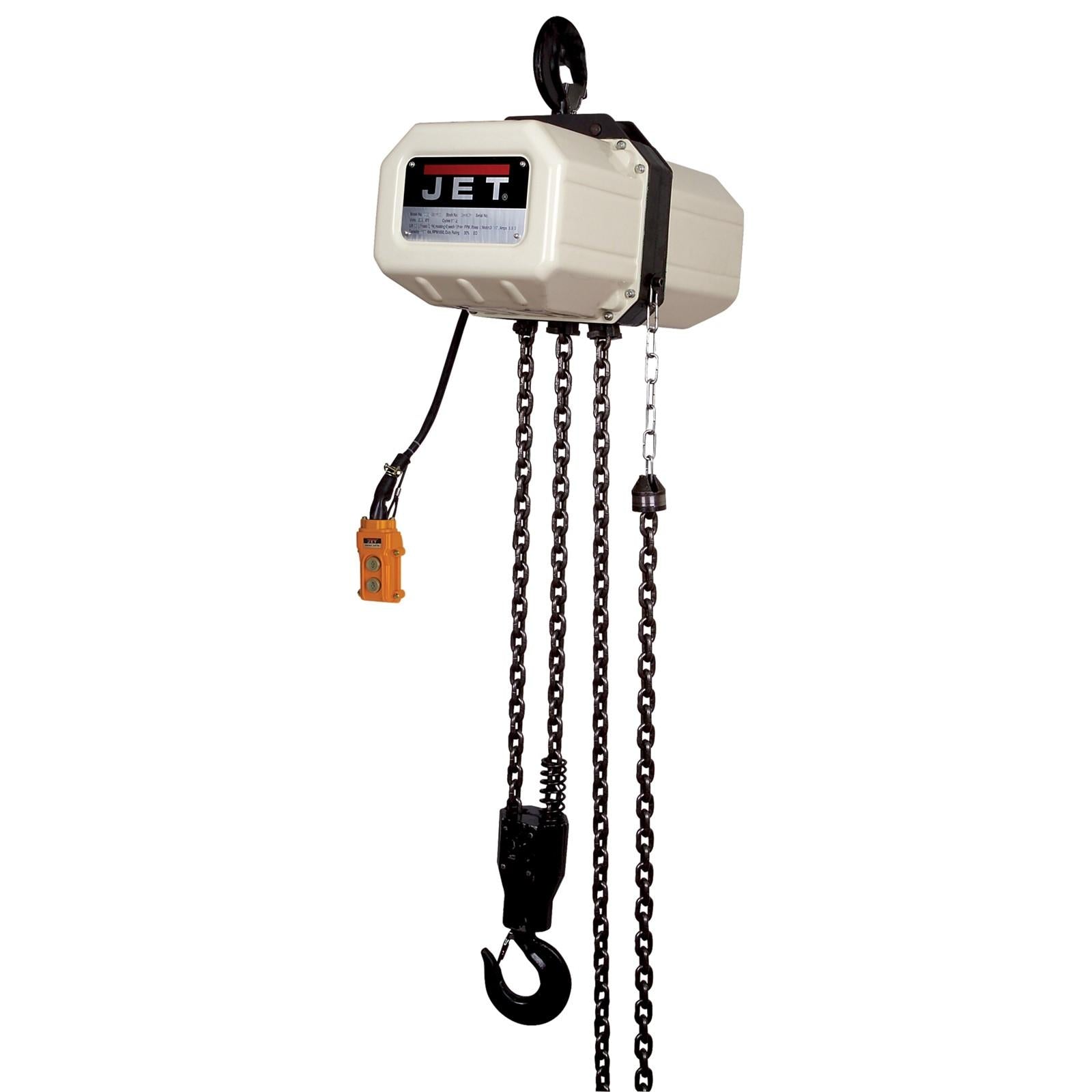

The JET 131500 is a single-speed electric chain hoist rated for 1 ton (2,000 pounds) of lifting capacity, designed for three-phase power operation at 230 or 460 volts, prewired at the factory for 460 volts. It provides a lift height of 105 inches, making it suited for overhead material handling in industrial and commercial settings. The unit ships ready for installation on a standard beam trolley or fixed suspension point. Electricians and millwrights are the typical trades involved in mounting and wiring this hoist to an overhead runway system.

This hoist is intended for industrial overhead lifting applications including manufacturing facilities, warehouses, machine shops, and maintenance bays. The three-phase motor configuration delivers consistent lift performance under repetitive duty cycles common in production environments. The factory 460-volt prewire reduces field wiring time when the supply voltage matches; rewiring to 230 volts is an option where dual-voltage supply is available.

Key Features

• 1 ton (2,000 pound) rated lifting capacity
• 105 inches of lift height for extended vertical range
• Three-phase motor accepts 230 or 460 volt supply
• Factory prewired for 460 volts to simplify installation where 460V service is present
• Single-speed chain hoist design for straightforward overhead lifting operations

Compatibility

Designed as an OEM-style overhead electric chain hoist for use with compatible beam trolleys and runway systems rated for 1 ton capacity in three-phase industrial installations.

Installation Notes

Installation must be performed by a qualified electrician and rigging professional in accordance with ASME B30.16 standards for overhead hoists and applicable NEC requirements for motor branch circuits. Disconnect and lock out all power at the source before making any electrical connections or performing service. Verify the supporting structure, beam, and trolley are rated to handle the hoist weight plus the full rated load before suspending the unit. Do not exceed the rated capacity or modify the load chain.

Technical Specifications

• Lifting Capacity: 1 ton (2,000 pounds)
• Lift Height: 105 inches
• Phase: 3-phase
• Voltage: 230/460 volts
• Factory Prewired Voltage: 460 volts
• Unit Weight: 163 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 131500
