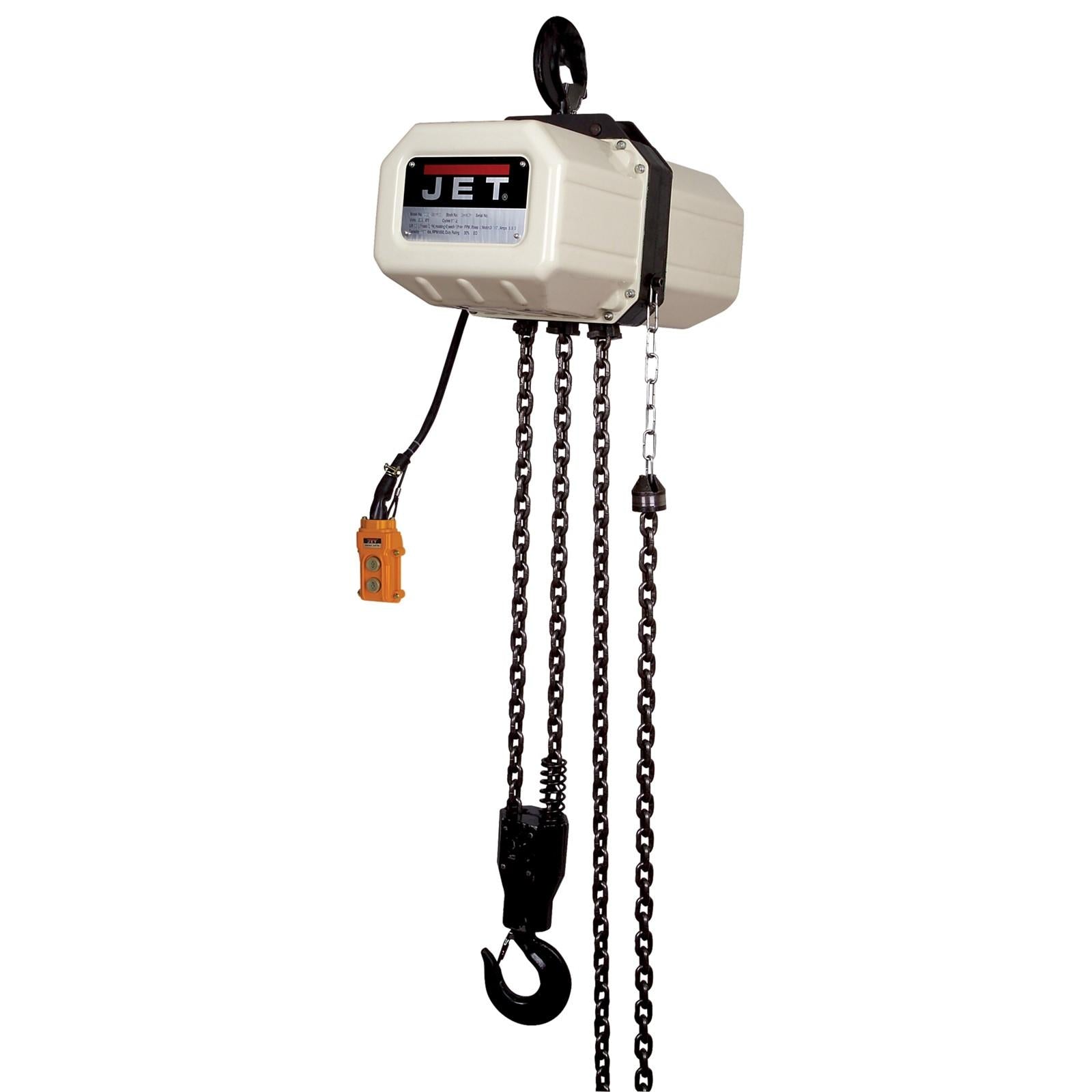

Jet 123200 Electric Chain Hoist 1/2 Ton 3-phase 20 Ft

Brand: JET
SKU: 123200
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$4,061.46
$4,061.46
LTL Delivery

This product weighs 106 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The JET 123200 is a three-phase electric chain hoist rated for 1/2 ton (1,000 pounds) of lifting capacity with a 20-foot lift range. It operates on 230/460 volts and comes prewired for 460V out of the box, simplifying installation in industrial and commercial facilities. Designed for overhead material handling, this unit suits applications where a reliable powered hoist is needed for repetitive or heavy lifts. At 106 pounds, the hoist is a substantial unit intended for permanent or semi-permanent overhead installation by qualified riggers or millwrights.

The JET 123200 is suited for industrial facilities, manufacturing floors, warehouses, and mechanical rooms where overhead lifting of loads up to 1/2 ton is required. The three-phase motor configuration makes it appropriate for commercial and light industrial environments already served by three-phase electrical service. The 20-foot lift height accommodates standard bay heights found in most shop and production environments.

Key Features

  • 1/2 ton (1,000 lb) rated lifting capacity
  • 20-foot lift range for standard industrial bay heights
  • Three-phase motor for smooth, consistent power delivery
  • Dual voltage capability: 230/460V with factory prewiring at 460V
  • Self-contained unit at 106 pounds for overhead mounting

Compatibility

Designed as an OEM-style overhead electric chain hoist for three-phase industrial and commercial lifting applications where 230/460V service is available.

Installation Notes

Installation should be performed by a qualified electrician and/or certified rigger in accordance with ASME B30.16 standards for overhead hoists and applicable NEC requirements for three-phase motor circuits. Verify that the mounting structure, beam, or trolley is rated to support the combined weight of the hoist and maximum intended load before energizing. Confirm the facility supply voltage matches the prewired configuration before connecting; rewiring from 460V to 230V requires following the manufacturer wiring diagram. Disconnect and lock out all power before performing any service, inspection, or chain maintenance.

Technical Specifications

  • Lifting Capacity: 1/2 ton (1,000 lb)
  • Lift Height: 20 feet
  • Phase: 3-Phase
  • Voltage: 230/460V
  • Prewired Voltage: 460V
  • Unit Weight: 106 pounds
  • UPC: 662755906282

Standard Information

  • Brand: JET
  • Manufacturer Part Number: 123200
