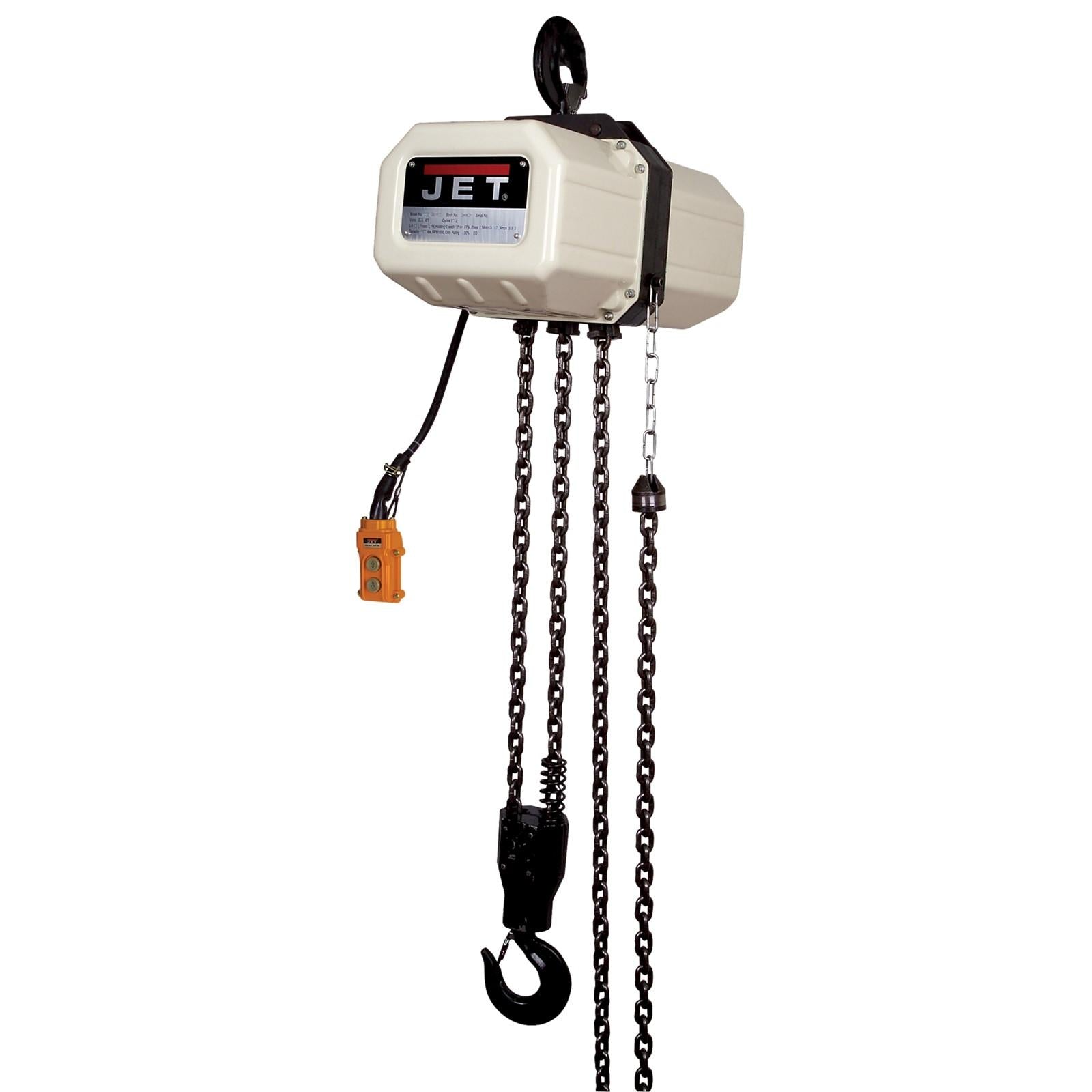

Jet 123150 Electric Chain Hoist 0.5 Ton 3-phase 15 Ft

Product Description

The JET 123150 is a 1/2-ton electric chain hoist designed for three-phase industrial lifting applications. It delivers a maximum lift height of 15 feet and operates on a dual-voltage 230/460-volt power supply, prewired at 460 volts from the factory. Rated capacity is 1,000 pounds. The unit weighs 104 pounds, reflecting a robust construction suited to demanding shop, warehouse, and manufacturing environments. Installation and operation are handled by qualified electricians or millwrights familiar with three-phase motor wiring and overhead lifting equipment.

This hoist is suited for fixed-station overhead lifting in industrial and commercial settings such as machine shops, fabrication facilities, automotive service bays, and warehouses. The prewired 460-volt configuration simplifies commissioning in facilities already running 460-volt three-phase service, while the 230/460-volt dual-voltage motor allows rewiring to 230 volts where the application requires it. The 15-foot lift range makes it appropriate for standard ceiling-height bays and mezzanine loading points.

Key Features

• 1/2-ton (1,000 lb) rated lifting capacity for light-to-medium industrial loads
• Three-phase motor for smooth, efficient operation under continuous duty cycles
• Dual-voltage 230/460-volt motor prewired at 460 volts from the factory
• 15-foot maximum lift height suits standard shop and warehouse bay heights
• Unit weight of 104 pounds indicates heavy-duty steel construction

Compatibility

Designed as an OEM-specification three-phase electric chain hoist for industrial overhead lifting systems requiring a 1/2-ton capacity unit with 230/460-volt three-phase power.

Installation Notes

Installation should be performed by a licensed electrician and a qualified rigging professional in accordance with NFPA 70 (NEC) and applicable ASME B30.16 overhead hoist standards. Disconnect and lock out all power at the panel before making any electrical connections. Verify that the beam, trolley, or mounting structure is rated for the combined weight of the hoist and its maximum intended load before mounting. Do not exceed the rated 1/2-ton capacity.

Technical Specifications

• Lifting Capacity: 0.5 ton (1,000 lb)
• Phase: 3-Phase
• Voltage: 230/460 volts
• Factory Prewired Voltage: 460 volts
• Maximum Lift Height: 15 feet
• Unit Weight: 104 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 123150
