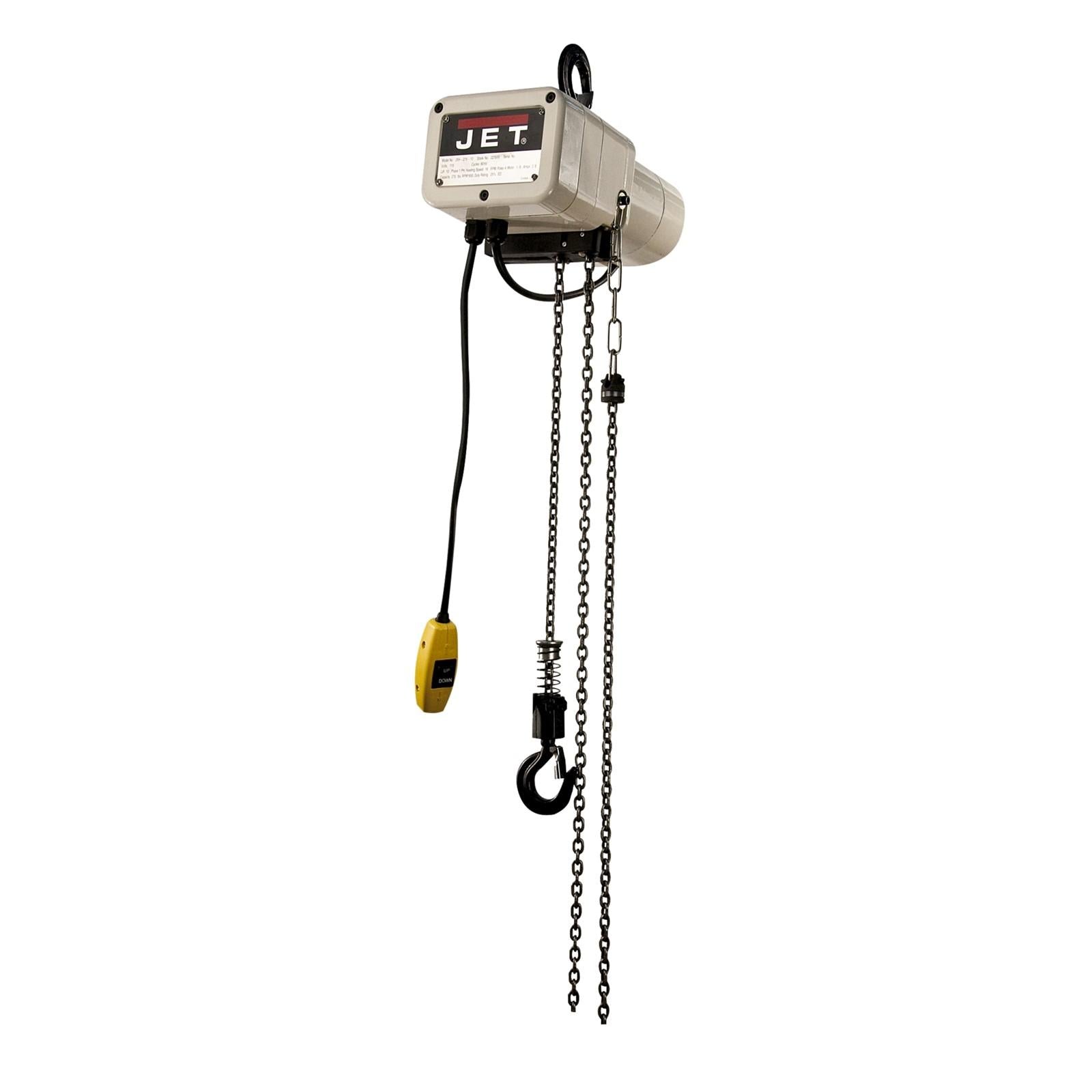

Jet 110520 Electric Chain Hoist 550 Lb 20 Ft 115V

Product Description

The JET 110520 is a single-phase electric chain hoist designed for lifting and positioning loads in shop, garage, and light industrial environments. Sold under the JET model designation JSH-550-20, this unit delivers 550 lb (1/4 ton) of rated lifting capacity with a 20-foot lift height and operates on standard 115-volt single-phase power. Licensed electricians and millwrights commonly install overhead hoists of this type, and the unit suits applications where a hardwired or plug-in 115V supply is already present. The compact electric drive eliminates manual chain-pulling effort, making it a practical addition to small engine shops, fabrication bays, and maintenance facilities.

The JET 110520 is intended for residential garages, small commercial shops, and light industrial bays where a 1/4-ton capacity overhead lift is sufficient. A 20-foot lift range accommodates standard ceiling heights found in most one- and two-story structures. The 115-volt power requirement means the unit can run from a standard single-phase circuit without a dedicated transformer or step-down converter, simplifying installation in existing shop environments.

Key Features

• 550 lb (1/4 ton) rated lifting capacity for light industrial and shop use
• 20-foot lift height accommodates typical residential and commercial bay ceiling heights
• 115-volt single-phase operation runs on standard shop power without a transformer
• Electric chain drive reduces operator fatigue compared to manual chain falls
• Sold as a complete hoist unit — one piece per order

Compatibility

Designed as an OEM-style overhead electric chain hoist suitable for use with compatible beam trolleys and I-beam mounted runway systems rated for 1/4-ton or greater capacity.

Installation Notes

Electric chain hoists must be installed by a qualified rigger, electrician, or millwright in accordance with ASME B30.16 and applicable local electrical codes. De-energize and lock out the circuit before making any electrical connections. Verify that the supporting beam, trolley, and mounting hardware are rated to exceed the hoist's maximum working load before placing the unit in service. Never exceed the rated lifting capacity or use the hoist to move loads horizontally without a properly rated trolley system.

Technical Specifications

• Lifting Capacity: 550 lb (1/4 ton)
• Lift Height: 20 feet
• Voltage: 115 volts
• Phase: Single-phase
• Model Designation: JSH-550-20
• UPC: 662755100932

Standard Information

• Brand: JET
• Manufacturer Part Number: 110520
