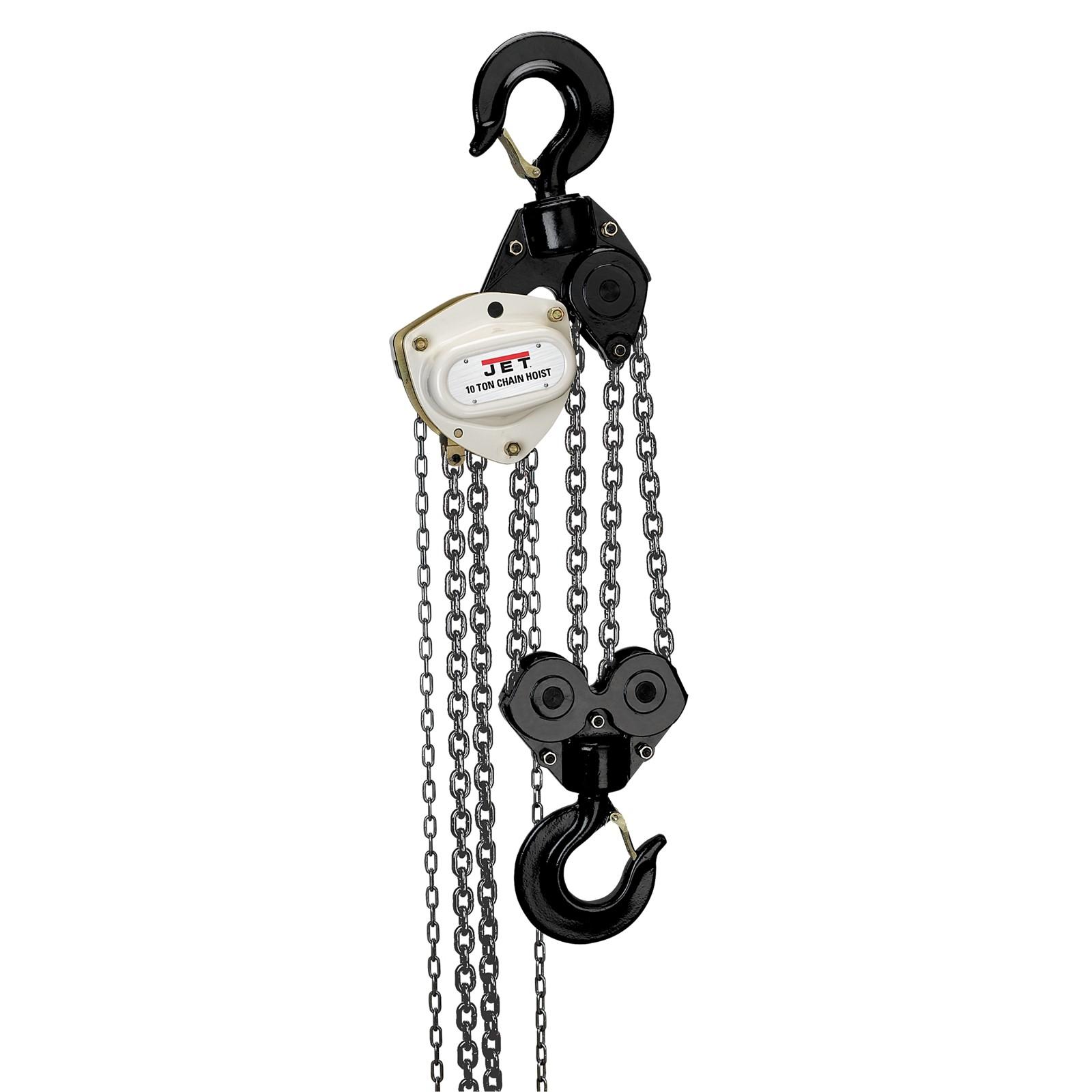

Jet 108100 Chain Hoist 10 Ton 10 Foot Lift

Product Description

The JET 108100 is a heavy-duty manual chain hoist rated for 10 tons of lifting capacity with a 10-foot lift range and built-in overload protection. Designed for industrial and commercial rigging applications, this hoist provides controlled, reliable vertical load movement in shops, warehouses, fabrication facilities, and construction environments. The overload protection mechanism helps prevent chain and structural damage by limiting load beyond rated capacity. At 196 pounds, this is a substantial piece of lifting equipment intended for permanent or semi-permanent overhead installation by qualified riggers or millwrights.

This chain hoist suits demanding lifting tasks where a 10-ton capacity is required, such as engine and machinery removal, structural steel placement, and heavy component positioning. It is appropriate for use in automotive shops, steel fabrication shops, manufacturing plants, and similar industrial environments where overhead rigging is a routine part of operations. Installation requires a properly rated overhead beam, trolley, or support structure capable of handling the rated load plus hoist weight.

Key Features

• 10-ton rated lifting capacity for heavy industrial load handling
• 10-foot lift range provides vertical travel suited to standard shop and warehouse bay heights
• Built-in overload protection limits stress on chain and support structure
• Manual chain-pull operation requires no electrical power source
• Robust construction supports use in demanding shop and field environments

Compatibility

Designed as an OEM-style manual chain hoist for use with compatible overhead beam trolleys and rigging support structures rated for 10-ton loads.

Installation Notes

Installation must be performed by a qualified rigger or millwright familiar with overhead lifting equipment and applicable ASME B30.16 standards for overhead hoists. Before installation, verify that the supporting structure, beam, and any trolley or hook assembly are rated at or above the hoist capacity. Never exceed the rated load limit, and inspect the hoist, chain, and load hook prior to each use. Perform all rigging work with the load path clear of personnel.

Technical Specifications

• Lifting Capacity: 10 tons
• Lift Height: 10 feet
• Overload Protection: Yes
• Weight: 196 pounds
• UPC: 662755995392

Standard Information

• Brand: JET
• Manufacturer Part Number: 108100
