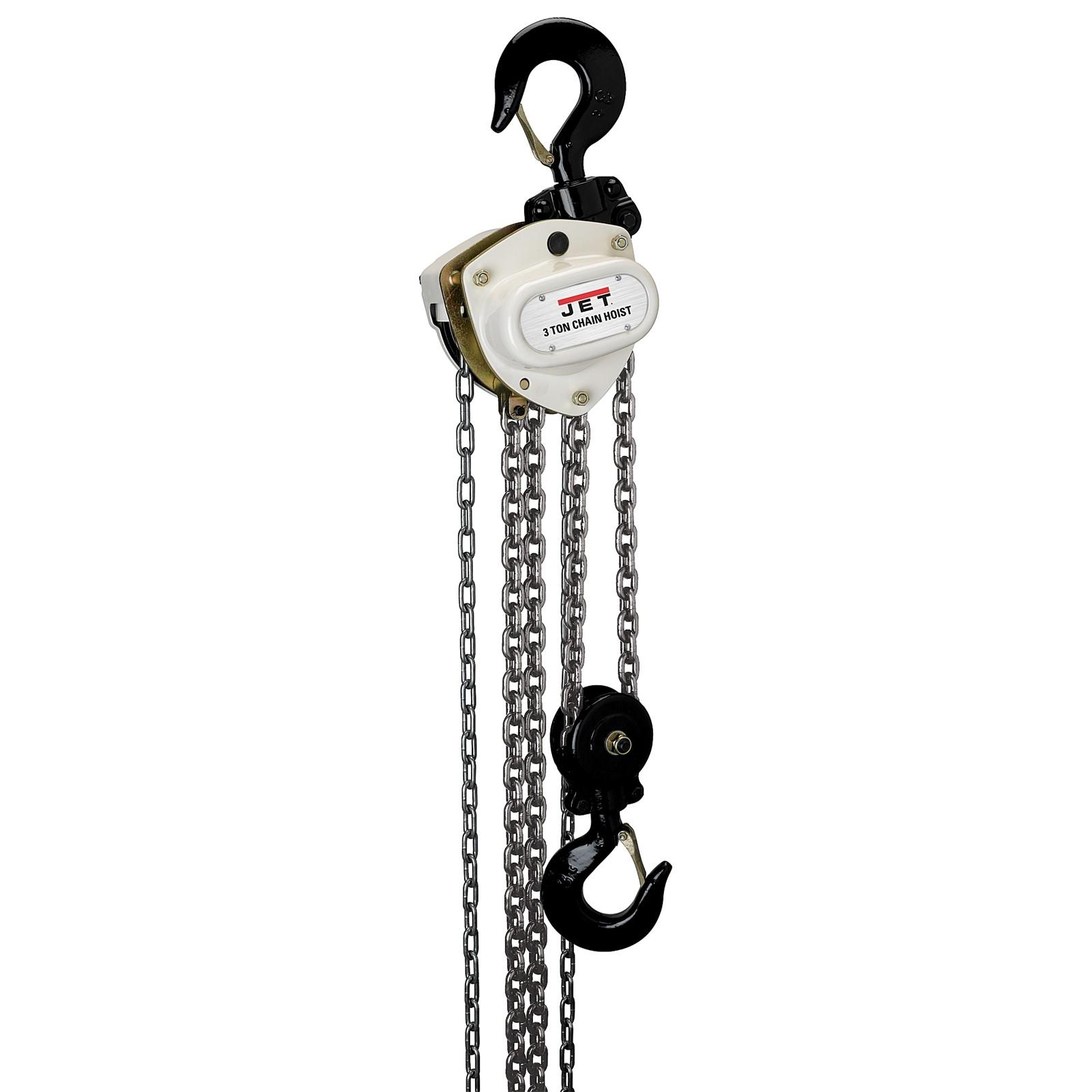

Jet 106100 Chain Hoist 3 Ton 10 Ft Overload Protection

Product Description

The JET 106100 is a manual chain hoist rated for 3-ton capacity with a 10-foot lift range and built-in overload protection. Designed for heavy-duty lifting in industrial, mechanical, and trade service environments, this hoist is suited for engine pulling, equipment positioning, and overhead rigging tasks in shop or field settings. The overload protection mechanism helps prevent chain failure and structural overload during lifts. At 55 pounds, it is a substantial unit intended for fixed or portable overhead support structures rated for the load. Licensed riggers, millwrights, and heavy equipment technicians are the primary installers and operators.

The JET 106100 is used in automotive shops, fabrication facilities, equipment service bays, and construction staging areas. It is appropriate for any overhead lifting application requiring a 3-ton rated manual chain hoist with a 10-foot lift travel. The overload protection feature makes it particularly useful in applications where load weights may approach the rated capacity.

Key Features

• 3-ton rated lift capacity for heavy-load positioning and rigging
• 10-foot lift range accommodates a wide variety of overhead lift scenarios
• Built-in overload protection reduces risk of chain overload and structural failure
• Manual chain operation requires no electrical power source
• Sold as a single unit with no minimum quantity requirement beyond one

Compatibility

Designed as an OEM-style manual chain hoist for use with overhead beam trolleys, gantry cranes, and fixed overhead support structures rated to the appropriate working load limit.

Installation Notes

Installation and operation should be performed by qualified riggers or tradespeople familiar with overhead lifting equipment and applicable ASME B30 standards. Inspect the mounting structure to confirm it is rated for the full working load limit before attaching the hoist. Never exceed the stated load capacity, and verify the overload protection device is functioning before each lift cycle. Remove load completely and de-tension the chain before performing any maintenance or disassembly.

Technical Specifications

• Lift Capacity: 3 ton
• Lift Height: 10 feet
• Overload Protection: Yes
• Weight: 55 pounds
• UOM: Each
• UPC: 662755995453

Standard Information

• Brand: JET
• Manufacturer Part Number: 106100
