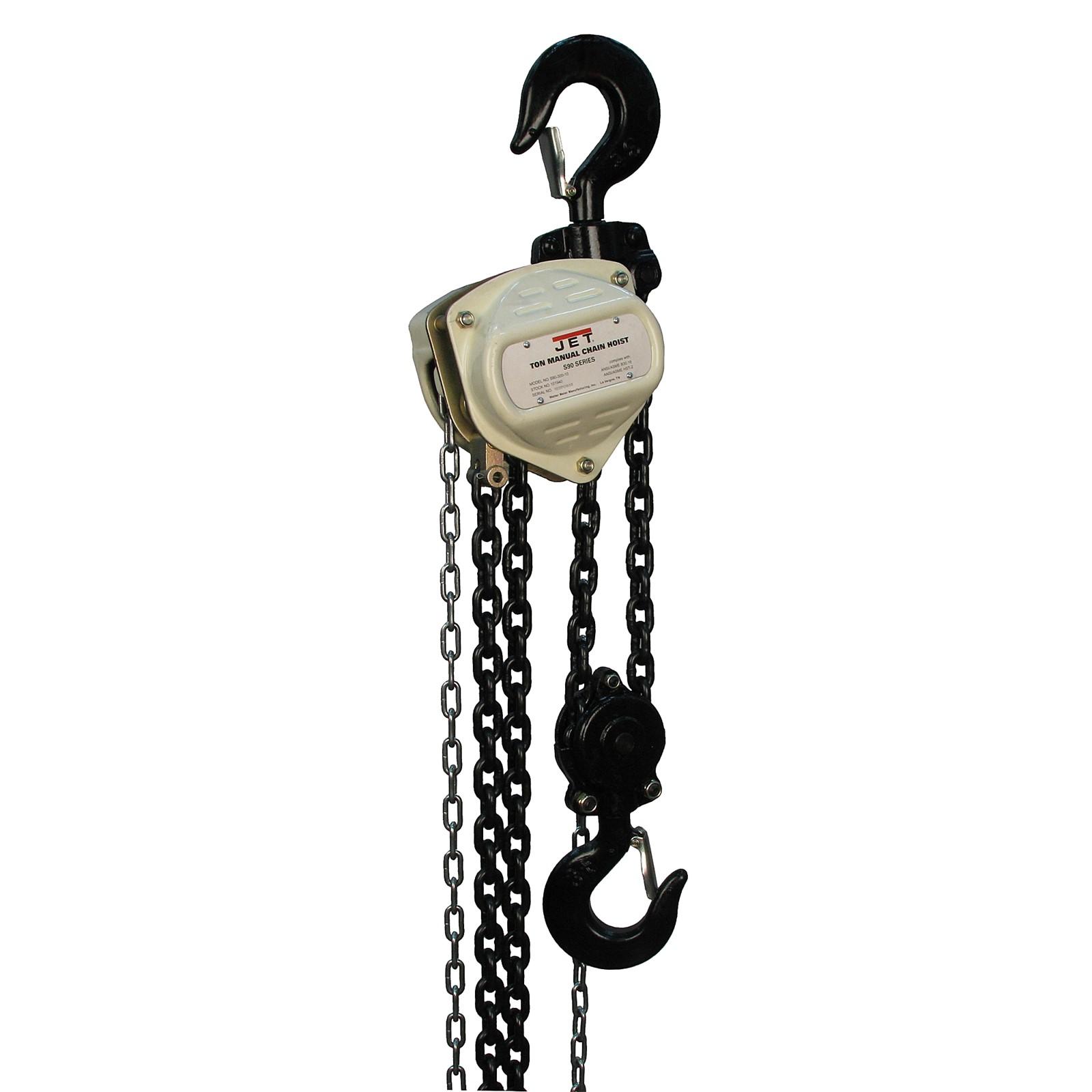

Jet 101953 Hand Chain Hoist 5 Ton 30 Foot Lift

Product Description

The JET 101953 is a hand chain hoist rated for 5-ton lifting capacity with a 30-foot lift range. It is a manually operated overhead lifting device used to raise, lower, and position heavy loads in industrial, commercial, and workshop environments. The unit ships at 145.5 pounds, reflecting the robust construction required for heavy-duty chain hoist applications. Rigging professionals, millwrights, and maintenance technicians are the primary installers and operators of this equipment.

This hoist is suited for fixed or portable overhead lifting applications including manufacturing facilities, warehouses, equipment rooms, and fabrication shops. The 5-ton capacity handles heavy machinery, structural components, and large assemblies. The 30-foot lift height accommodates high-bay installations where extended vertical travel is required. It is intended for use with an appropriate overhead beam, trolley, or rigging structure rated for the load.

Key Features

• 5-ton rated lifting capacity for heavy industrial loads
• 30-foot lift range for high-bay and extended-travel applications
• Manual hand chain operation requires no electrical power source
• Substantial 145.5-pound build weight indicates heavy-duty construction
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style hand chain hoist intended for use with compatible overhead beam clamps, trolleys, or fixed suspension points rated to the required load capacity.

Installation Notes

Installation and rigging should be performed by a qualified rigger or millwright familiar with ASME B30.16 standards for overhead hoists. Before installation, verify that the supporting structure, beam, and all rigging hardware are rated for the full working load limit. Never exceed the rated 5-ton capacity, and inspect the chain, hooks, and latch mechanisms before each use. Power down or de-energize any nearby equipment in the work zone before performing overhead lifting operations.

Technical Specifications

• Lifting Capacity: 5 tons
• Lift Height: 30 feet
• Weight: 145.5 pounds
• UPC: 731325219029
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 101953
