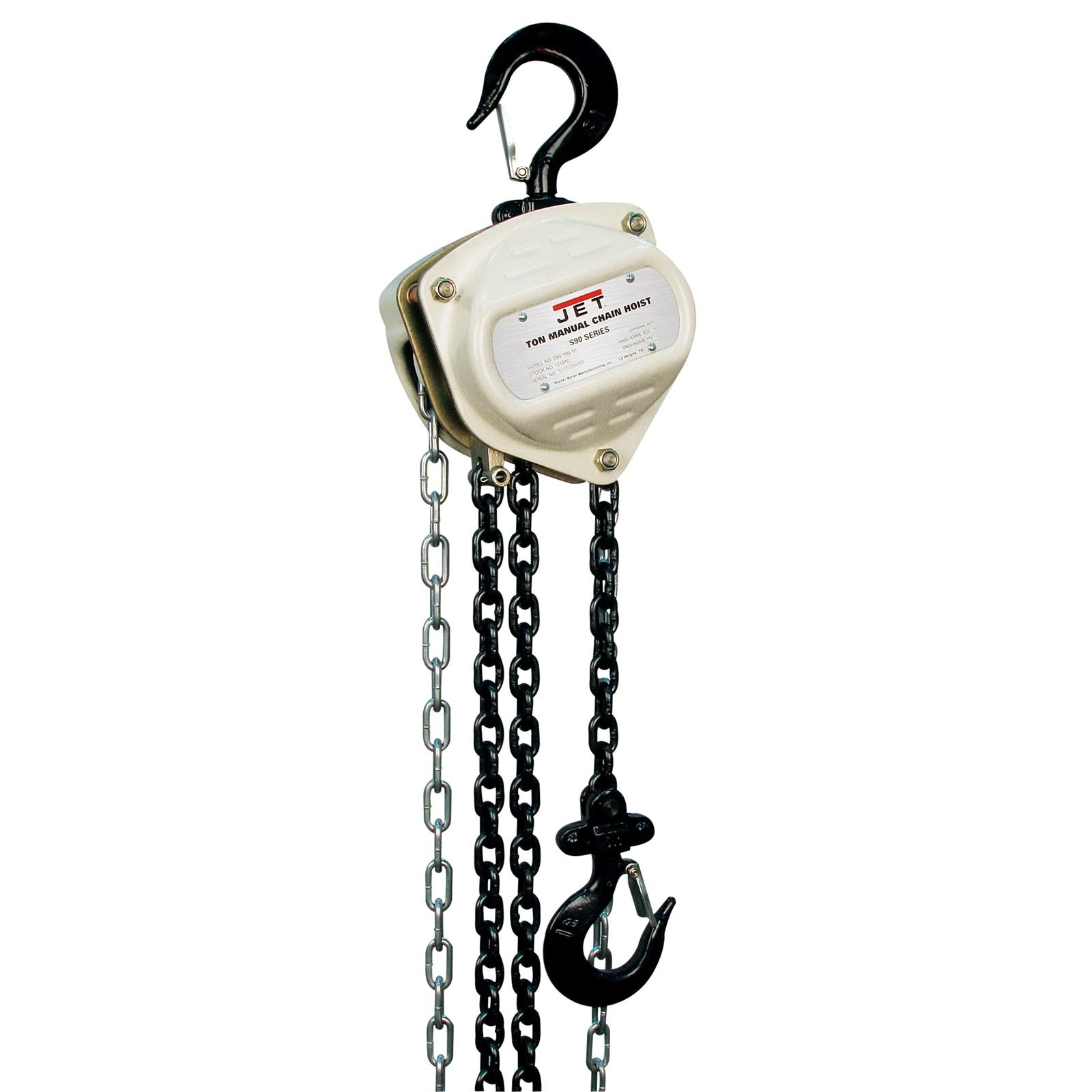

Jet 101923 Chain Hoist 1.5 Ton 30 Inch Lift

Product Description

The JET 101923 is a manual chain hoist rated for 1.5-ton capacity with a 30-foot lift range. Built for industrial and trade applications, this hoist provides reliable overhead lifting in environments where electric hoists are impractical or unnecessary. It is suited for installation on overhead I-beams, gantry cranes, or monorail systems. The unit ships at 68 pounds, reflecting a robust construction appropriate for sustained duty use. Rigging professionals, millwrights, and general contractors are the primary installers for this type of equipment.

This chain hoist is used in construction sites, manufacturing facilities, equipment rooms, and mechanical spaces where controlled overhead lifting is required. The 1.5-ton capacity covers a wide range of mechanical equipment, piping assemblies, and structural components commonly encountered in trade work. The 30-foot lift range accommodates standard ceiling heights found in industrial and commercial buildings.

Key Features

• 1.5-ton rated load capacity for medium-duty overhead lifting
• 30-foot lift range suitable for industrial and commercial ceiling heights
• Manual chain drive operation requires no electrical power source
• Robust construction reflected in 68-pound unit weight
• Each unit sold individually as a complete hoist assembly

Compatibility

Designed as an OEM-style replacement or direct-install manual chain hoist for overhead lifting applications on standard I-beam, gantry, or monorail crane systems.

Installation Notes

Installation should be performed by a qualified rigging professional or millwright familiar with applicable ASME B30 overhead hoisting standards. Before installing or servicing, ensure all load paths and overhead support structures are de-energized or locked out and verified to support the rated load plus hoist weight. Never exceed the rated working load limit of the hoist. Inspect all hooks, chains, and mounting hardware before each use per standard rigging safety protocols.

Technical Specifications

• Capacity: 1.5 ton
• Lift Range: 30 feet
• Weight: 68 pounds
• UPC: 731325218909
• Sold As: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 101923
