Jet 101920 Manual Chain Hoist 1.5 Ton 10 Ft Lift

Product Description

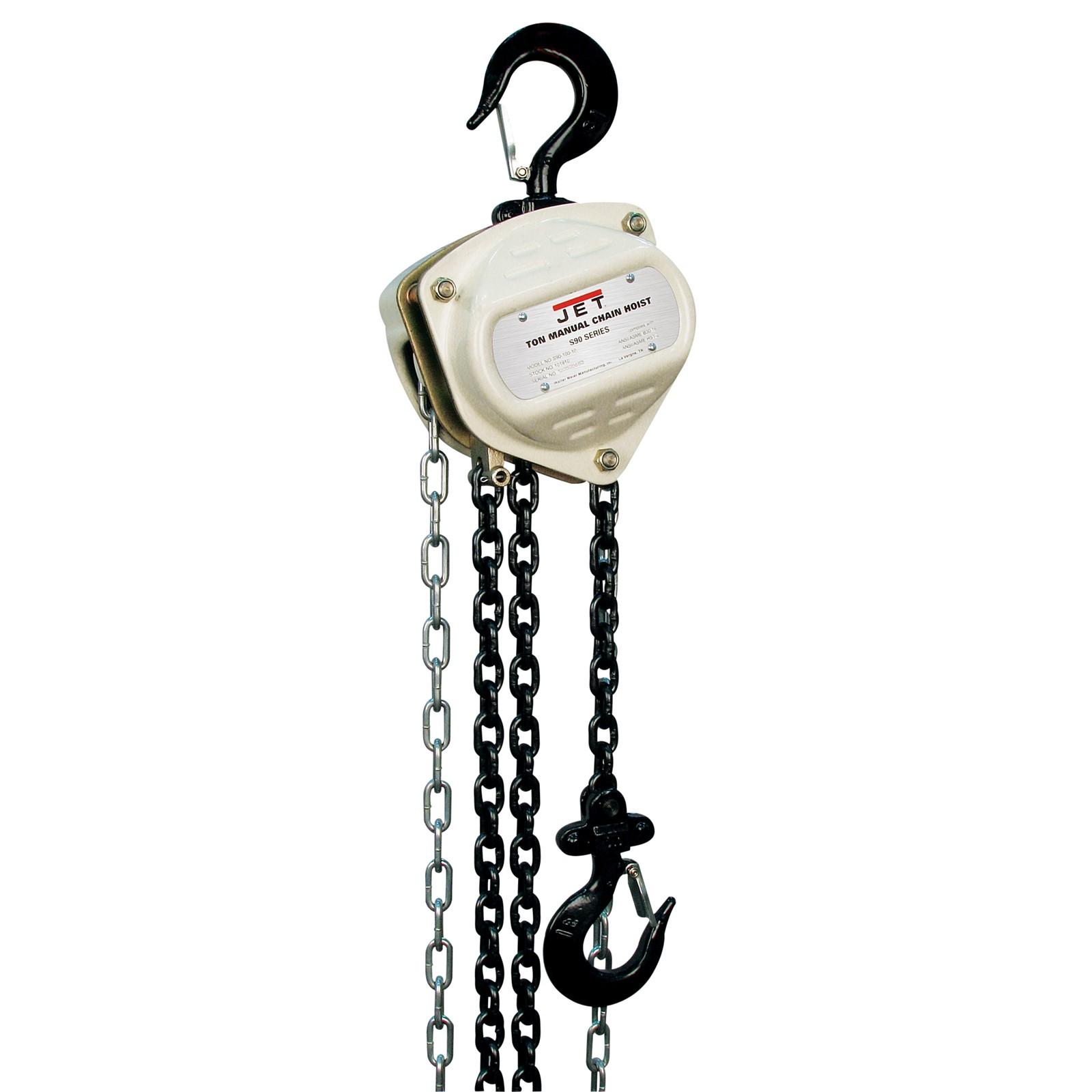

The JET 101920 is a manual chain hoist rated for 1.5 ton (3,000 pound) load capacity with a 10-foot lift range. It is part of the JET S90-150 series and is designed for overhead lifting in shops, warehouses, and light industrial settings. The unit operates without electricity, using a hand-pulled load chain to raise and lower materials. Licensed riggers, millwrights, and maintenance mechanics typically install and operate this type of equipment. At 40.75 pounds, it is a compact unit suited for permanent or temporary overhead rigging applications.

This hoist is used in applications requiring controlled vertical lifting where powered hoists are unavailable or impractical. Typical installations include steel fabrication shops, automotive service bays, equipment rooms, and construction staging areas. It handles loads up to 1.5 tons across a 10-foot lift span, making it well suited for engine pulls, machinery positioning, and material staging in confined or off-grid work areas.

Key Features

• 1.5 ton (3,000 pound) rated load capacity
• 10-foot lift height for extended vertical reach
• Manual chain operation requires no electrical power source
• Compact build at 40.75 pounds for easier rigging and transport
• S90-150 series construction suited for light industrial and shop use

Compatibility

Designed as a standard manual chain hoist for use with compatible overhead beam trolleys, fixed suspension hooks, or I-beam mounted rigging hardware rated for the equivalent or greater working load limit.

Installation Notes

Installation and operation should be performed by a qualified rigger or maintenance professional familiar with overhead lifting equipment and applicable ASME B30.16 standards for overhead hoists. Before installing, verify that the overhead support structure, beam, or anchor point is rated to handle the hoist weight plus the intended load with an appropriate safety factor. Never exceed the rated load capacity, and inspect the load chain, hooks, and latches before each use. Always de-energize or lock out any adjacent powered equipment before performing rigging work in the area.

Technical Specifications

• Load Capacity: 1.5 ton (3,000 pounds)
• Lift Height: 10 feet
• Unit Weight: 40.75 pounds
• UPC: 731325218879

Standard Information

• Brand: JET
• Manufacturer Part Number: 101920
