Jet 101902 Hand Chain Hoist 0.5 Ton 20 Ft Lift

Product Description

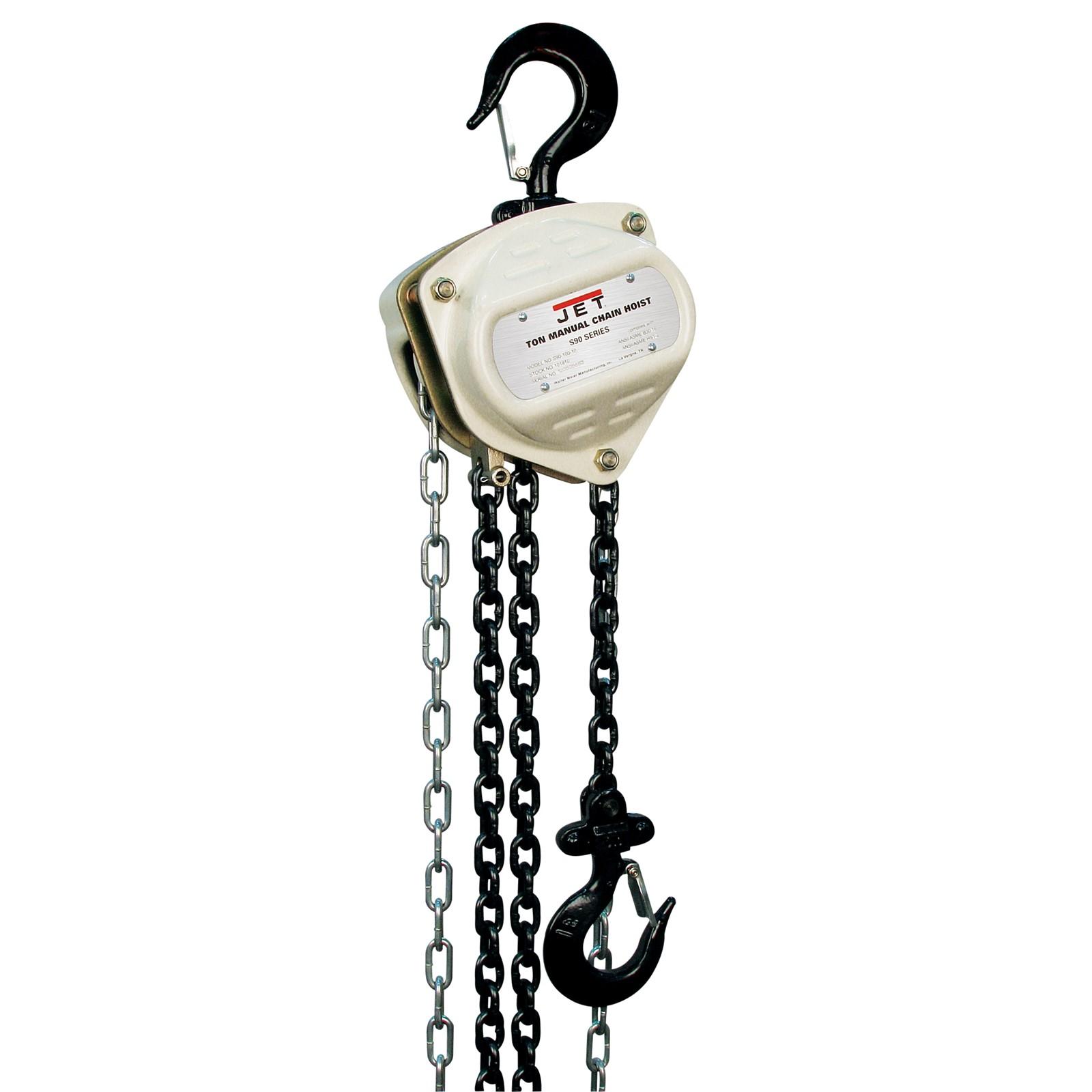

The JET 101902 is a manual hand chain hoist rated for 0.5 ton (1,000 pounds) capacity with a 20-foot lift range. This unit uses operator-pulled hand chain to raise and lower loads through a mechanical load chain drive, making it suitable for overhead lifting in shops, warehouses, construction sites, and industrial maintenance environments. At 30 pounds, it is a portable unit that can be rigged to a trolley, beam clamp, or fixed overhead support. Licensed riggers, millwrights, and maintenance technicians are the typical installers and operators.

The JET 101902 suits general-purpose overhead lifting where a power source is unavailable or impractical. Common applications include equipment positioning, engine removal, structural steel placement, and material staging in fabrication shops or job sites. It is appropriate for both temporary rigging setups and semi-permanent overhead lift stations in light industrial settings.

Key Features

• 0.5 ton (1,000 pound) rated load capacity
• 20-foot lift height provides extended vertical range for high-bay or mezzanine work
• Manual hand chain operation requires no electrical power source
• Self-contained unit weighing 30 pounds for portability between work areas
• Sold individually as a single unit

Compatibility

Designed as an OEM-style manual chain hoist for general overhead lifting applications compatible with standard beam clamps, trolleys, and hook-mount rigging hardware rated for 0.5 ton service.

Installation Notes

Rigging and overhead lifting equipment must be installed and operated by qualified personnel familiar with applicable ASME B30 standards for hoists and rigging. Before installation, verify that the overhead support structure, beam, or trolley is rated to exceed the combined weight of the hoist and the intended load. Never exceed the rated load capacity, and inspect the load chain, hooks, and latches before each use. De-rig and remove from service immediately if any component shows signs of deformation, wear, or damage.

Technical Specifications

• Load Capacity: 0.5 ton (1,000 pounds)
• Lift Height: 20 feet
• Unit Weight: 30 pounds
• UPC: 731325218817
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 101902
