Jet 101200 Hand Chain Hoist 0.25 Ton 10 Ft Lift

Product Description

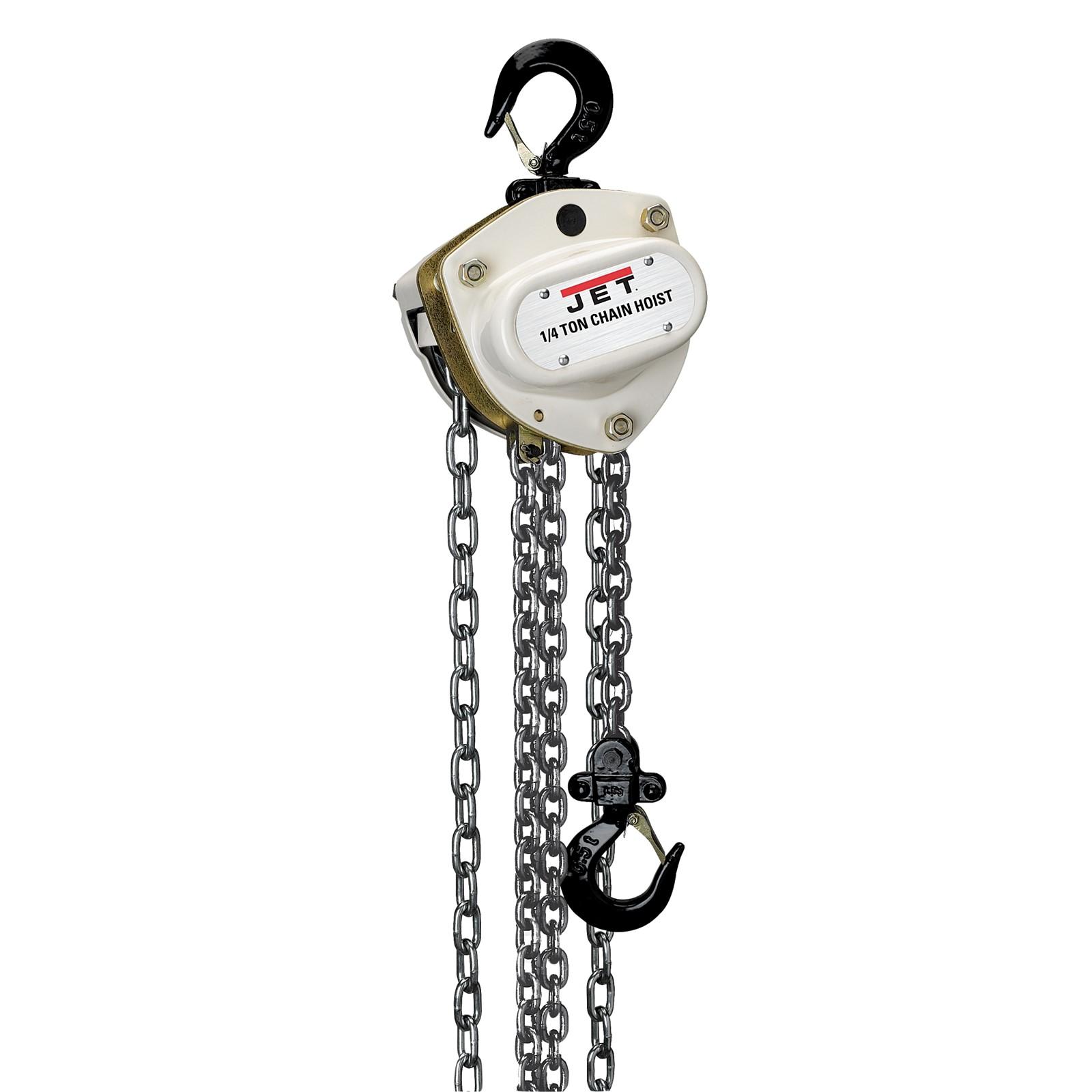

The JET 101200 is a manual hand chain hoist rated at 1/4 ton (500 pounds) with a 10-foot lift range and integrated overload protection. Designed for controlled, precise lifting in shop, maintenance, and light industrial environments, this hoist allows the operator to raise and lower loads using a hand-pulled link chain. The overload protection mechanism prevents the hoist from operating beyond its rated capacity, reducing the risk of equipment damage or dropped loads. Licensed riggers, millwrights, and maintenance technicians typically select this unit for tasks where electric hoists are unnecessary or impractical.

The JET 101200 suits residential garages, small fabrication shops, and light industrial maintenance bays where a compact, portable lifting solution is needed. It is appropriate for suspending loads from structural beams, gantry cranes, or trolley systems rated for the applied load. The 10-foot lift range accommodates a wide range of typical shop lifting scenarios without requiring supplemental chain drops.

Key Features

• 1/4 ton (500 pound) rated load capacity
• 10-foot standard lift range
• Integrated overload protection prevents exceeding rated capacity
• Manual hand chain operation requires no electrical power source
• Compact design suits portable and fixed-mount applications

Compatibility

Designed as an OEM-style manual chain hoist for use with overhead beam trolleys, gantry crane systems, or fixed suspension points rated to support the applied load and hoist weight.

Installation Notes

Installation and rigging should be performed by a qualified rigger or maintenance professional familiar with applicable ASME B30.16 overhead hoist standards. The mounting point, beam, or trolley must be rated to support the combined weight of the hoist and the intended load before use. Inspect the hook latch, load chain, and overload mechanism for damage or wear before each lift. Never exceed the rated working load limit marked on the hoist body.

Technical Specifications

• Load Capacity: 0.25 ton (500 pounds)
• Lift Range: 10 feet
• Overload Protection: Yes
• Operation Type: Manual hand chain
• UPC: 662755103087
• Sold As: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 101200
