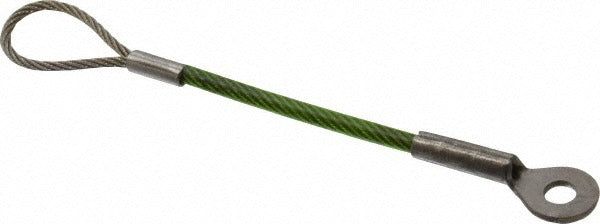

Jergens 890304 Quick Release Pin Lanyard 4 in Ss

Product Description

The JERGENS 890304 is a stainless steel cable lanyard designed to retain quick release pins in industrial and mechanical applications. The lanyard features a loop end on one side and an eye end on the other, providing a secure two-point attachment between the pin and the host assembly. The cable measures 4 inches in overall length with a 1/16-inch bare cable diameter, a nylon coating that brings the coated diameter to 1/8 inch, and a 3/16-inch hole diameter at the eye end. Grade 300 stainless steel construction resists corrosion in wet or outdoor environments. Maintenance technicians, assemblers, and field service personnel install these lanyards to prevent dropped pins during equipment service.

This lanyard is suited for use in manufacturing, material handling, aerospace ground support, and general industrial settings where quick release pins are used on panels, guards, brackets, or tooling fixtures. The nylon coating protects adjacent surfaces from scratching and provides a degree of flexibility in tight clearance areas. It is appropriate for both indoor and outdoor installations where pin retention and tool-drop prevention are required.

Key Features

• Loop and eye end configuration for two-point pin-to-structure attachment
• Grade 300 stainless steel cable for corrosion resistance in wet or outdoor environments
• Nylon-coated cable reduces surface marring and adds flexibility
• 4-inch overall length suits standard panel and guard pin retention tasks
• 3/16-inch hole diameter at eye end for secure anchor-point fit
• 1/16-inch bare cable diameter keeps footprint small in tight assemblies

Compatibility

Designed as a standard-style retention lanyard for quick release pins used in industrial panel, guard, and fixture applications. Confirm hole diameter and cable length requirements against the host assembly before installation.

Installation Notes

Installation is typically performed by maintenance technicians or assemblers using standard hand tools. Thread the eye end through the designated anchor point on the structure and attach the loop end to the quick release pin before the pin is inserted into service. Inspect the cable coating for cuts or abrasion during routine maintenance intervals. Do not exceed the load rating of the associated quick release pin when the lanyard is under tension.
