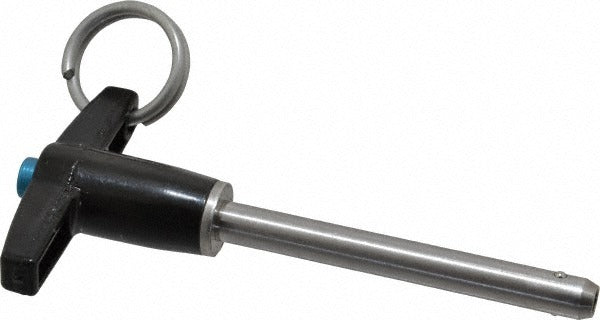

Jergens 801022 Quick-release Pin T-handle 1/4 in 2 in

Product Description

The JERGENS 801022 is a push-button quick-release pin with a T-handle, designed for fast tool-free insertion and removal in structural, mechanical, and industrial assembly applications. The pin body is 17-4 stainless steel with a passivated finish, and the handle is aluminum. It carries a double-shear breaking strength of 9,200 pounds, making it suitable for load-bearing connections that require frequent disassembly. The 440C stainless steel locking balls achieve a Rockwell C40 hardness rating. This pin is installed by mechanical assemblers, maintenance technicians, and military or aerospace MRO personnel working with pinned joints and quick-connect mechanical interfaces.

The 801022 is suited for use in jigs, fixtures, tooling, access panels, and structural assemblies where rapid pin removal without tools is required. Its T-handle provides positive grip in confined or gloved-hand conditions. The pin meets multiple military and aerospace fastener standards, making it appropriate for defense, aerospace, and heavy industrial environments where compliant hardware is specified. The passivated stainless steel construction resists corrosion in wash-down or outdoor service conditions.

Key Features

• Push-button quick-release mechanism allows tool-free pin removal
• T-handle aluminum grip provides positive purchase in confined spaces
• 17-4 stainless steel pin body with passivated finish for corrosion resistance
• 440C stainless steel locking balls at Rockwell C40 hardness
• Double-shear breaking strength rated at 9,200 pounds
• Compliant with AMS-QQ-P-35, MIL-A-8625, MIL-C-5541, MIL-H-6875, and QQ-P-416 standards

Compatibility

Designed as an OEM-style replacement or direct-fit component for pinned mechanical assemblies, jigs, fixtures, and access panel applications requiring a 1/4 inch diameter quick-release pin with a T-handle and 2 inch usable length.

Installation Notes

Installation requires no special tools - the push-button mechanism compresses the locking balls for insertion or withdrawal by hand. Verify that the mating hole diameter and material are compatible with the pin diameter and rated load before installation. Inspect the pin and ball detent mechanism for wear or damage before each use in load-bearing applications. Follow applicable facility safety procedures and equipment lockout protocols before servicing pinned assemblies under load.
