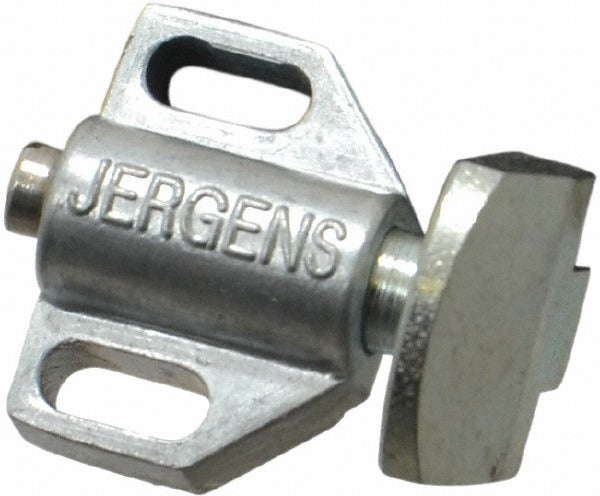

Jergens 36104 Tang Square Spring Locating Stop

Product Description

The JERGENS 36104 is a tang square spring locating stop designed to position and retain workpieces or components in fixture and assembly applications. The stop uses a spring-loaded mechanism with a 0.125-inch stroke length and a mid-end force of 10 pounds, providing consistent, repeatable contact force against a workpiece. The body is constructed from zinc aluminum alloy, and the stop head is made from low carbon steel. With a compact body width of 0.9375 inches and a body length of 0.6875 inches, this locating stop fits into tight fixture layouts. It is typically installed by toolmakers, fixture builders, and machine shop technicians.

The JERGENS 36104 is suited for use in workholding fixtures, jigs, and assembly tooling where a reliable spring-actuated stop is required. The tang profile allows for controlled positioning within a mounting slot. The 21/32-inch distance between mounting hole centers and the included mounting slot dimensions make this stop compatible with standard fixture plate layouts used in light manufacturing and precision machining environments. It is appropriate for both prototype and production fixture builds.

Key Features

• Spring-loaded tang design provides 10 pounds of mid-end force for consistent workpiece contact
• Compact body - 0.9375 inches wide by 0.6875 inches long - fits tight fixture layouts
• 0.125-inch stroke length accommodates minor workpiece variation
• Zinc aluminum alloy body with low carbon steel stop head for durability in shop environments
• Mounting slot dimensions of 0.3594 inches long by 0.1406 inches wide for secure fixture mounting
• Tang width of 0.25 inches and tang length of 0.234 inches for precise slot engagement

Compatibility

Designed as a direct-mount spring locating stop for use in standard workholding fixture plates and jigs where tang-profile stops with a 21/32-inch mounting hole center spacing are specified.

Installation Notes

Installation is typically performed by toolmakers or fixture technicians using standard machine shop hand tools. Before servicing or replacing a locating stop in an active fixture, ensure all associated machinery is powered down and any clamping or pneumatic systems are fully depressurized. Follow applicable workplace safety and fixture-design standards when specifying stop force and placement. Confirm mounting slot clearances match the stop body dimensions before installation to avoid binding.
