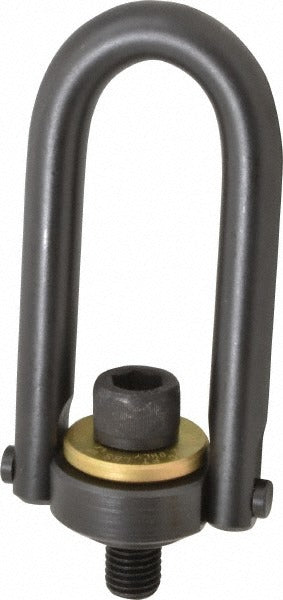

Jergens 23517 Center Pull Hoist Ring 5000 Lb Bolt-on

Product Description

The JERGENS 23517 is a safety engineered center pull hoist ring designed for bolt-on mounting to machinery, tooling, and fabricated components that require a reliable overhead lifting point. Built from alloy steel with a black oxide finish, this hoist ring supports a working load limit of 5,000 pounds and is engineered to pivot and swivel under load, reducing side-load stress on the mounting fastener. The 3/4-10 thread size accommodates standard bolt-on installation, and the single-hole mounting pattern keeps the footprint compact. Licensed riggers and millwrights install this type of hardware during equipment assembly, maintenance positioning, or machine relocation.

This hoist ring is suited for industrial lifting applications where loads must be picked from a centered attachment point on metal workpieces, dies, molds, machine frames, or heavy assemblies. The center pull design allows the ring to align with the load path regardless of sling angle, making it appropriate for both vertical and angled lifts within rated limits. It carries CE certification, making it suitable for use in environments where that standard is required by plant or regulatory specifications.

Key Features

• 5,000 lb working load limit for demanding industrial lift points
• Center pull pivot and swivel design reduces side-load stress on fastener
• Alloy steel construction with black oxide finish for corrosion resistance
• 3/4-10 thread size with single bolt-on mounting hole
• CE certified to meet applicable international lifting hardware standards
• 100 ft/lb installation torque specification for consistent preload

Compatibility

Designed as a bolt-on replacement or new-installation center pull hoist ring for machinery and fabricated assemblies requiring a 3/4-10 threaded mounting point with a 5,000 lb working load limit.

Installation Notes

Installation is typically performed by a licensed rigger, millwright, or qualified maintenance technician following applicable ASME B30 lifting hardware guidelines. The mounting bolt must be torqued to the specified value using a calibrated torque wrench to ensure full load-rated performance. Always inspect the hoist ring for cracks, deformation, or thread damage before each use, and never exceed the rated working load limit. De-energize and lock out any associated equipment before installing or removing the hoist ring from the workpiece.
