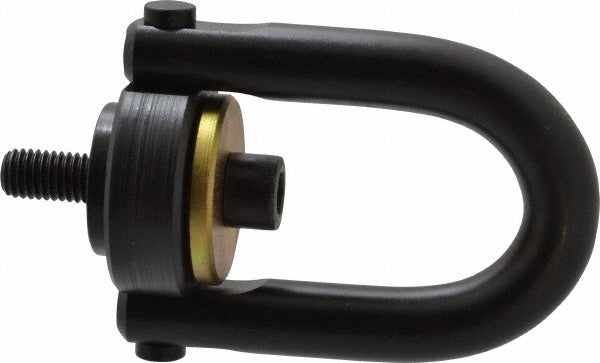

Jergens 23412 Center Pull Hoist Ring 2500 Lb Bolt-on

Product Description

The JERGENS 23412 is a safety engineered center pull hoist ring designed for secure, bolt-on attachment in overhead lifting applications. Built from 4140 alloy steel with a black oxide finish, this hoist ring carries a 2,500 lb working load limit and is CE certified. The center pull design allows the ring to swivel and pivot freely, keeping the load path aligned and reducing side-loading stress on the mounting bolt. Licensed riggers and maintenance technicians install this type of hardware in industrial lifting, machinery positioning, and load-handling operations where a fixed anchor point is required.

This hoist ring is suited for use in manufacturing, heavy equipment maintenance, and fabrication environments. It mounts to a single threaded hole using a 1/2-13 thread and is torqued to specification during installation. The bolt-on design makes it a practical choice for both permanent mounting on machinery and temporary attachment points on fabricated assemblies where center-pull alignment is critical to safe load handling.

Key Features

• 2,500 lb working load limit for dependable overhead lifting capacity
• Center pull design allows full swivel and pivot to maintain load alignment
• 4140 alloy steel construction for high strength in demanding industrial environments
• Black oxide finish provides corrosion resistance in typical shop and field conditions
• Single bolt-on mount with 1/2-13 thread for straightforward installation
• CE certified to meet applicable lifting hardware standards

Compatibility

Designed as a bolt-on replacement or new-installation hoist ring for machinery and fabricated assemblies requiring a 1/2-13 threaded mount point with a 2,500 lb working load limit.

Installation Notes

Installation should be performed by a qualified rigger or millwright familiar with applicable lifting hardware standards and ASME B30 rigging guidelines. Always torque the mounting bolt to the specified value before placing the ring into service. Inspect the hoist ring, mounting threads, and surrounding material for damage before each lift. Never exceed the rated working load limit or use the ring for angular loads beyond the design parameters of the center pull configuration.
