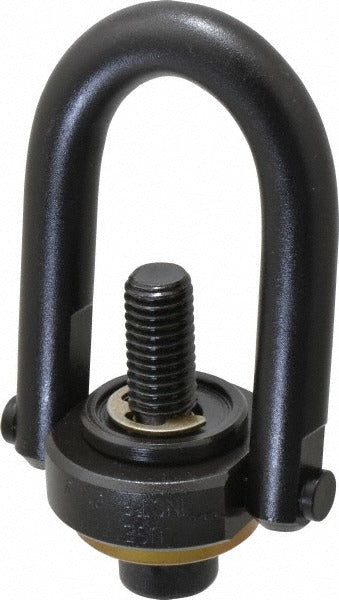

Jergens 23410 Center Pull Hoist Ring 2500 Lb Bolt-on

Product Description

The JERGENS 23410 is a safety engineered center pull hoist ring designed for bolt-on mounting in industrial rigging and lifting applications. Manufactured from 4140 alloy steel with a black oxide finish, this hoist ring is rated for a 2,500 lb working load limit. The center pull design keeps the load aligned through the ring axis, reducing side loading and improving lift control. Installation requires a single mounting hole and a specified installation torque of 28 ft-lb on the 1/2-13 thread. This hardware is typically installed by millwrights, maintenance technicians, and rigging professionals in manufacturing and material handling environments.

The 23410 is suited for use in industrial, manufacturing, and heavy equipment environments where reliable vertical or center pull lifting points are required. The bolt-on mount allows for installation directly into tapped holes on machinery, molds, dies, or fabricated components. Its compact ring profile and standardized thread make it a practical fit for applications where frequent lifting or repositioning of heavy components is part of normal operations.

Key Features

• 2,500 lb working load limit for demanding industrial lifting tasks
• 4140 alloy steel construction with black oxide finish for corrosion resistance
• Center pull geometry reduces side loading during vertical lifts
• Bolt-on mount with single mounting hole and 1/2-13 thread size
• 28 ft-lb installation torque specification supports consistent, repeatable installation
• CE standard compliance for use in applicable regulated environments

Compatibility

Designed as a bolt-on lifting point for machinery, molds, dies, and fabricated steel components with a tapped 1/2-13 thread hole.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician following applicable ASME B30 rigging standards. De-energize and lock out any associated equipment before installing or removing the hoist ring. Torque the fastener to 28 ft-lb using a calibrated torque wrench to ensure proper seating and rated load performance. Inspect the ring for deformation, cracks, or corrosion before each use and remove from service if any damage is found.
