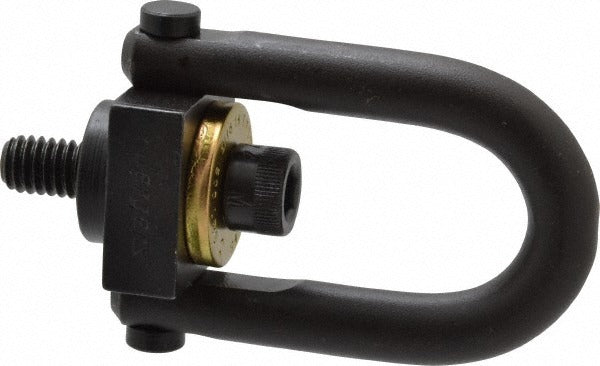

Jergens 23406 Center Pull Hoist Ring Bolt-on 800 Lb

Product Description

The JERGENS 23406 is a safety engineered center pull hoist ring designed for bolt-on mounting in industrial lifting applications. Manufactured from 4140 alloy steel with a black oxide finish, this hoist ring provides a working load limit of 800 pounds. The 5/16-18 thread size and single bolt-on mount keep installation straightforward for maintenance and rigging crews. The ring height measures 2.67 inches, with an external ring width of 1.84 inches and an internal width of 0.75 inches, making it a compact but capable lifting point for tooling, fixtures, and machinery components.

This hoist ring is suited for industrial and manufacturing environments where a secure, center-pull lifting point is required on machined parts, molds, dies, or fabricated assemblies. The bolt-on design allows it to be installed on components that require a removable or replaceable lifting point. It is appropriate for use in single-point vertical lifts where the load must be balanced and controlled. The CE standard rating supports use in facilities that require conformance to European lifting equipment directives.

Key Features

• 800 lb working load limit for secure single-point lifting
• 4140 alloy steel construction for high strength and durability
• Black oxide finish provides corrosion resistance in industrial environments
• 5/16-18 thread size with single bolt-on mounting hole
• Center pull design keeps load balanced during vertical lifts
• CE rated for compliance with applicable lifting equipment standards

Compatibility

Designed as a bolt-on replacement or new-installation hoist ring for industrial fixtures, tooling, molds, and machinery components requiring a 5/16-18 threaded mounting point and an 800 lb working load limit.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with industrial lifting hardware. De-energize and secure the load-bearing assembly before installing or removing the hoist ring. Apply the specified installation torque of 7 foot-pounds to the mounting bolt using a calibrated torque wrench. Inspect the ring for wear, deformation, or corrosion before each use and remove from service if any damage is found.
