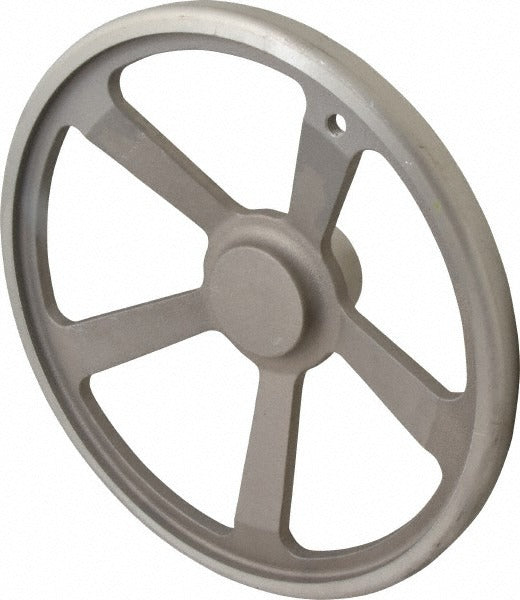

Jergens 22305 Spoked Handwheel 14 Inch 5 Spoke

Product Description

The JERGENS 22305 is a 14-inch spoked handwheel with a plain finish, designed for manual control applications on industrial machinery, valves, and equipment. Built from lightweight aluminum alloy (Material Grade 319), it features five evenly spaced spokes and a 7/16-inch handle thread size. The hub measures 2.53 inches in length and 2.75 inches in diameter, giving operators a solid grip point for precise manual adjustments. With an overall height of 3.8125 inches and a wheel thickness of 1 inch, it delivers a sturdy, low-maintenance solution for production and maintenance environments. Licensed HVAC, plumbing, and mechanical trades professionals install this type of handwheel as part of valve and equipment control assemblies.

The JERGENS 22305 is suited for use on industrial valves, machine tool controls, and process equipment requiring manual wheel actuation. The 14-inch diameter provides mechanical advantage for operators turning against moderate resistance. The plain finish is appropriate for dry or sheltered indoor environments. It is a standard fit for equipment requiring a 7/16-inch threaded handle connection and a hub bore configuration matching this unit's dimensions.

Key Features

• 14-inch diameter for increased manual torque and operator control
• Five-spoke design reduces weight while maintaining structural rigidity
• Lightweight aluminum alloy construction (Material Grade 319)
• 7/16-inch handle thread size for secure mounting
• Hub length of 2.53 inches and hub diameter of 2.75 inches for stable shaft engagement
• Plain finish suitable for clean, indoor industrial environments

Compatibility

Designed as an OEM-style replacement or upgrade handwheel for industrial machinery, valve assemblies, and process equipment requiring a 14-inch spoked handwheel with a 7/16-inch threaded handle connection.

Installation Notes

Installation is typically performed by a qualified millwright, mechanical technician, or maintenance professional. Before installing or removing a handwheel, de-energize the associated equipment and relieve any pressure or load on the connected valve or shaft. Verify that the hub bore and thread specifications of the equipment shaft match the handwheel dimensions before installation. Follow applicable OSHA lockout/tagout procedures when servicing equipment-mounted controls.
