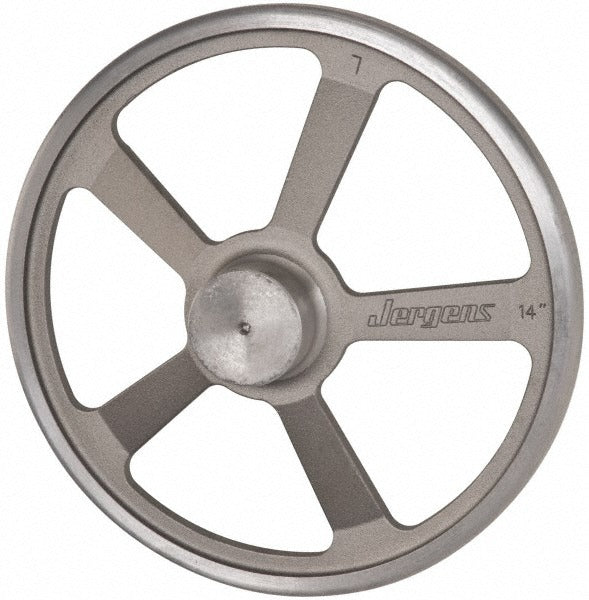

Jergens 22105 Spoked Offset Handwheel 14 Inch Plain

Product Description

The JERGENS 22105 is a spoked offset handwheel designed for manual control of valves, machine tools, and industrial equipment where a traditional inline grip is impractical. Built from lightweight alloy grade 319 aluminum with a plain finish, this handwheel features five evenly spaced spokes and a 14-inch diameter for high-torque hand operation. The hub accepts a 7/16-inch threaded shaft and measures 2-17/32 inches in length with a 2-3/4-inch diameter, providing a stable, centered mount. At 6.7 pounds, the 22105 is suitable for bench-mounted equipment, control stations, and production machinery where operators need precise manual adjustment without power actuation.

This handwheel is used in industrial and manufacturing environments on manually operated valves, presses, lathes, milling machines, and conveyor adjustment mechanisms. The offset design positions the hand grip away from the wheel plane, reducing knuckle clearance issues in tight installations. It is installed by maintenance machinists, millwrights, and equipment technicians in both OEM fabrication and field-service applications. The plain finish makes it suitable for applications where painting or coating will be applied post-installation.

Key Features

• 14-inch diameter for high mechanical advantage during manual actuation
• 5-spoke construction reduces weight while maintaining structural rigidity
• Offset handwheel geometry improves hand clearance in confined equipment bays
• Lightweight alloy grade 319 material balances durability with reduced rotating mass
• 7/16-inch threaded hub accommodates standard shaft sizes common in industrial equipment
• Plain finish accepts field-applied paint or protective coating

Compatibility

Designed as an OEM-style replacement or upgrade handwheel for industrial machinery and equipment using a 7/16-inch threaded shaft with a manual hand-control interface.

Installation Notes

Installation is typically performed by a machinist or millwright. Ensure the equipment shaft or valve stem is fully de-energized and locked out before removing or installing any handwheel. Verify that the shaft thread specification matches the 7/16-inch hub thread before mounting. Torque the retaining hardware to the equipment manufacturer's specification using a calibrated torque wrench.
