Product Description

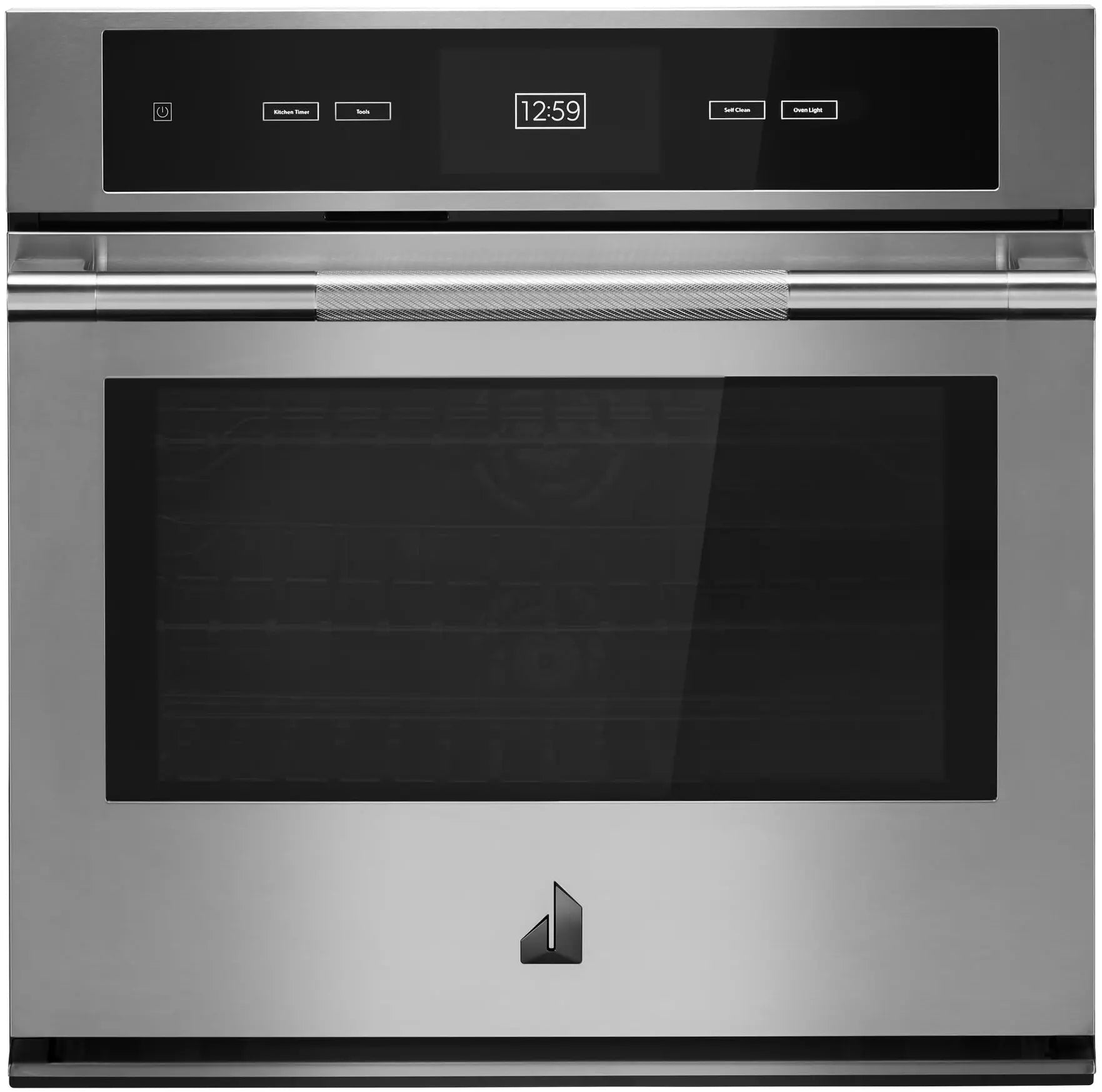

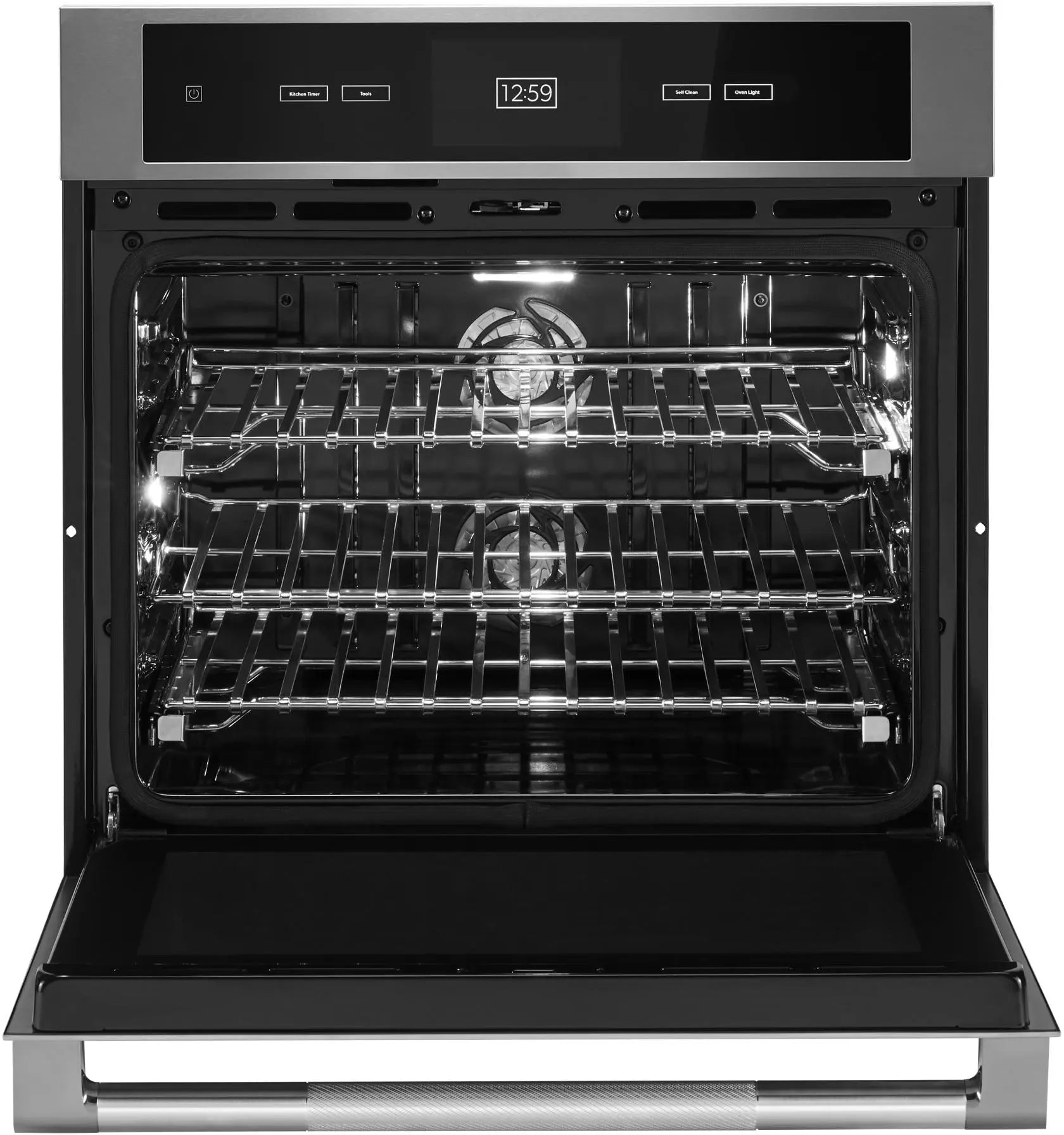

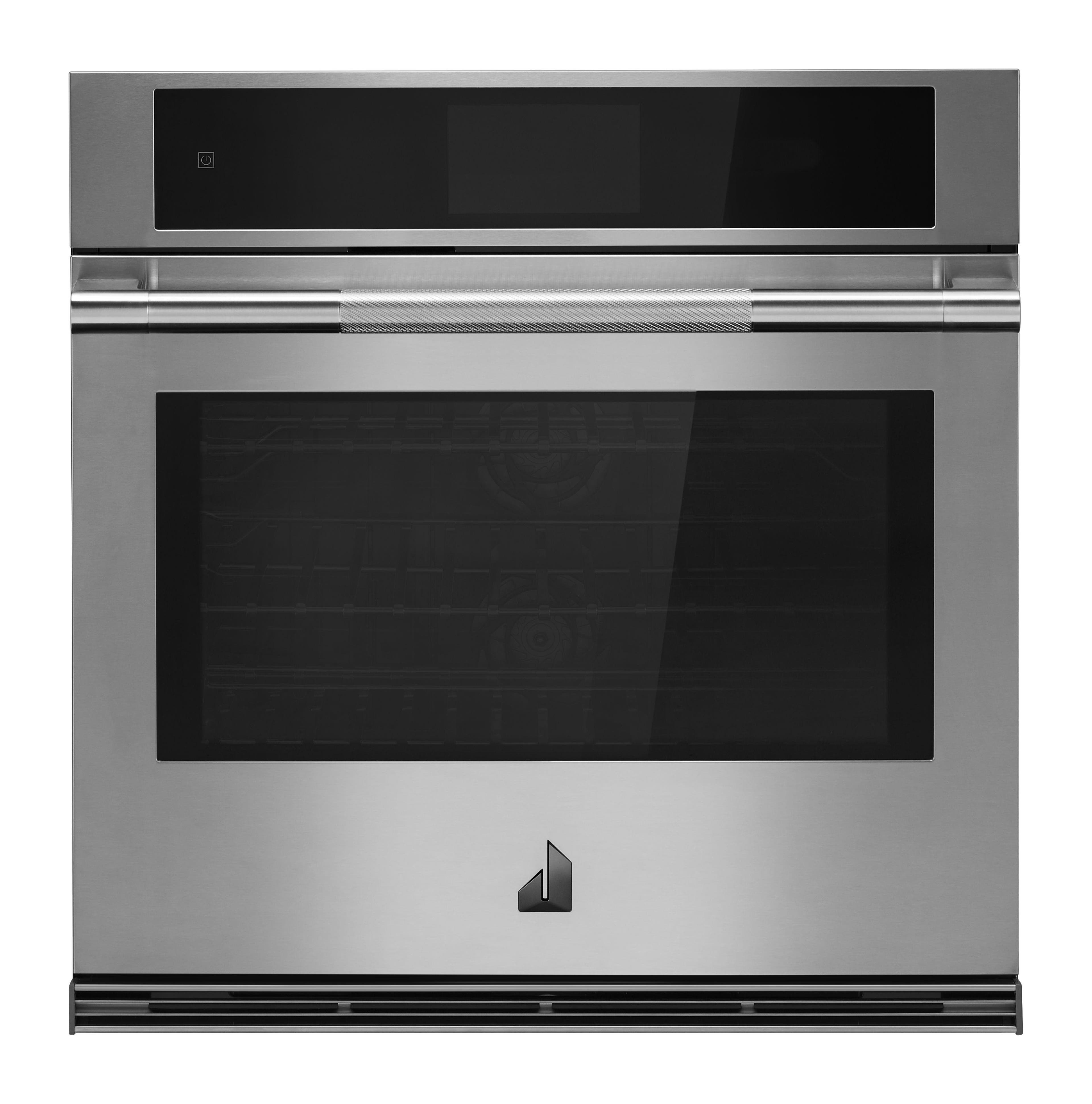

The JennAir JJW3430LL Rise™ 30" Single Wall Oven features V2™ Vertical Dual-Fan Convection for even heat distribution. This electric oven offers a 5.0 cu. ft. capacity and a self-cleaning function. It also includes rapid preheat, proof mode, delay bake, keep warm option, and Sabbath mode. The appliance is equipped with a temperature probe and a 7-inch full-color LCD display.
- Features V2™ Vertical Dual-Fan Convection
- Offers a 5.0 cu. ft. capacity
- Includes rapid preheat and proof mode
Product Highlights
Single wall oven with true convection, self-cleaning, and a temperature probe.
Product Information
Standard Information
-
Brand: JennAir
-
Manufacturer Part Number: JJW3430LL
Technical Specifications
-
Bake Element Power: 2,800 W/2,427W
-
Broiler Element Power: 4,000 W
-
Broiler Location: Top of Oven
-
Convection Element Power: 6,800 W
-
Convection Element Type: Dual Fan
-
Convection Functions: Bake Broil Roast Upper
-
Door Broil Position: Closed
-
Door Lock: Yes
-
Hidden Bake Element: Yes
-
Installable Under Cooktop: Yes
-
Interior Coating: Porcelain
-
Interior Color: Black
-
Light Type: Halogen
-
Number of Bake Elements: 1
-
Number of Broil Elements: 1
-
Number of Oven Lights: 3
-
Number of Oven Racks: 3
-
Number of Rack Guides: 6
-
Oven Cleaning Type: Self-Cleaning
-
Oven Cooking System: V2™ True Convection
-
Self-Cleaning Oven Racks: No
-
Door Type: Metal & Glass
-
Handle Color: Stainless Steel
-
Handle Material: Stainless Steel
-
Delay Clean: Yes
-
Design Expression: RISE™
-
Flush Installation Approved: Yes
-
Fuel Type: Electric
-
LP Convertible: No
-
Oven Automatic Shut-Off: Yes
-
Oven Configuration: Single Oven
-
Oven Selections: Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Culinary Center, Delay Start, Favorites, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Slow Cook, Start Time, Stop Time, Temperature Conversion, Temperature Probe, Temperature-Sensor Baking, Timer, Warm Hold
-
Oven Type: Single
-
Power On Indicator Light: Yes
-
Capacity: 5 cu. ft.
-
Common Size: 30 in
-
Cutout Depth: 24 in
-
Cutout Height: 29.438 in
-
Cutout Width: 28.5 in
-
Depth: 23.25 in
-
Depth Closed Excluding Handles: 24.313 in
-
Depth Closed Including Handles: 27.125 in
-
Depth Excluding Doors: 23 in
-
Depth With Door Open 90 Degree: 45.438 in
-
Height: 29.875 in
-
Oven Interior Depth: 19
-
Oven Interior Height: 18
-
Oven Interior Width: 25 in
-
Width: 30 in
-
ADA Compliant: ADA Height and Side and Front Reach Compliant
-
CUL: Yes
-
Star K Certified: Yes
-
UL: Yes
-
Connectivity: Amazon Alexa, Android, Google Assistant, iOS
-
Smart Appliance: Yes
-
Works With: App, Remote Access, Voice Controlled, WiFi
-
Control Type: Tap Touch
-
Display Color: Full Color
-

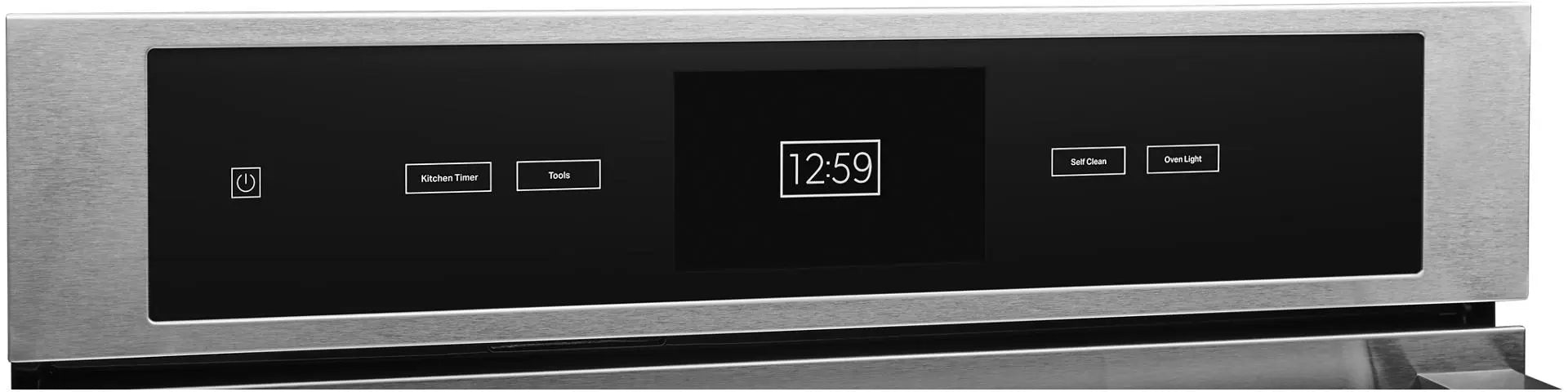

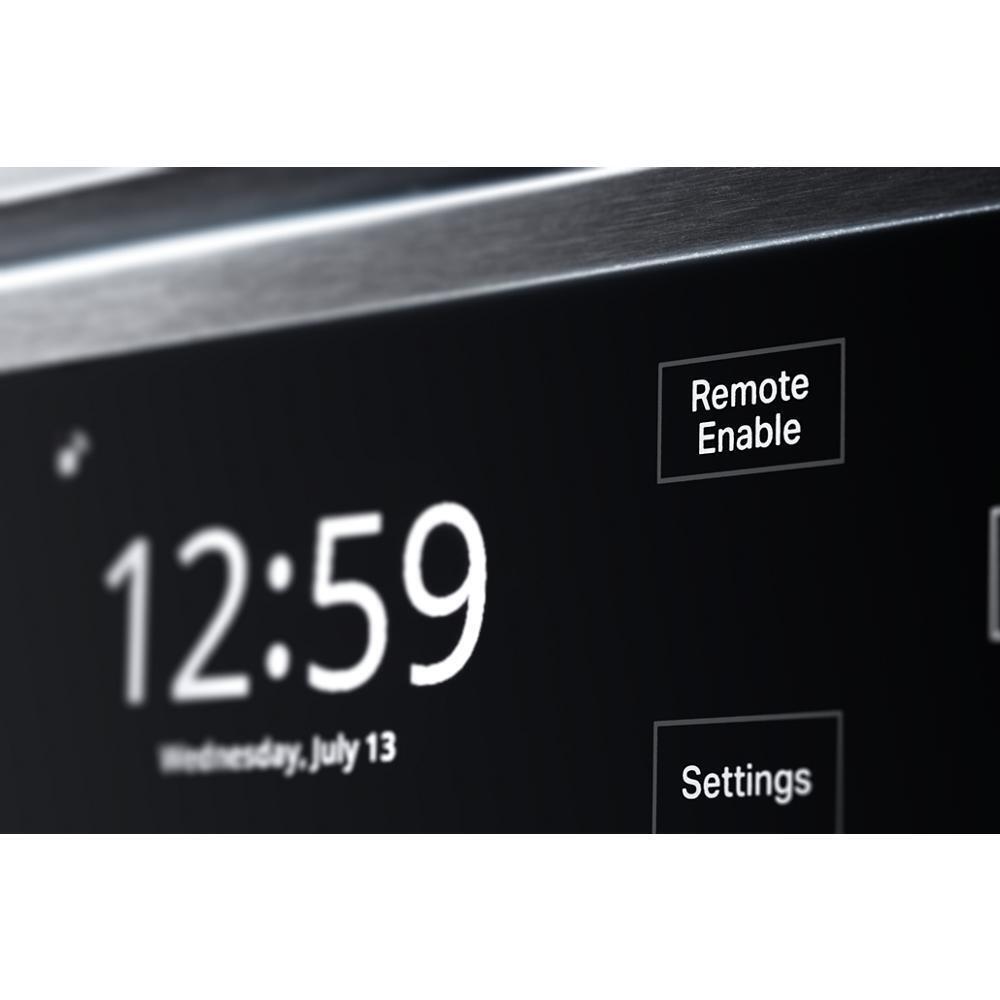

Electronic Display Type: 7-Inch Full Color LCD
-
Language Conversion: English/French
-
Light Control: Oven Light Touch Pad
-
Amps: 20
-
Hz: 60
-
Power Cord Included: No
-
Volts: 240
-
Installation: Built-In/Integrated
-
Venting Type: No Built-In Ventilation
-
Material: Stainless Steel
-
Smart Home Compatibility: Amazon Alexa
-
Design: Drop Door
-
Model: JennAir RISE JJW3430LL
-
Number of Ovens: 1
-
Power Requirement: 240 V
-
Finish: Glass
-
Smart Home Protocol: Wi-Fi
-
Item Width: 30 in
-
Product Height: 29.875
-
Product Depth: 23.25
-
Product Width: 30
