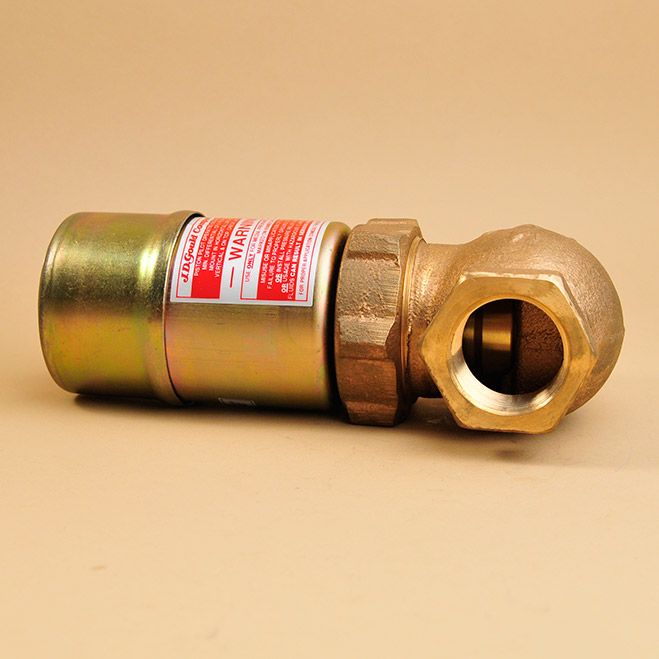

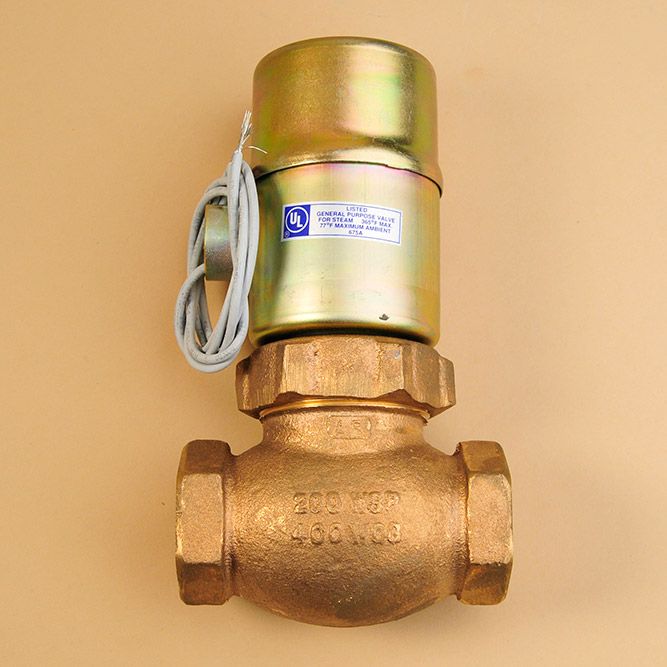

JD Gould Q-1-3T - 1 NPT Bronze Solenoid Valve 120V

Product Description

The JD Gould Q-1-3T is a one-inch NPT bronze solenoid valve designed for reliable operation in hot water and steam applications. Operating at one hundred twenty volts, this normally closed valve has a maximum temperature tolerance of three hundred sixty-five degrees Fahrenheit and supports a pressure rating of up to one hundred fifty psi..

• Standard 1 NPT connection.
• Constructed from durable bronze material.
• Ideal for use in hot water and steam service.

Product Highlights

The JD Gould solenoid valve uses an electromagnetic coil to control flow. When energized, the valve opens, allowing fluid to pass. Its robust design ensures durability in demanding environments.

Product Information

Standard Information

• Brand: JD Gould
• MPN: Q-1-3T_1_120

Technical Specifications

• Model: Q-1-3T
• Valve Size: 1 inch
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Hot Water, Steam
• Max Pressure: 150 psi WSP
• Weight: 6.00 pounds
