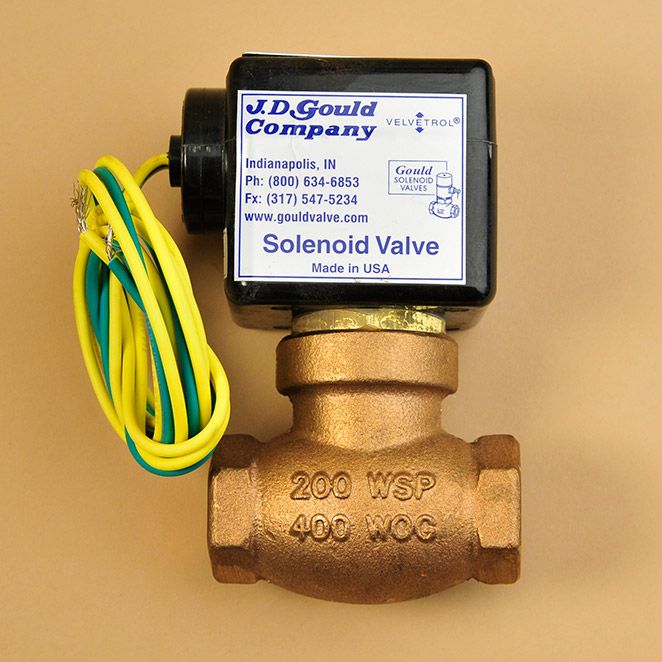

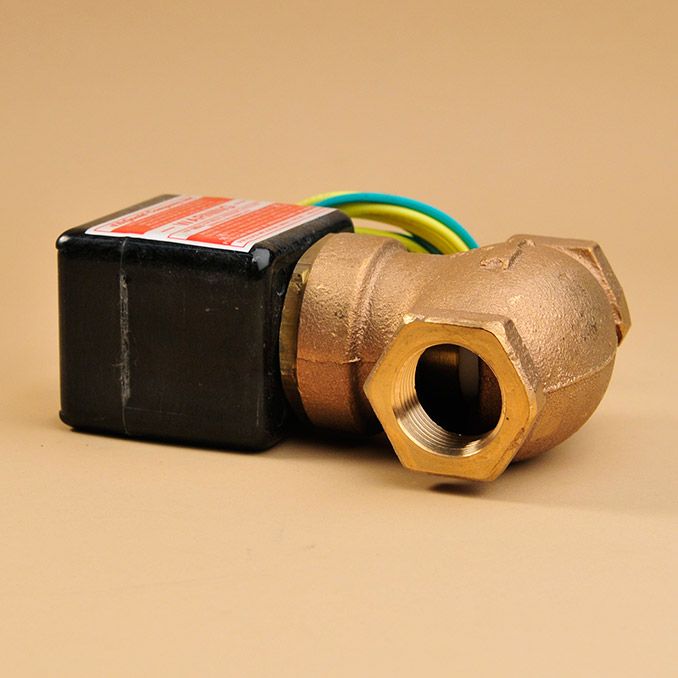

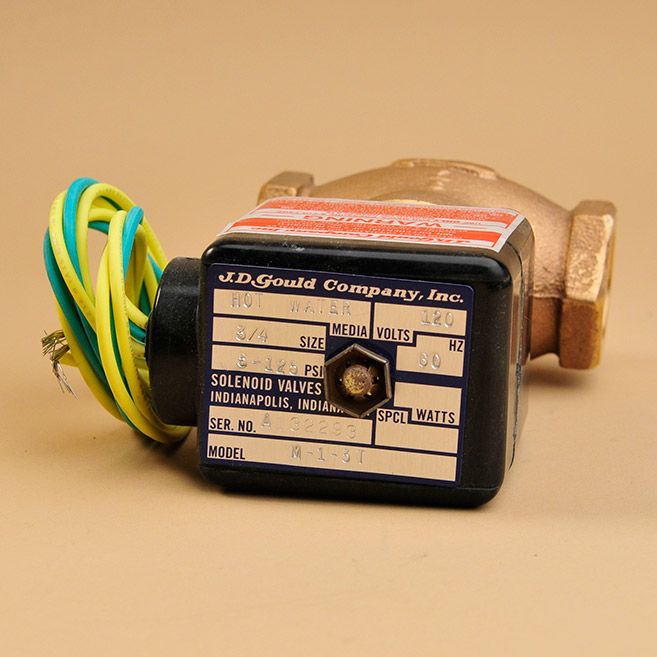

JD Gould M-1-3T - 3/4 NPT Bronze Solenoid Valve 120V

Product Description

The JD Gould M-1-3T is a three-quarter inch NPT bronze solenoid valve designed for hot water and steam applications. Operating at 120 volts, this normally closed valve is capable of withstanding a maximum temperature of three hundred fifty-six degrees Fahrenheit. It has a maximum hot water pressure of one hundred twenty-five psi and requires a minimum pressure differential of five pounds to operate.

• Bronze body for durability and extended service life
• Activated by an electromagnetic coil for reliable operation
• Suitable for various industrial applications involving hot water and steam

Product Highlights

This solenoid valve is effective for controlling fluid flow in piping systems. It is used in applications requiring precise control over hot water and steam flow where reliable operation is critical.

Product Information

Standard Information

• Brand: JD Gould
• MPN: M-1-3T_3/4_120

Technical Specifications

• Model: M-1-3T
• Valve Size: 3/4 inches
• Valve Connection: NPT
• Piping Configuration: Straight
• Body Material: Bronze
• Valve Application: Hot Water, Steam
• Max Pressure: 125 psi WSP
• Weight: 3.00 lbs
