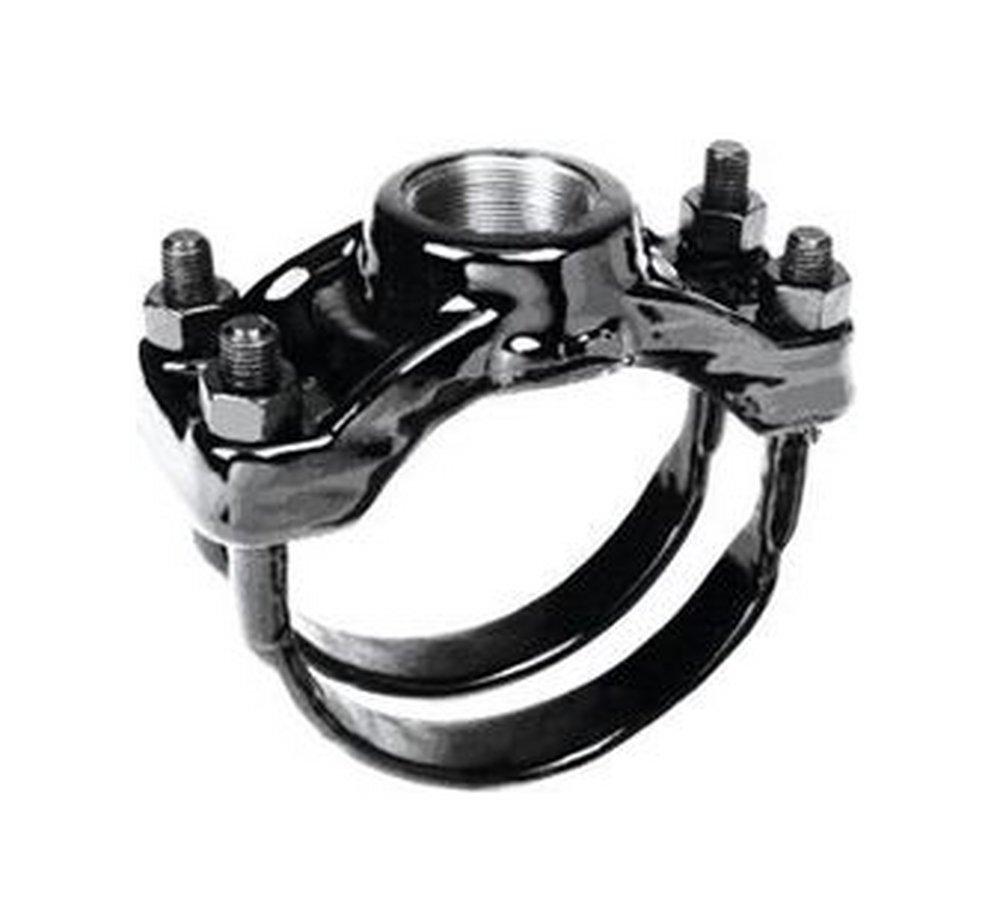

JCM Industries 402-0480X08IP 4 x 1 in. IP Ductile Iron Electro-Galvanized Double Strap Saddle

Product Description

The JCM Industries 402-0480X08IP is a 4 x 1 inch IP ductile iron electro-galvanized double strap saddle designed for service applications in plumbing systems. This product offers a reliable means of creating branch connections with minimal risk of leaks or damage to the main line.

• Double strap design enhances stability and support.
• Corrosion-resistant coating ensures long-term durability.
• Easy installation with broad pressure activated gasket for various pressure ratings.

Product Highlights

The JCM Industries saddle ensures maximum safety and performance in pipe tapping applications. It features a wrap-around design that supports and reinforces the pipe, reducing the chance of failure due to pressure fluctuations.

Product Information

Standard Information

• Brand: JCM Industries
• Part Number: 402-0480X08IP

Technical Specifications

• Connection Size: 4 x 1 inch
• Connection Type: IPS x FNPT
• Finish: Standard shop coated primer
• Material: Ductile iron
• Outside Diameter: 4-1/2 to 4.8 inches
• Pressure Rating: 250 psi
• Type: Double strap
• Material Specifications: ASTM A536
