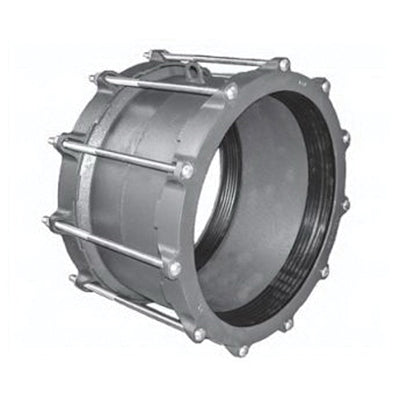

JCM Industries 242-1200 Coupling Long Length Optimum Range

Product Description

The JCM Industries coupling with MPN 242-1200 is designed to connect two pieces of plain end pipe efficiently. This product utilizes a mechanical compression joint that simplifies installation and maintenance. The coupling allows for deflection, expansion, and settlement while providing ease of disassembly when needed.

• Accommodates larger pipe ranges
• Handles high working pressures
• Offers a new gasket concept for superior performance

Product Highlights

This coupling has a flexible joint that eliminates the need for precise cutting and fitting, making it versatile for various applications. It is suitable for ductile iron, steel, PVC, and cast iron pipe classes.

Product Information

Standard Information

• Brand: JCM Industries
• Part Number: 242-1200

Technical Specifications

• Connection Size: 10 in
• Finish: Shop Coated Paint Primer
• Material: Ductile Iron
• Pressure Rating: 250 psi
• Sleeve Length: 10 in
• Outside Diameter: 10.5 - 12.12 in
• Number of Bolts: 8
• Standards/Certifications: ANSI/AWWA C219, ANSI/NSF 61 annexure G and 372 certified
• Applications: For SDR35, IPS PVC, C-900 PVC, ductile iron, steel, cast iron and A/C pipe classes 100, 150, and 200
