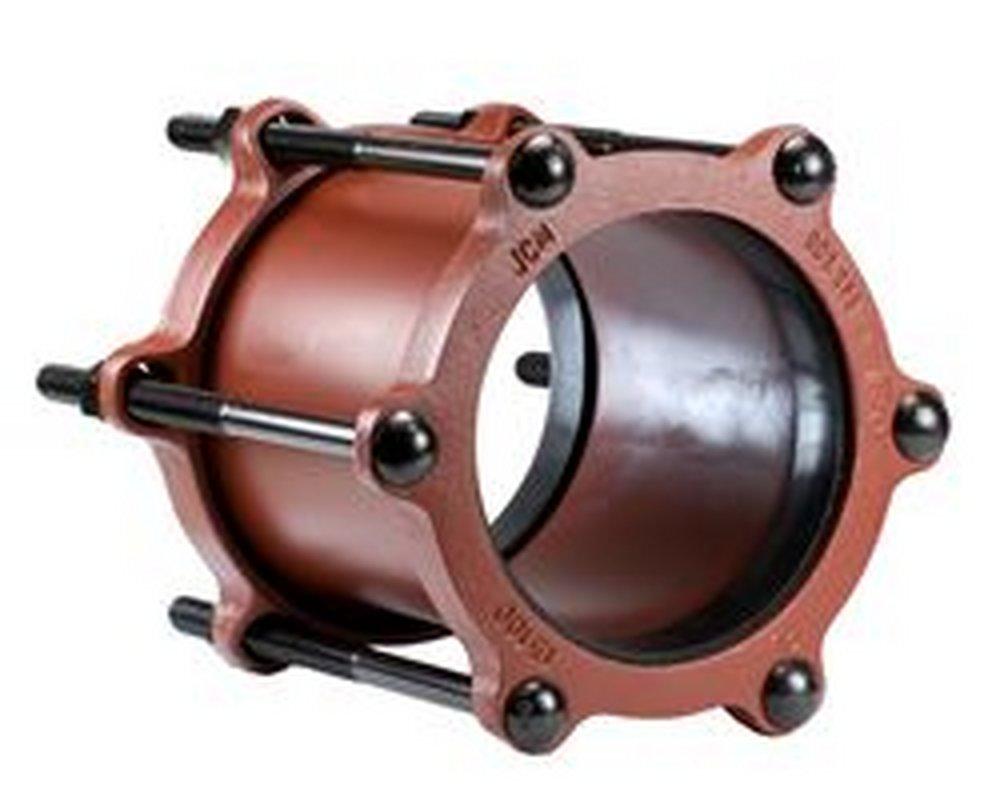

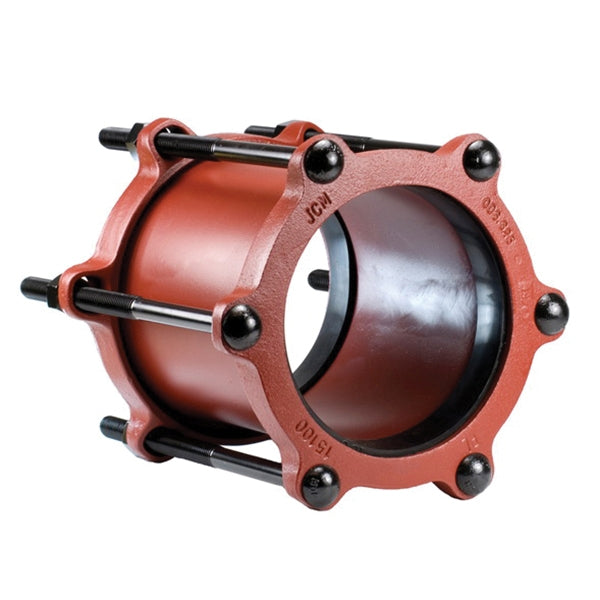

Jcm Industries 201-008401 Steel Coupling 1/2 x 3-1/2 in

Product Description

The JCM INDUSTRIES 201-008401 steel coupling provides an easy way to join plain end pipes, especially steel, galvanized, PVC, and other pipes with standard steel dimensions. Implementing bolted gasket compression, the JCM 201 steel couplings are easy to install and eliminates costly threading, beveling, and exact pipe alignment.

• Join plain end pipe
• Install repair section of pipe
• Followers - ductile iron

Product Highlights

The JCM 201 steel couplings overcome offsets and measurable deflections while reducing the effects of water hammer and pipe damage due to vibration. Suitable for industrial service.

Product Information

Standard Information

• Brand: JCM INDUSTRIES
• Manufacturer Part Number: 201-008401

Technical Specifications

• Connection Size: 1/2 in
• Finish: Shop Coated Primer
• Item Name: Bolted Coupling
• Material Specifications: ASTM A53, ASTM A512, ASTM A536, ASTM A307
• Material: Carbon Steel
• Model: 201
• Number of Bolts: 2
• Outside Diameter: 0.84 in
• Sleeve Size: 3-1/2 in L x 0.157 in THK
• Applications: For use on steel, galvanized, PVC and other pipe with standard steel dimensions, industrial service
• Standards/Certifications: ANSI/AWWA C219, ANSI/NSF 61 annexure G and 372 certified
