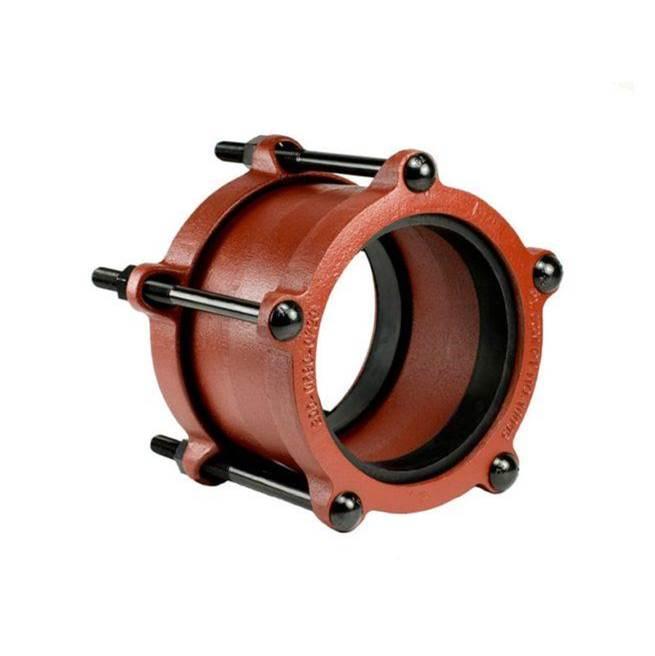

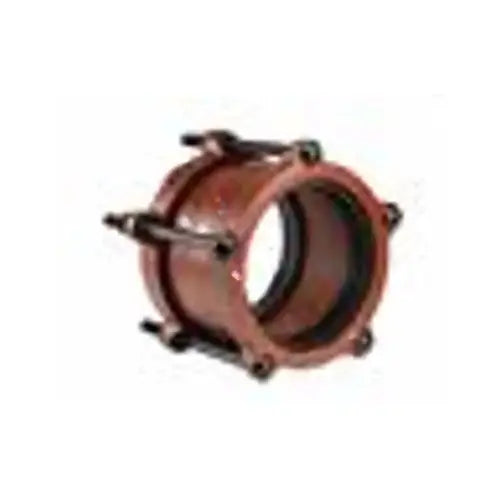

Jcm 210-0288 Ductile Iron Repair Coupling 2-1/2 in

Product Description

The JCM 210-0288 ductile iron couplings employ the mechanical compression joint principle to join two pieces of plain end pipe. This flexible joint eliminates precise cutting and fitting while providing for deflection, limited expansion contraction, and easy disassembly for maintenance. It is suitable for use with 2.62 to 2.92 in OD cast iron, PVC, and steel pipes.

• No beveling, costly threading, exact pipe alignment or fitting is required
• Make assembly/disassembly of pipe sections fast
• Quick, simple to install, using only a wrench

Product Highlights

The JCM Ductile Iron Repair Coupling is quick and simple to install, using only a wrench. Gaskets absorb vibration and pipe movement.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 210-0288

Technical Specifications

• Brand: JCM Industries
• MPN: 210-0288
• Manufacturer: JCM Industries
• Type: Ductile Iron
• Pipe Size: 2-1/2 in
• Length: 5 in
• Material: Ductile Iron
• Series: 210
• Product Type: Coupling
• Finish: Metal Primer Stainless Steel
• Bolt Finish: Stainless Steel
• Bolt Material: Low Alloy
• Flange Material: Ductile Iron
• Gasket Material: Styrene Butadiene Rubber
• Nominal Pipe Size: 2-1/4'', 2-1/2''
• Number Of Bolts: 2
• Pipe Outer Diameter Range: 2.62''-2.92''
• Pressure Rating: 150 psi
• Sleeve Length: 5''
• Sleeve Material: Ductile Iron
