Jcm 210-0250 Ductile Iron Bolted Coupling 2 in replacement mpn

Product Description

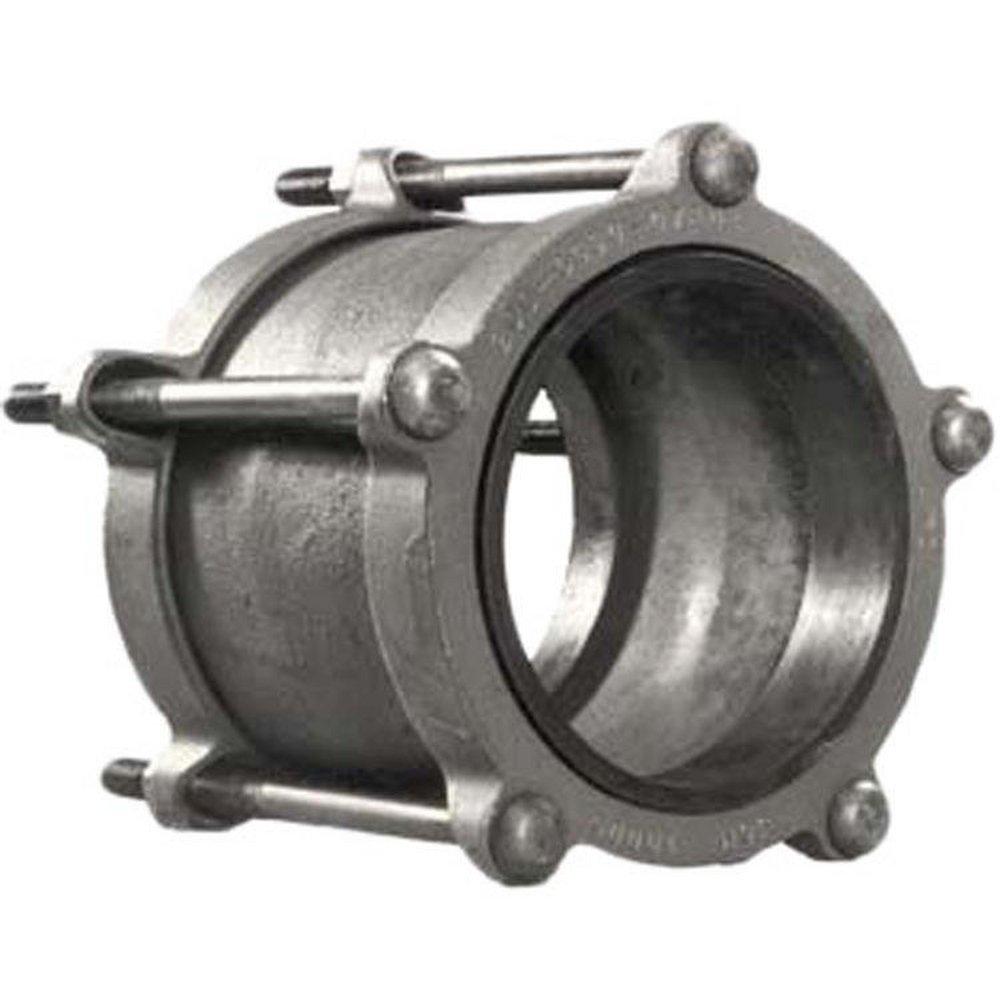

The JCM 210-0250 ductile iron couplings employ the mechanical compression joint principle to join two pieces of plain end pipe. This stress receiving flexible joint eliminates precise cutting and fitting in the field while providing for deflection, limited expansion contraction, and pipe settlement. It provides a quick easy means of disassembling the system for maintenance.

• No beveling, costly threading, exact pipe alignment or fitting is required
• Make assembly/disassembly of pipe sections fast
• Quick, simple to install, using only a wrench

Product Highlights

The JCM 210-0250 is a standard wide range coupling for joining cast iron, ductile iron, PVC, and steel pipes. It allows for quick and easy assembly and disassembly of pipe sections.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 210-0250

Technical Specifications

• Manufacturer: JCM Industries, Inc
• Brand Name: JCM
• MPN: 210-0250
• Connection Size 1: 2 in
• Connection Size 2: 2 in
• Material Construction: Ductile Iron
• Finish: Painted
• Pressure: 150 psi
• For Use With: 2.34 to 2.63 in OD Cast Iron, PVC and Steel Pipes
• Temperature Range: -40 to 150 deg F
• Additional Information: 5 in L Sleeve, 2-Bolt
• Nominal Size A: 2 inch
• Standards: ANSI/AWWA C-219
• Connection Type: Mechanical Compression Joint
• Material: Ductile Iron, Rubber
• Application: Asbestos Cement Pipe, C900 PVC Pipe, Cast Iron Pipe, Ductile Iron Pipe, HDPE Pipe, IPS Pipe, PVC Pipe, Steel Pipe
• Coating: Fusion Bonded Epoxy
• End Connection 1: Restraint Joint
• End Connection 2: Restraint Joint
• End Connections: Restraint Joint
• FM Approved: No
• Fitting Size 1: 2
• Fitting Size 2: 2
• Fitting Sizes: 2 in
• Fitting Type: Coupling
• Length: 5 in
• Material Type: SBR
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - High: 150
• Range (in): 2.34 in - 2.63 in
• UL Listed: No
• Type: Ductile Iron
• Pipe Size: 2 in
• Series: 210
• Dimensions: 2.34 to 2.63 in OD
• Domestic/Import: Import
• Fitting/Connector Type: Coupling
• Nominal Size: 2 in
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 150 deg F
• Brand: JCM Industries
• UNSPSC: 40172604
