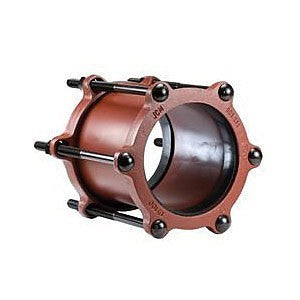

Jcm 201-013201 Steel Repair Coupling 1 in, 5 in L

Product Description

The JCM 201-013201 steel coupling joins steel, galvanized, PVC, and other pipes with standard steel dimensions from 1/2" to 24". It is available for cast iron and other pipes in sizes 14" and larger. The coupling has a 1 in nominal size, 5 in length, and 1.32 in OD.

• Joins steel, galvanized, PVC and other pipe with standard steel dimensions 1/2 to 24 in
• Available for cast iron and other pipe in sizes 14 in and larger
• Requires Certification

Product Highlights

The JCM 201-013201 coupling is ideal for repairing or connecting pipes in various applications. It features a durable carbon steel construction and is suitable for use with steel, galvanized, and PVC pipes.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 201-013201

Technical Specifications

• ANSI: ANSI 372, ANSI 61, ANSI A21.11, ANSI C219
• ASTM: ASTM A-242, ASTM A-307, ASTM A-36, ASTM A-512, ASTM A-53, ASTM A-536, ASTM D-2000
• AWWA: AWWA C-111, AWWA C-213, AWWA C-219
• Clean Bagged: No
• Coating: Black Electrocoated Epoxy
• Collection: Model #201
• End Connection 1: Bolt
• End Connection 2: Bolt
• End Connections: Bolt
• FM Approved: No
• Fitting Size 1: 1
• Fitting Size 2: 1
• Fitting Sizes: 1 in
• Fitting Type: Coupling, Straight
• IAPMO Listed: No
• Length: 5 in
• Material: Steel
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure Class: 150#
• UL Listed: No
• UPC: 670397127200
• Pipe Size: 1 in
• Series: 201
• Fitting/Connector Type: Coupling
• Nominal Size: 1 in
• Pressure Rating: 250 psi
• Thickness: 0.157 in
• Brand: JCM Industries
• UNSPSC: 40172602
• Manufacturer: JCM Industries
• Manufacturer Part Number: 201-013201
