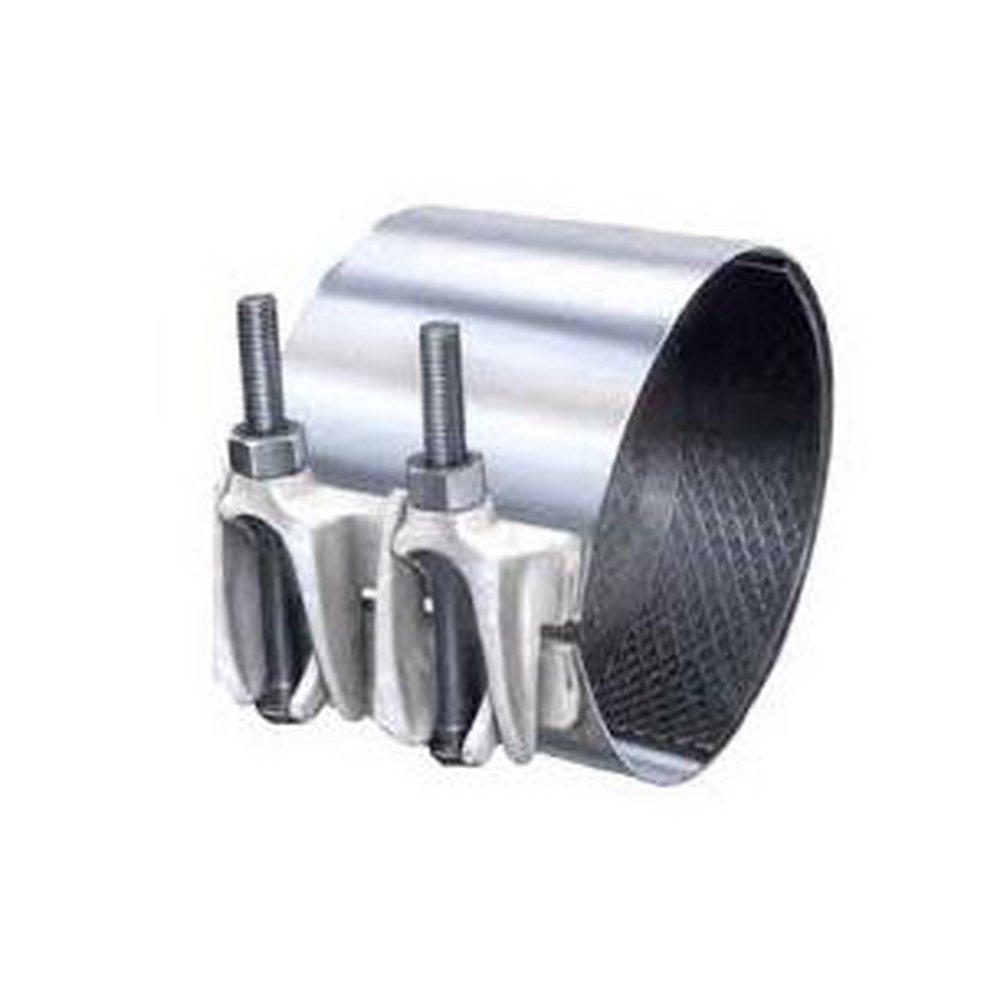

Jcm 110-0450-6 Model #110 Repair Clamp 4 x 6 in.

Product Description

The JCM 110-0450-6 Model #110 repair clamp is designed for fast, economical repairs on steel and PVC pipelines, addressing pinholes, punctures, splits, or corrosion. The partial gasket creates a patch area directly over the damage. The stainless steel band conforms to the pipe circumference with bolt torque applied directly to spot gasket sealing. Standard clamp furnished with Buna-N gasket.

• Designed for fast, economical repairs
• Suitable for pinholes, punctures, splits, or corrosion areas
• For use on steel and PVC pipelines

Product Highlights

The JCM Model #110 repair clamp offers a reliable solution for pipeline maintenance, ensuring quick and effective repairs.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0450-6

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536, ASTM D-2000
• Application: PVC Pipe, Steel Pipe
• Coating: Electrogalvanized
• Collection: Model #110
• Diameter - Outside: 4-1/2 in
• Fits Pipe Size: 4 in
• Length: 6
• Material: Ductile Iron, Rubber, Stainless Steel, Steel
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 4.5 in
• UL Listed: No
• UPC: 670397113166
• Weight: 3.2
