Jcm 110-0238-6 Patch Clamp 2 in, 6 in W

Product Description

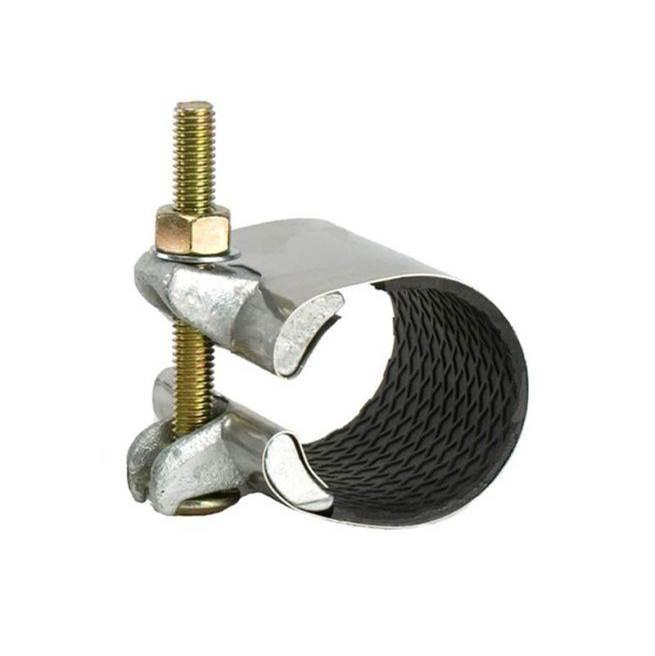

The JCM 110-0238-6 patch clamps are designed with a partial gasket for fast, economical repairs for pinholes, punctures, splits or corrosion areas on steel and PVC pipelines. The stainless steel band conforms to the pipe circumference with bolt torque applied directly to spot gasket sealing.

• Designed with a partial gasket
• For fast, economical repairs
• For pinholes, punctures, splits or corrosion areas on steel and PVC pipelines

Product Highlights

The JCM patch clamp is for fast, economical repairs for damage on steel and PVC pipelines.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0238-6

Technical Specifications

• Fits Pipe Size: 2 in
• Gasket: Buna-N
• Body: 304 Stainless Steel
• Material Standard: ASTM A536/D2000
• W: 6 in
• Additional Information: 2.38 in OD Pipe
• Type: Band
• Length: 6 in
• Material: Stainless Steel
• Series: 110
• Outside Diameter: 2.38 in
• Temperature Rating: -40 to 150 deg F
• Brand: JCM Industries
• Manufacturer: JCM Industries
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536
• Application: Pipe Repair
• Coating: Electrogalvanized
• Collection: Model #110
• Diameter - Outside: 2-19/50 in
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• UL Listed: No
• Weight: 2.3
