Jcm 110-0190-3 band clamp 3 in L

Product Description

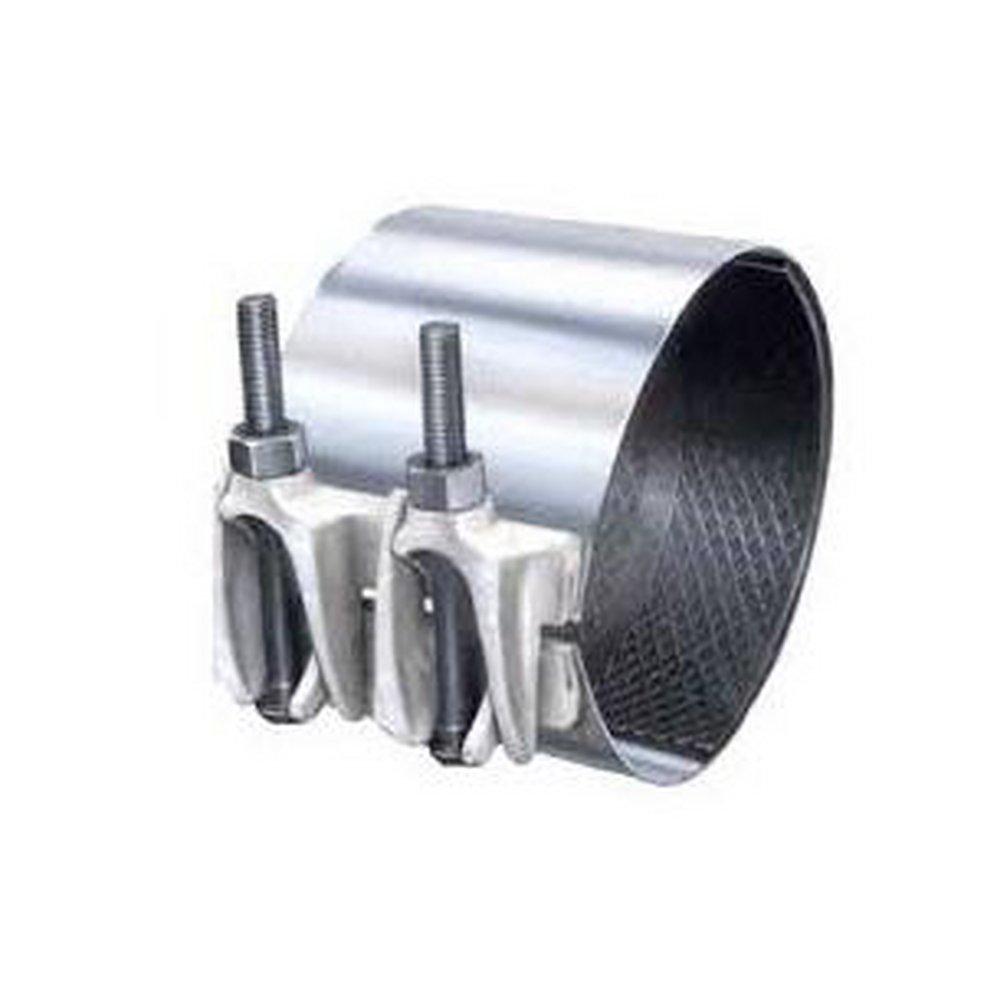

The JCM 110-0190-3 is a band clamp designed for repairing pinholes, punctures, or splits in steel pipes. It features a 304 stainless steel band and low-profile ductile iron lugs per ASTM A536. The clamp includes a replaceable, track head electrogalvanized steel bolt, nut, washer, and a gridded gasket. Ductile iron components have a corrosion-resistant shop coat primer finish.

• Nitrile butadiene rubber gasket
• Ductile iron lug
• Fast, economical repair clamps to permanently repair pinholes, punctures or splits in steel pipe

Product Highlights

Fast, economical repair clamp for permanently repairing pipe damage.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0190-3

Technical Specifications

• Type: Band
• Pipe Size: 1-1/2 in
• Length: 3 in
• Material: Stainless Steel
• Series: 110
• Outside Diameter: 1.9 in
• Temperature Rating: -40 to 150 deg F
• Brand: JCM Industries
• Manufacturer: JCM Industries
• Bolt Size: 7/16 in
• Connection Size: 1-1/2 in
• Item Name: Patch Clamp
• Width: 3 in
• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536, ASTM D-2000
• Application: PVC Pipe, Steel Pipe
• Coating: Electrogalvanized
• Collection: Model #110
• Fits Pipe Size: 1-1/2 in
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 1.90 in
• UL Listed: No
