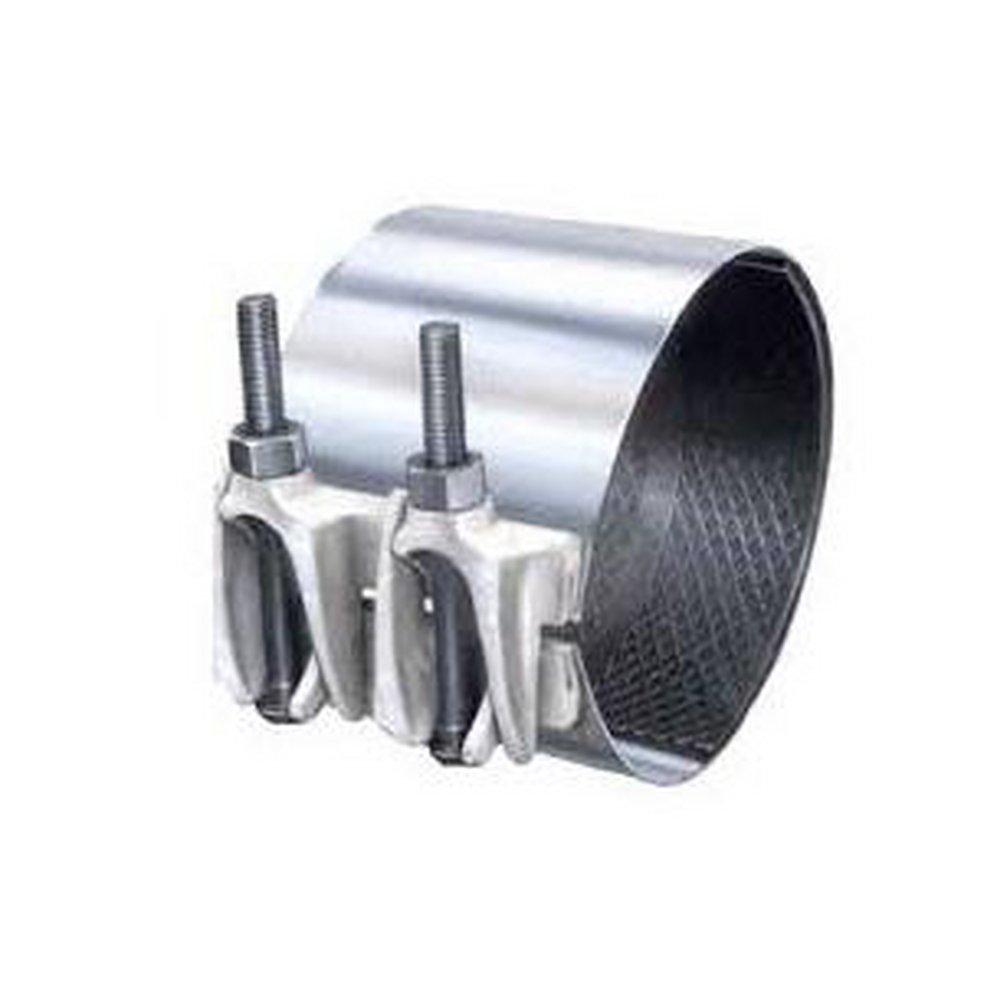

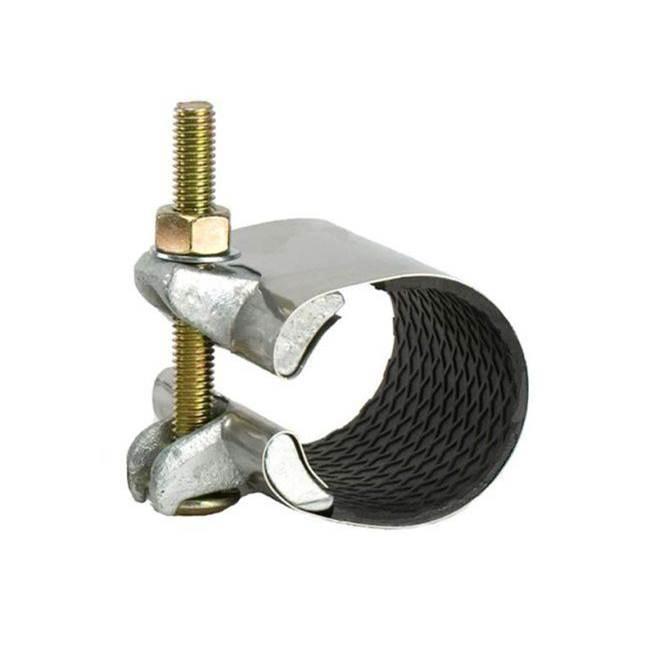

Jcm 110-0132-6 patch clamp 6 in

Product Description

The JCM 110-0132-6 patch clamps are designed with a partial gasket for fast, economical repairs for pinholes, punctures, splits or corrosion areas on steel and PVC pipelines. The stainless steel band conforms to the pipe circumference with bolt torque applied directly to spot gasket sealing. These clamps are widely used in plumbing, industrial, water, gas and irrigation markets.

• Stainless steel 18-8 type 304 band provides sealing strength and corrosion resistance
• Plated drop-in bolts speed installation. Stainless bolts available
• Heavy plated nut provides extra strength in take up

Product Highlights

JCM 110 Patch clamps are fast economical repair clamps to permanently repair pin holes, punctures or splits in steel pipe.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0132-6

Technical Specifications

• Fits Pipe Size: 1 in
• Gasket: Buna-N
• Body Material: 304 Stainless Steel
• Material Standard: ASTM A536/D2000
• Width: 6 in
• Additional Information: 1.32 in OD Pipe
• Connection Type: Lug
• Nominal Size: 1 inch IPS
• Pipe Outer Diameter: 1.32 inch
• Material: 304 Stainless Steel Band, Gridded Rubber Gasket, Ductile Iron Lug
• For Use With: Steel Pipe
• Standards: ASTM A-536, ASTM D2000
• ANSI: ANSI 372, ANSI 61
• Application: PVC Pipe, Steel Pipe
• Coating: Electrogalvanized
• Collection: Model #110
• Length: 6
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Range (in): 1.32 in
