Jc Whitlam JCW-IG16 Thread Sealant 1 Pint Blue Pvc Cpvc

Product Description

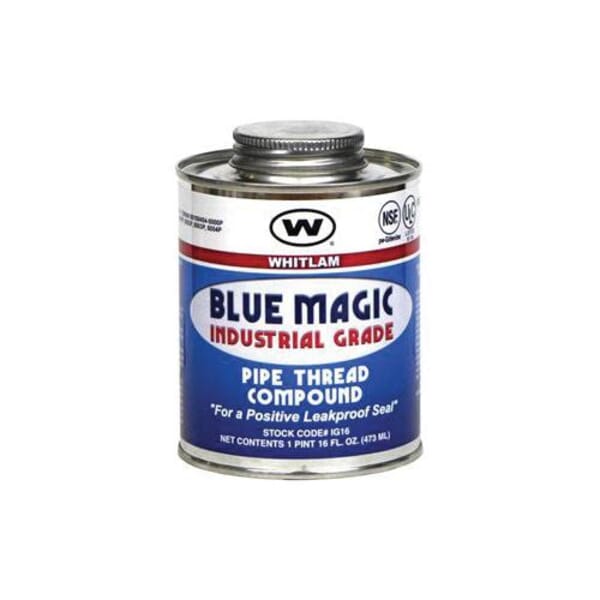

The JC WHITLAM JCW-IG16 is an industrial grade thread sealant formulated for use on threaded pipe joints in gas and liquid service. It ships in a 1-pint brush-in cap bottle for clean, controlled application. The sealant is rated for service from -50 to 400 degrees F, making it suitable for a wide range of operating conditions. With a specific gravity of 1.41 and a flash point above 200 degrees F, it is stable for transport and storage. Licensed plumbers and pipefitters install this product on threaded connections where a reliable, code-acceptable thread seal is required.

This sealant is designed for industrial and commercial piping applications involving gas and liquid media. It is formulated to bond to PVC and CPVC pipe and fittings, in addition to metal threaded connections. The brush-in cap container makes it practical for both field service and shop work, allowing direct application without additional tools. Plumbers, pipefitters, and HVAC technicians working on threaded pipe assemblies in mechanical rooms, process piping, and utility systems will find the 1-pint container suitable for moderate-volume work.

Key Features

• Industrial grade formulation rated for gas and liquid service from -50 to 400 degrees F
• Bonds to PVC and CPVC in addition to standard metal threaded fittings
• Brush-in cap bottle allows direct, mess-free application at the joint
• Flash point above 200 degrees F supports safe handling and storage
• 1-pint container size suitable for field service and moderate shop volume
• Blue color aids visual confirmation of applied coverage

Compatibility

Formulated to bond to PVC and CPVC pipe and fittings. Suitable for use on threaded pipe joints in gas and liquid service applications across industrial and commercial piping systems.

Installation Notes

Apply to clean, dry, and burr-free threads before assembly. Ensure the system is fully depressurized and isolated before disassembling any existing threaded connections for resealing. Thread sealants on gas lines must be applied in accordance with local codes and IFGC requirements — confirm the product is approved for the specific gas type and pressure rating in your jurisdiction. Allow adequate cure time before pressurizing the system, following the manufacturer guidance on the product label.

Technical Specifications

• Type: Industrial Grade Thread Sealant
• Temperature Rating: -50 to 400 degrees F (Gas/Liquid)
• Flash Point: Above 200 degrees F
• Specific Gravity: 1.41
• VOC Content: 310 g/L
• Color: Blue
• Odor: Mild
• Container Size: 1 pint
• Container Type: Brush-In Cap Bottle
• Country of Origin: United States

Standard Information

• Brand: JC WHITLAM
• Manufacturer Part Number: JCW-IG16
