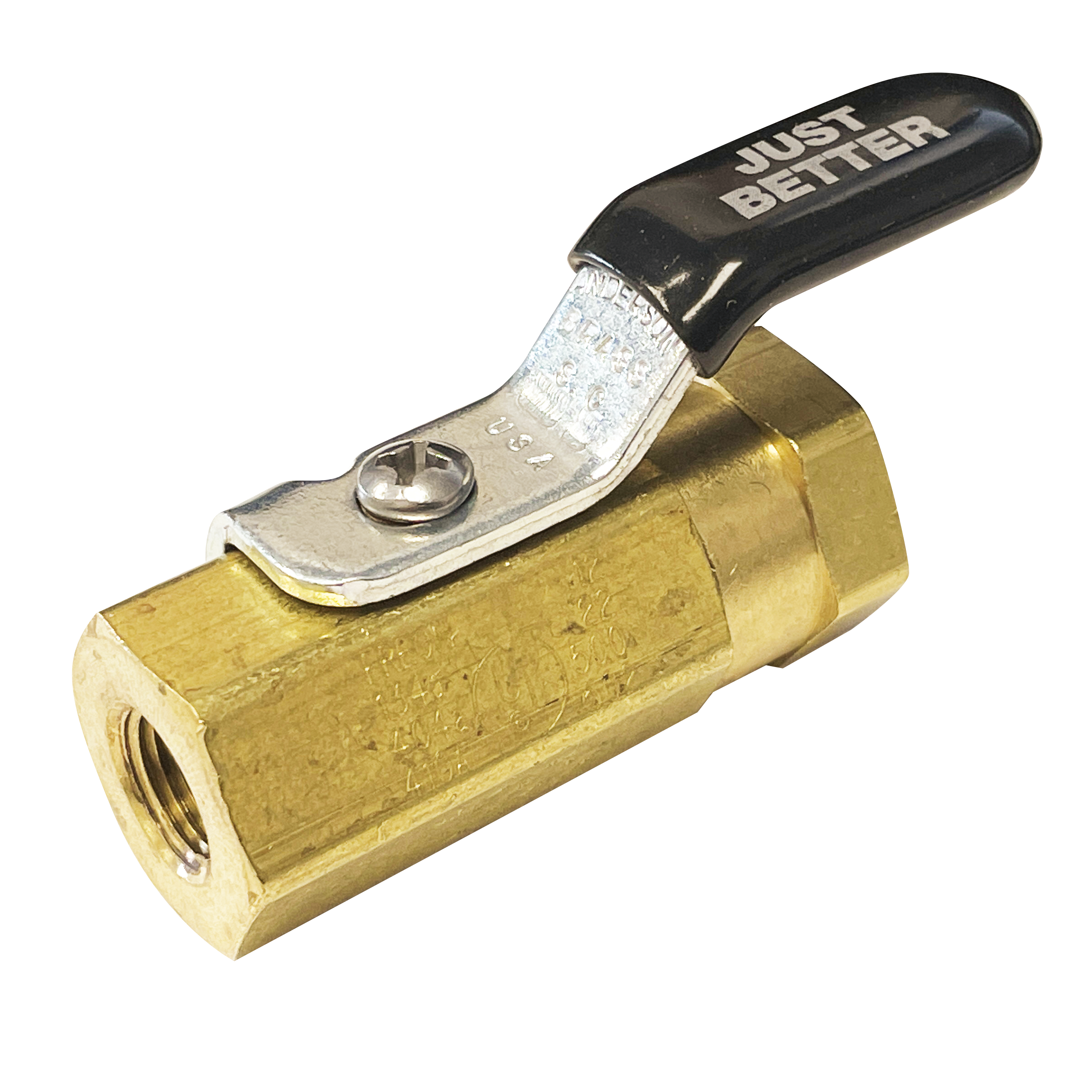

Jb Industries V34900 Ball Valve 1/8 inches FPT x 1/8 inches FPT

Product Description

The JB INDUSTRIES V34900 Ball Valve is a refrigeration shut-off component constructed from brass, designed for reliable flow control. It features 1/8" FPT x 1/8" FPT connection sizes and is rated for a maximum pressure of 500 psi. This valve is suitable for building custom vacuum or charging systems, offering a straight-through flow design with no restriction. Its quarter-turn mechanism allows for quick full open/close operation.

• Constructed with a 1-piece forged brass body for durability.
• Features a chromium plated ball with vented valve for efficient operation.
• Designed with a quarter-turn mechanism for quick open/close control.

Product Highlights

This brass ball valve is ideal for refrigeration shut-off applications, featuring a straight-through flow and quarter-turn operation.

Product Information

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: V34900
• Country of Origin: USA

Technical Specifications

• Length: 7.5 inches
• Outer Diameter: 0.875 inches
• Body Material: Brass
• Connection Type: 1/8" FPT x 1/8" FPT
• Maximum Pressure: 500 psi
• End Style: FPT
• Nominal Size: 1/8 inch
• Trim Material: PTFE Seat
• Seal Material: Neoprene
• Quantity Per Pack: 1
