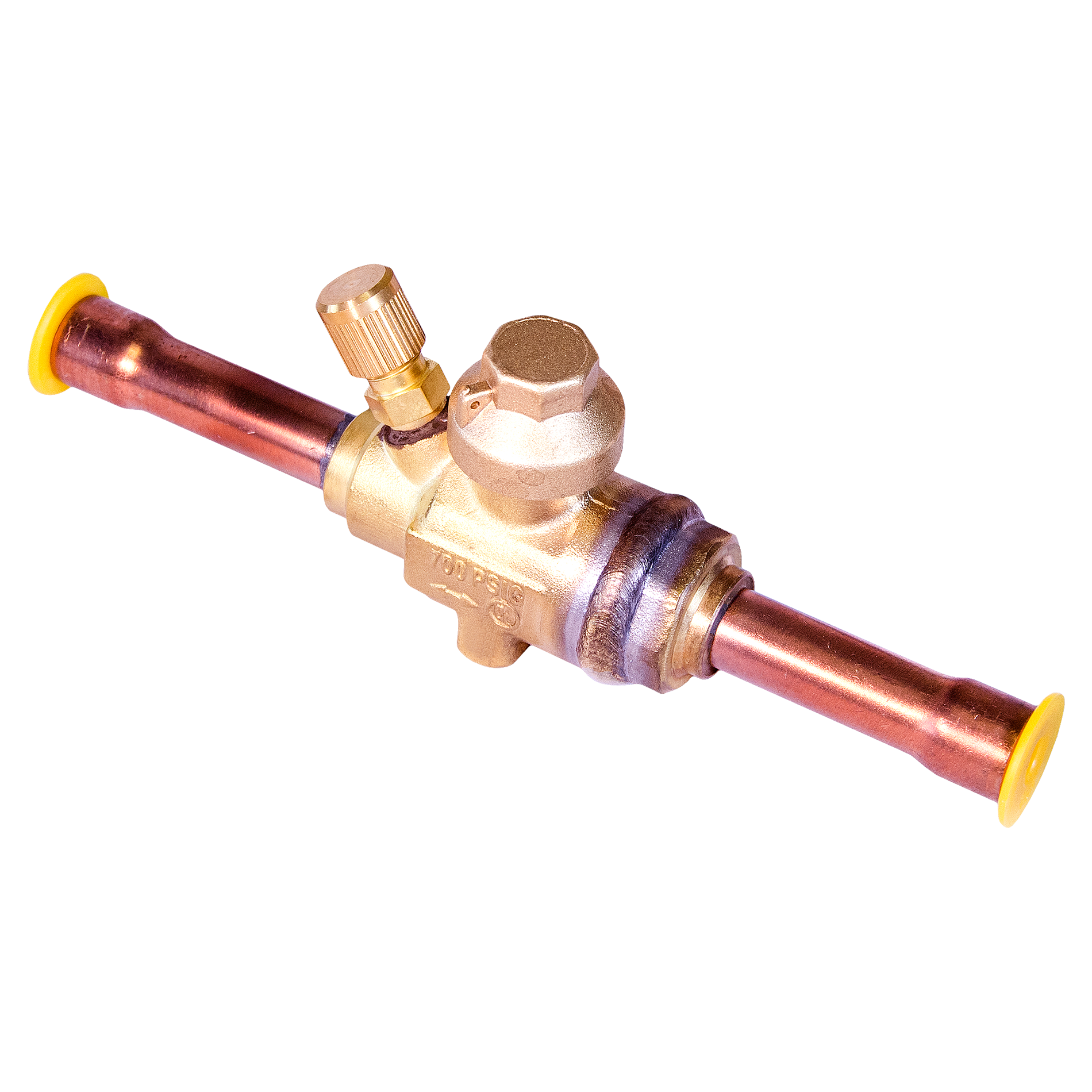

JB Industries V34501 Refrigerant Ball Valve 1/2 in C Tube

Product Description

The JB Industries V34501 is a refrigerant ball valve that features a large port for low pressure drop and straight-through flow. This product includes copper end fittings for easy installation. It also has a stainless steel actuator, designed for a maximum working pressure of 700 psi. The construction avoids bolted or screwed bonnets or flanges.

• C tube connection
• Stainless steel body
• Includes access valve

Product Highlights

This refrigerant ball valve is suitable for various applications in heating and cooling systems.

Product Information

Standard Information

• Nominal Size: 1/2 inches
• Connection Type: C Tube Connection

Technical Specifications

• Maximum Pressure: 700 psi
• Body Material: Stainless Steel
• Temperature Range: 300 to 500 degrees F
• Length: 6.09 inches
• UL Listed: Yes
• Valve Type: Ball Valves
• Category Type: Valves
• Access Valve: Yes
• Quantity Per Pack: 1 pack
• Width: 7 inches
• Height: 1.5 inches
