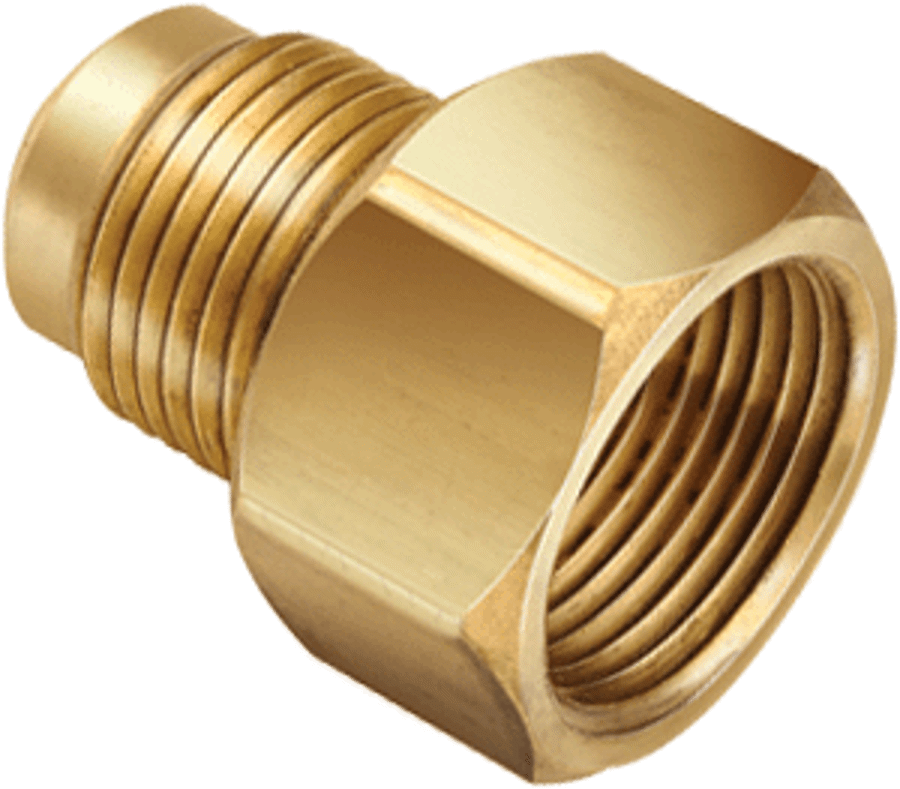

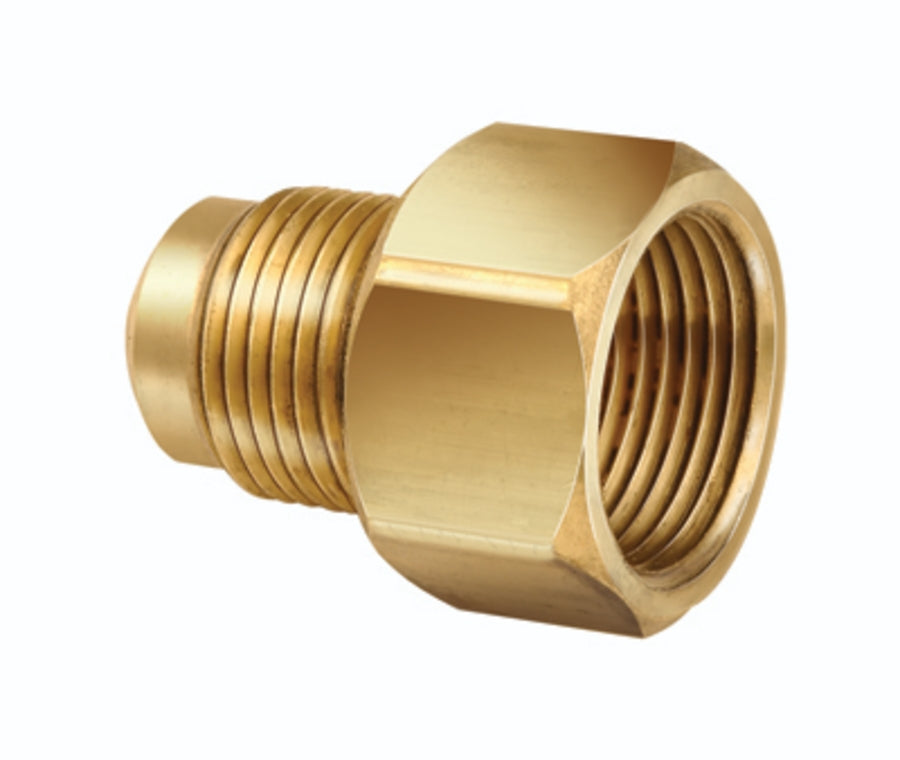

Jb Industries UR3-810 Brass Adapter, 1/2 inches Female Flare x 5/8 inches Flare

Product Description

The JB INDUSTRIES UR3-810 is a brass adapter with 1/2" female flare x 5/8" flare connections. It is made from forged brass to maximize strength and eliminate cracks. This fitting can be used with copper, brass, aluminum, steel and plastic tube provided an acceptable flare could be generated with the material.

• Made from forged brass to maximize strength and eliminate cracks
• Tubing should be double flared in extreme applications to minimize flare thinning on over-tightening
• Long dryseal pipe threads minimize leakage and provide more clearance for tightening flare nuts

Product Highlights

This brass adapter is suitable for marine, hydraulic and refrigeration service. It features a 4:1 safety factor and can handle vacuum pressures of 5000 psi depending on conditions.

Product Information

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: UR3-810

Technical Specifications

• Type: Adapter
• Material: Brass
• Connection Size 1: 1/2 in
• Connection Size 2: 5/8 in
• Connection Type: Female Flared|Flared
• Fitting Type: Adapter
• Material Construction: Brass
• Pressure Rating: 2000 psi
