Jb Industries TC-50-100 Capillary Tubing 0.050 Id 0.114 Od 100 Ft

Product Description

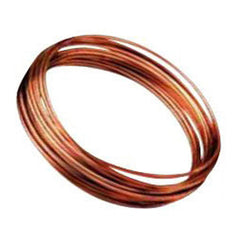

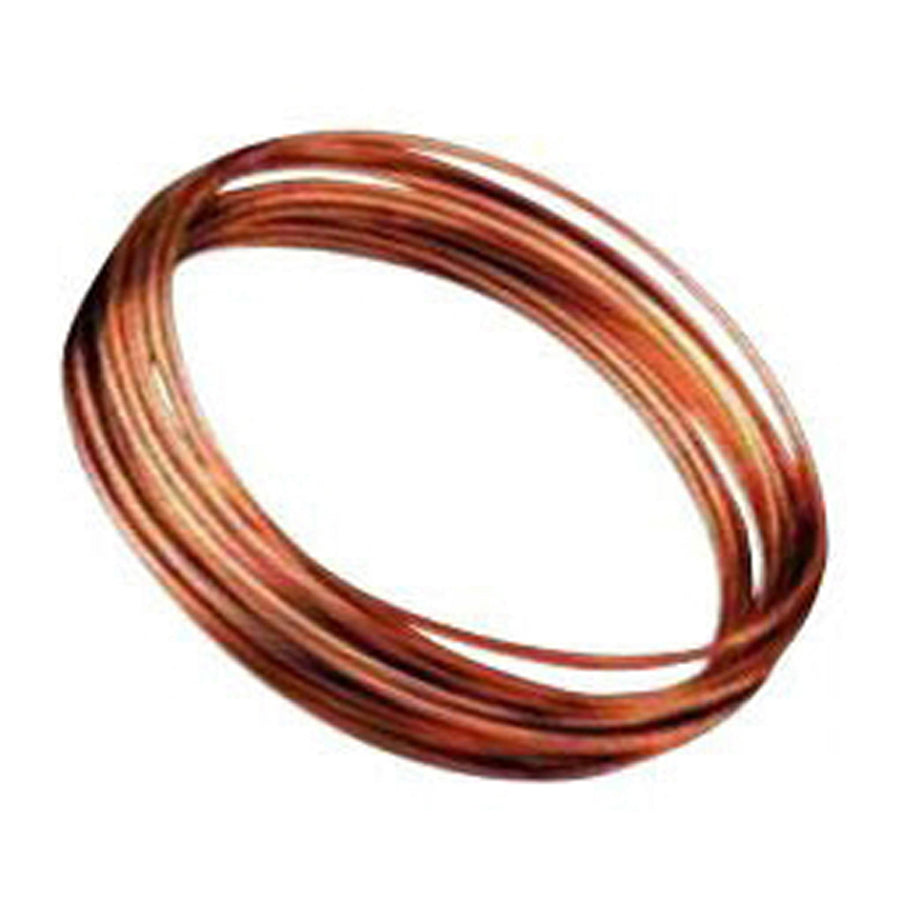

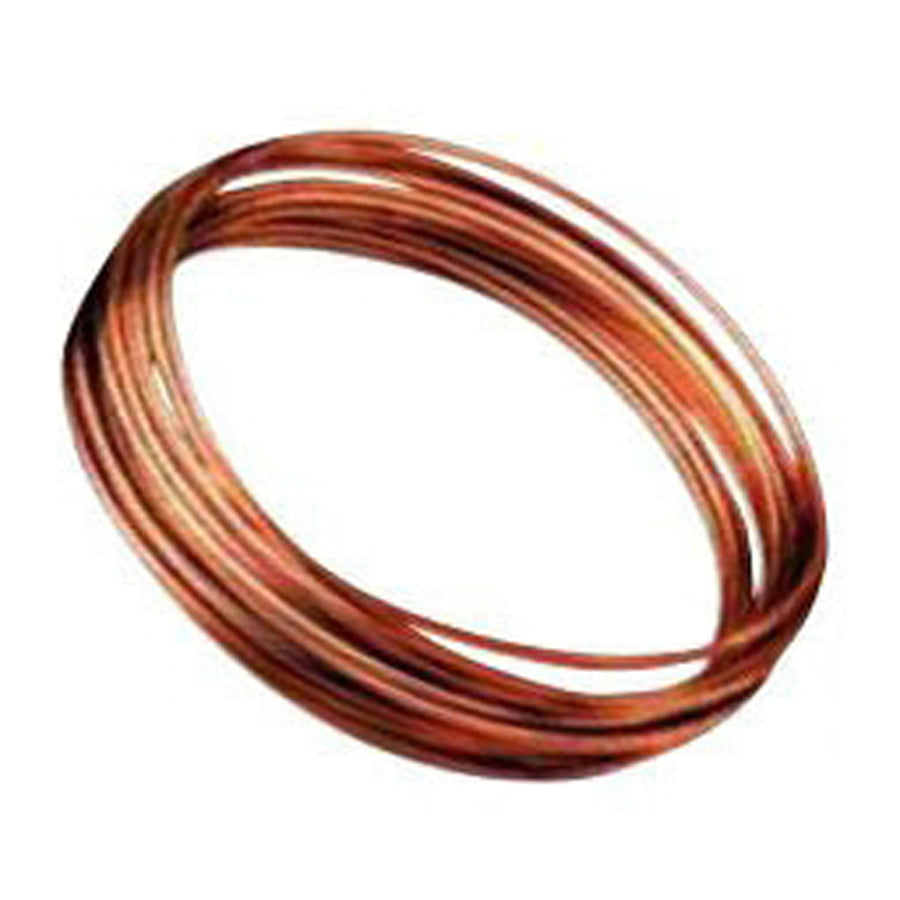

The JB INDUSTRIES TC-50-100 is a capillary tubing coil used in refrigeration and air conditioning systems to meter refrigerant flow between the high-pressure and low-pressure sides of the refrigerant circuit. It measures 0.050 inches inside diameter and 0.114 inches outside diameter, supplied in a 100-foot coil. Capillary tubes serve as a fixed metering device in place of expansion valves in many residential and light commercial refrigeration systems. Each coil is boxed with an application chart to assist technicians in selecting the correct tube length and diameter for the system being serviced. Manufactured in the USA.

This capillary tubing is suited for use in residential refrigerators, freezers, window air conditioners, dehumidifiers, and other sealed refrigerant systems that rely on a fixed-restriction metering device. HVAC-R technicians and refrigeration service professionals use capillary tubing during system repairs, replacements, or retrofits where the original metering device has failed or where a custom tube length is required. The included application chart helps match tube length to the system load and refrigerant type.

Key Features

• 0.050 inch inside diameter for precise refrigerant metering in small systems
• 0.114 inch outside diameter for standard capillary tube fittings and brazing practices
• 100-foot coil length allows technicians to cut to the exact length required
• Boxed with an application chart for selecting proper tube length per system requirements
• Made in the USA

Compatibility

Designed as an OEM-style replacement capillary tube for residential and light commercial refrigerant systems that use a fixed-restriction metering device in place of a thermostatic expansion valve.

Installation Notes

Capillary tube replacement and installation is performed by licensed HVAC-R technicians working under applicable refrigerant handling regulations. Always recover refrigerant and depressurize the system completely before cutting or removing existing capillary tubing. Braze connections using nitrogen purge to prevent oxide contamination inside the tubing. Consult the included application chart to determine the correct cut length before installation.

Technical Specifications

• Inside Diameter: 0.050 inches
• Outside Diameter: 0.114 inches
• Length: 100 feet
• Country of Origin: USA

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: TC-50-100
