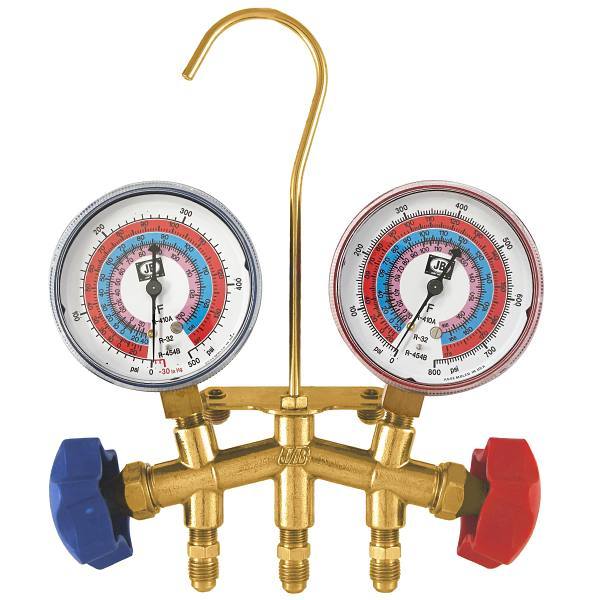

JB Industries M2-5-454-32 Standard 2-Valve Classic Brass Manifold

Product Description

The JB Industries M2-5-454-32 is a essential 2-valve brass manifold for HVAC applications. It works with R32, R454B, and R410A refrigerants. The manifold has a forged brass body with an angled design to enhance usability.

• Compatible with R32, R454B, and R410A refrigerants
• Features surge-dampened gauges for accurate readings
• Full flow design allows for faster evacuation and charging

Product Highlights

This manifold is equipped with a replaceable hanging hook and fittings for easy use.

Product Information

Standard Information

• Refrigerants: R32, R454B, and R410A
• Units of Measure: psi, F°

Technical Specifications

• Inlet Size: 1/4 in.
• Number of Inlet Ports: 3 ports total (inlet & outlet)
• Number of Outlet Ports: 3 ports total (inlet & outlet)
• Outlet Size: 1/4 in.
• Package Quantity: 1
• A2L Compatible: Yes
• Length: 9.25 inches
• Width: 3.5 inches
• Height: 13 inches
• Weight: 3.4 lbs
• Certifications & Standards: AbilityOne, ADA Compliant, GSA Approved, Made in the USA, TAA/BAA Compliant, UL Listed
