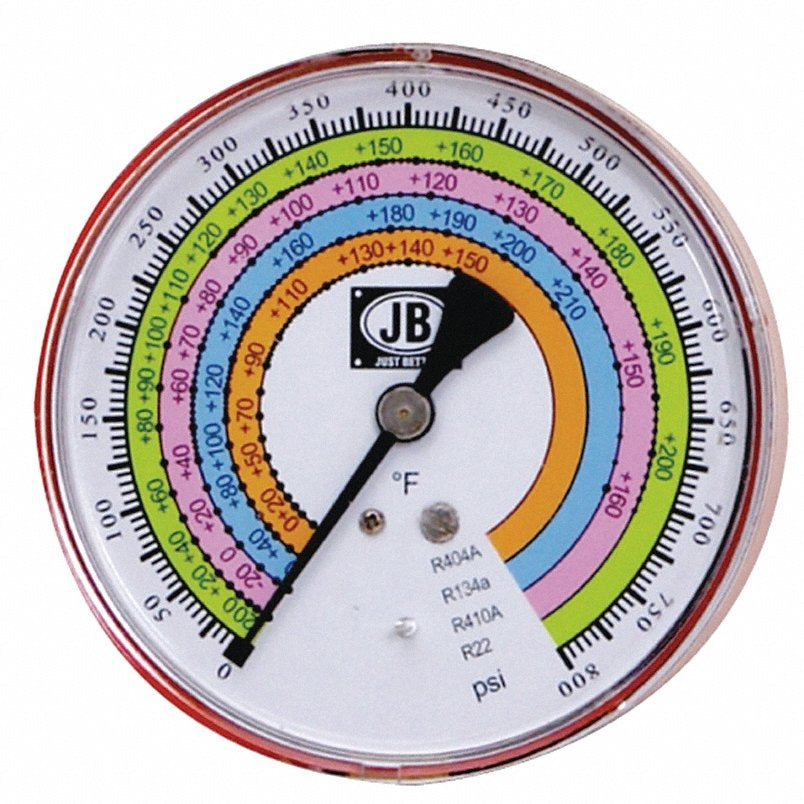

Jb Industries JBIND-M2-405 High Side Gauge 0-800 Psi 4 in

Product Description

The JB Industries JBIND-M2-405 is an analog high-side pressure gauge designed for use on the high-pressure lines of refrigeration and air conditioning systems. It reads from 0 to 800 psi on a rotary dial face measuring 4 inches in diameter. The gauge is non-liquid filled and operates without batteries, making it immune to electromagnetic interference and suitable for field use without power concerns. Licensed HVAC technicians use this gauge to monitor high-side system pressures during charging, recovery, and diagnostic procedures.

This gauge is intended for high-side service on residential and commercial refrigeration and air conditioning systems. It connects to the high-pressure side of a refrigerant circuit and provides a continuous analog pressure reading during service. The red color coding follows standard manifold gauge conventions, allowing technicians to quickly identify the high-side gauge at a glance. It is compatible with standard manifold gauge sets and high-side service ports.

Key Features

• Pressure range of 0 to 800 psi for high-side refrigerant circuit monitoring
• 4-inch diameter dial for clear, easy-to-read pressure display
• Non-liquid filled construction reduces weight and eliminates fluid leak risk
• Battery-free analog operation with no susceptibility to electromagnetic interference
• Red color coding follows standard high-side manifold gauge convention

Compatibility

Designed as an OEM-style high-side pressure gauge for use with standard refrigeration and air conditioning manifold gauge sets and high-pressure service ports.

Installation Notes

Installation and use of high-side pressure gauges should be performed by a licensed HVAC technician certified to handle refrigerants under EPA Section 608 regulations. Always recover or isolate refrigerant before connecting or disconnecting gauge lines from the high-pressure side of the system. Verify that the gauge pressure range is appropriate for the refrigerant in use before connecting. Use proper gauge hose fittings and inspect hoses for wear or damage before each service call.

Technical Specifications

• Pressure Range: 0 to 800 psi
• Dial Diameter: 4 inches
• Fill Type: Non-Liquid Filled
• Color: Red
• Gauge Type: Analog High Side

Standard Information

• Brand: JB Industries
• Manufacturer Part Number: JBIND-M2-405
