Jb Industries JBIND-A31851 Swivel Nut Tee 1/4 Inch Sae

Product Description

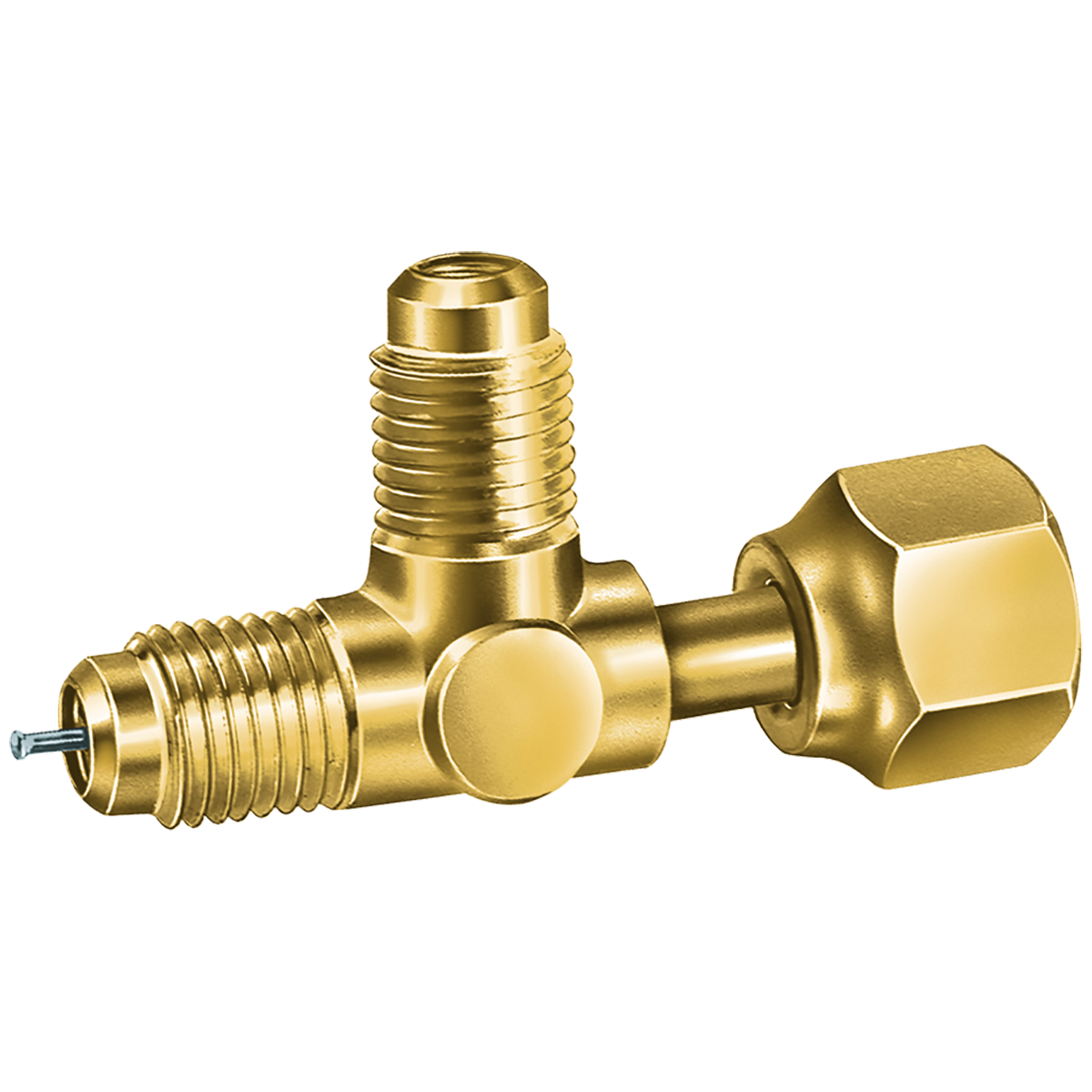

The JB INDUSTRIES JBIND-A31851 is a 1/4-inch swivel nut tee fitting designed for refrigerant system service work. It features an Access x Access x Female SAE Swivel end configuration, allowing technicians to connect manifold gauge sets or charging hoses at a service port without breaking the circuit. Constructed from domestic-made brass with 65% copper and 35% zinc content, this fitting delivers high tensile strength and corrosion resistance. It is compatible with multiple refrigerant types, making it a versatile tool for HVAC service technicians working across a range of system types.

This swivel nut tee is suited for residential and light commercial HVAC service applications where access to a refrigerant circuit is needed at a 1/4-inch Schrader-style access port. The swivel nut design allows for easy connection and disconnection without twisting hoses or disturbing adjacent connections. It is typically used during system diagnostics, charging, or recovery procedures. Compatible refrigerants include R-12, R-22, R-134A, R-410A, and R-502, covering a wide range of legacy and current refrigerant systems.

Key Features

• Access x Access x Female SAE Swivel end configuration for flexible manifold connections
• 1/4-inch nominal size fits standard Schrader-style refrigerant access ports
• Machined domestic brass with 65% copper and 35% zinc for corrosion resistance and strength
• Compatible with R-12, R-22, R-134A, R-410A, and R-502 refrigerants
• Manufactured to ARI guidelines for proper valve and core surface sealing
• Domestically produced at the JB Industries facility in Aurora, Illinois

Compatibility

Rated for use with R-12, R-22, R-134A, R-410A, and R-502 refrigerants. Fits 1/4-inch refrigerant access ports with standard Access x Access x Female SAE Swivel connections.

Installation Notes

This fitting is installed by licensed HVAC technicians during refrigerant system service. Always recover refrigerant and relieve system pressure before disconnecting any existing service fittings. Ensure threads are clean and free of debris before connecting. Verify that the depressor engages the Schrader core fully to maintain an unobstructed flow path during service.

Technical Specifications

• Nominal Size: 1/4 inch
• End Style: Access x Access x Female SAE Swivel
• Material: Brass (65% copper, 35% zinc)
• Compatible Refrigerants: R-12, R-22, R-134A, R-410A, R-502
• Country of Origin: Domestic (USA)

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: JBIND-A31851
