JB INDUSTRIES JB-DV-200N-250SP Vacuum Pump

Product Description

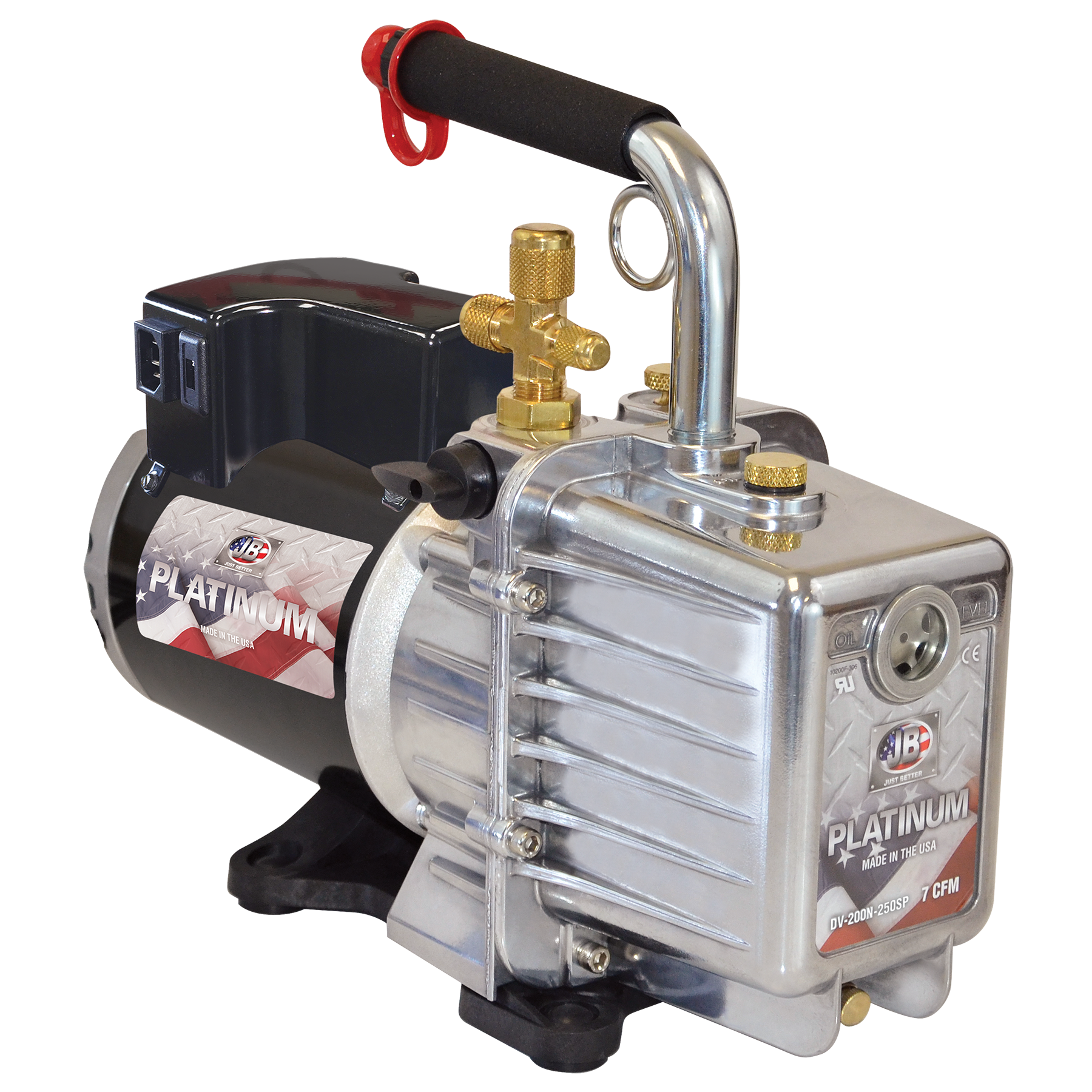

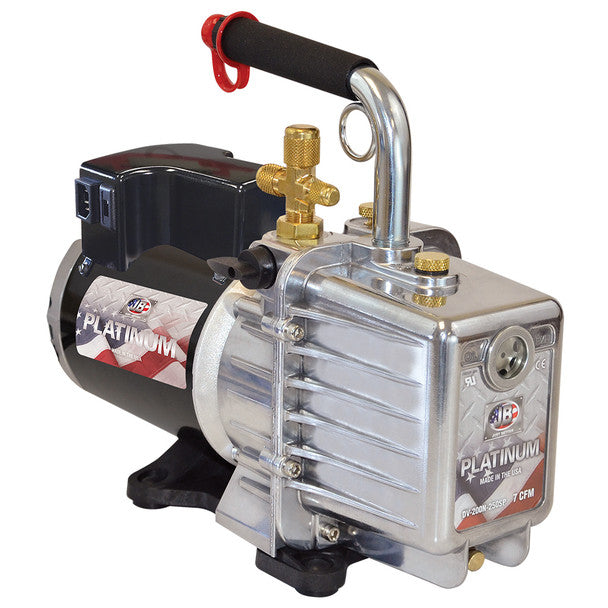

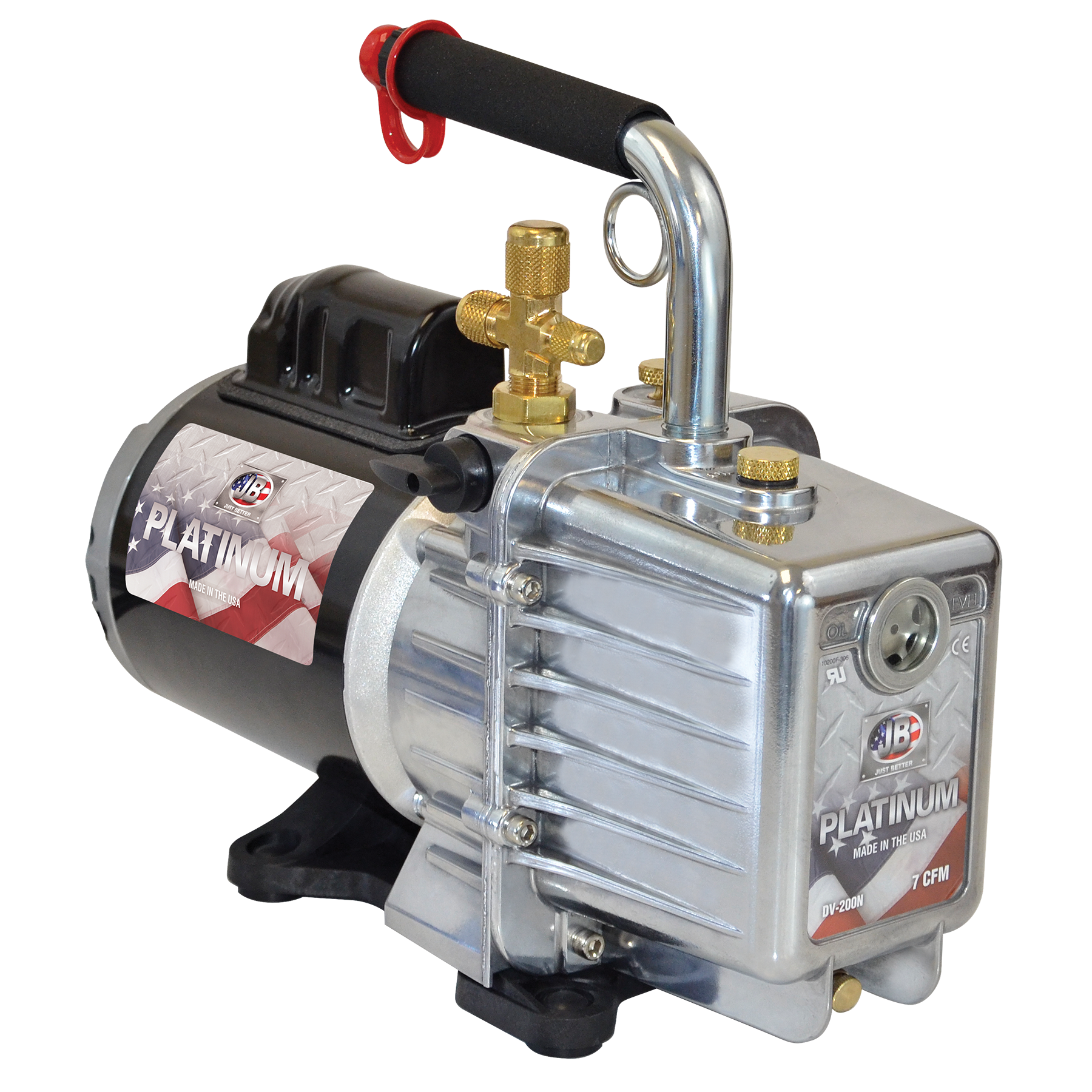

The JB INDUSTRIES JB-DV-200N-250SP is a seven CFM dual voltage vacuum pump built for various HVAC applications. This vacuum pump features a two-stage direct drive system powered by a one-half horsepower motor with thermal overload protection. It provides a vacuum rating of fifteen microns and includes both a gas ballast and a blank-off isolation valve.

The construction includes robust metal components, a finned aluminum housing, brass fittings, and stainless steel valving. An internal check valve is included to prevent oil backflow. The easy access intake tee allows for connections of one-fourth, three-eighths, and one-half inch.

• Dual voltage motor with a removable, interchangeable power cord for operating in different regions.
• Equipped with an oil drain valve and tethered safety cap to help manage leaks during maintenance.
• Designed with a spark-proof motor, suitable for Class A1, A2L, A2, and A3 refrigeration systems.

Product Highlights

This vacuum pump is field serviceable, featuring a removable power cord and is ideal for both residential and commercial HVAC tasks.

Product Information

Standard Information

• Brand: JB INDUSTRIES
• MPN: JB-DV-200N-250SP

Technical Specifications

• CFM: 7
• Motor: 1/2 HP, 1725/1425 RPM
• Intake Port: 1/2 x 1/4 x 3/8
• Oil Capacity: 21 oz
• Length: 14 inches
• Width: 18 inches
• Height: 9.13 inches
• Weight: 33 lbs
• Power Cord: US
• Dimensions: 14 x 18 x 9.13 inches (35.56 x 45.72 x 23.19 cm)
