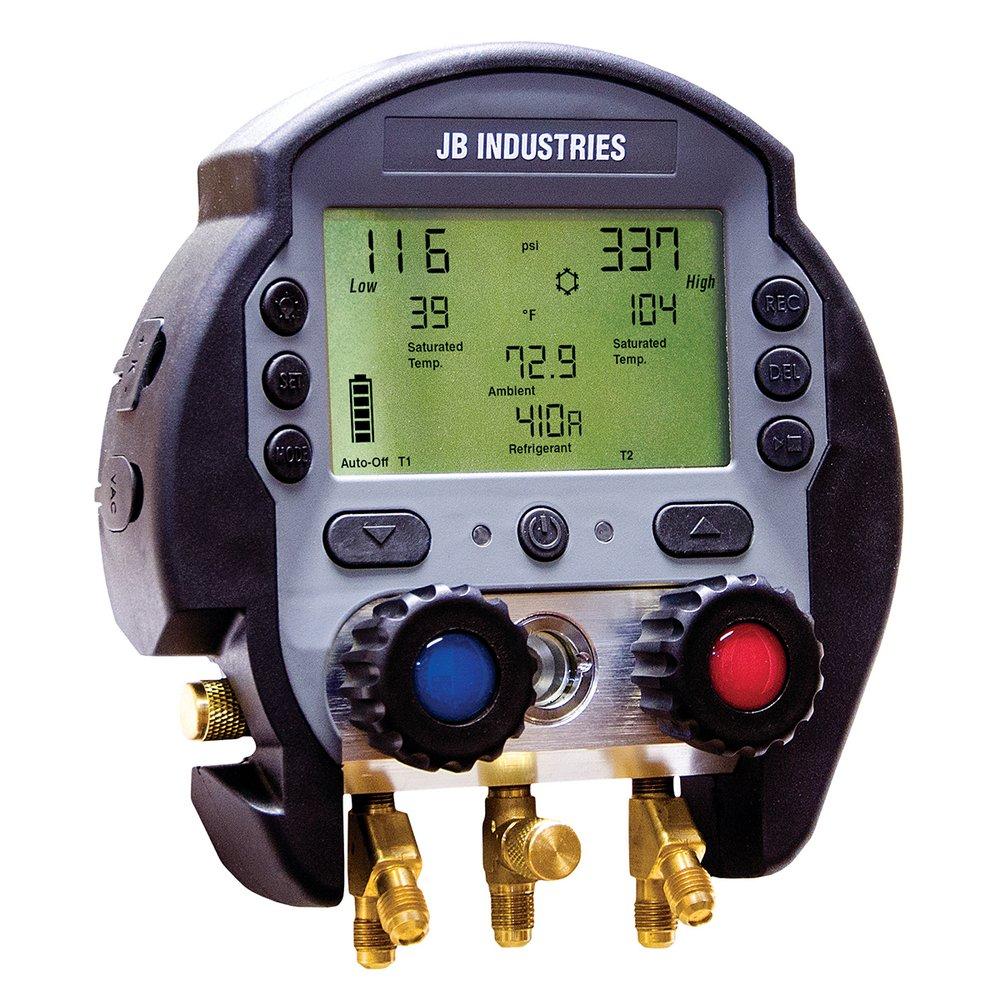

JB DMG28 2Valve Digital Manifold Monitor (diagonal): 4 1/3 / 11cm Pressure measurement range: 14.5 to 870 psi Precision (at 71.6F):+/ 0.5% fs Temperature measurement range:58F 392F Working temperature:14F 122F
The latest addition to the JB manifold lineup the 2Valve DMG2 digital manifold stands out from the competition with a large easy to read backlit screen with intuitive buttons that make getting the job done even easier. The DMG2 is stored with over 80 refrigerants simultaneous calculates superheat and subcool and features a robust transducer that is as reliable as a traditional manifold.
• Its ergonomic design features a soft grip protective overmold with slipproof notched knobs and a convenient hook to hang your manifold in tight spaces.
• It includes a rugged carrying case and heavy duty clamps.
• Preprogrammed with 80+ refrigerants.
• Simultaneous calculation of superheat and subcool.
• Robust transducer design.
• Sturdy body designed for resiliency.
• Heavy duty KTYPE Thermal Couples included.
• Simple and Accessible data display.Technical Specifications
• Pressure display: bar psi K
Pa M
Pa
• Temperature display: C F
• Vacuum display: microns mbar mm
Hg Pa m
Torr
• Power source: 9V battery 550 M
Ah
• Monitor (diagonal): 4 1/3 / 11cm
• Pressure measurement range: 14.5 to 870 psi
• Precision (at 71.6F):+/ 0.5% fs
• Temperature measurement range:58F 392F
• Working temperature:14F 122F
• Connections:4x SAE (7/16 UNF)
• Max. recording time:8h in device 96h with DMGDATA
Refrigerants: R11 R113 R114 R115 R116 R12 R1234yf R123A R124 R125 R13 R134a R141B R142B R143 R143A R152A R21 R218 R22 R227ea R23 R290 R32 R401A R401B R401C R402A R402B R403A R403B R404A R405A R406A R407A R407B R407C R407D R408A R409A R410A R410B R411A R411B R412A R413A R414A R414B R415A R416A R417A R420A R421A R421B R422A R422B R422C R422D R424A R427A R434A R437A R438A R500 R502 R503 R504 R507A R508A R508B R509A R600 R600A R601 R601A R718 R744 (subcritical).
