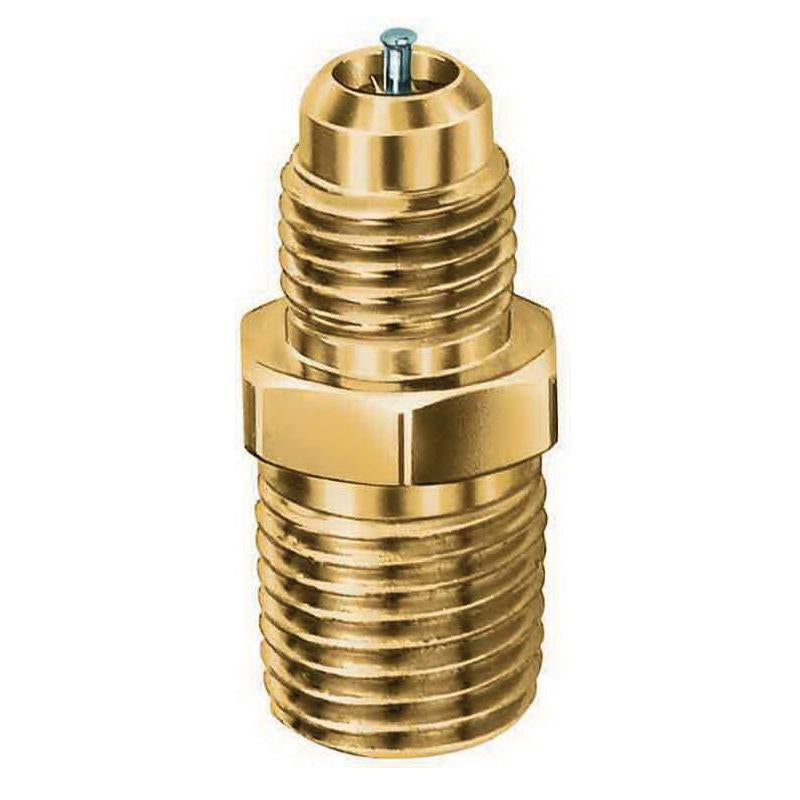

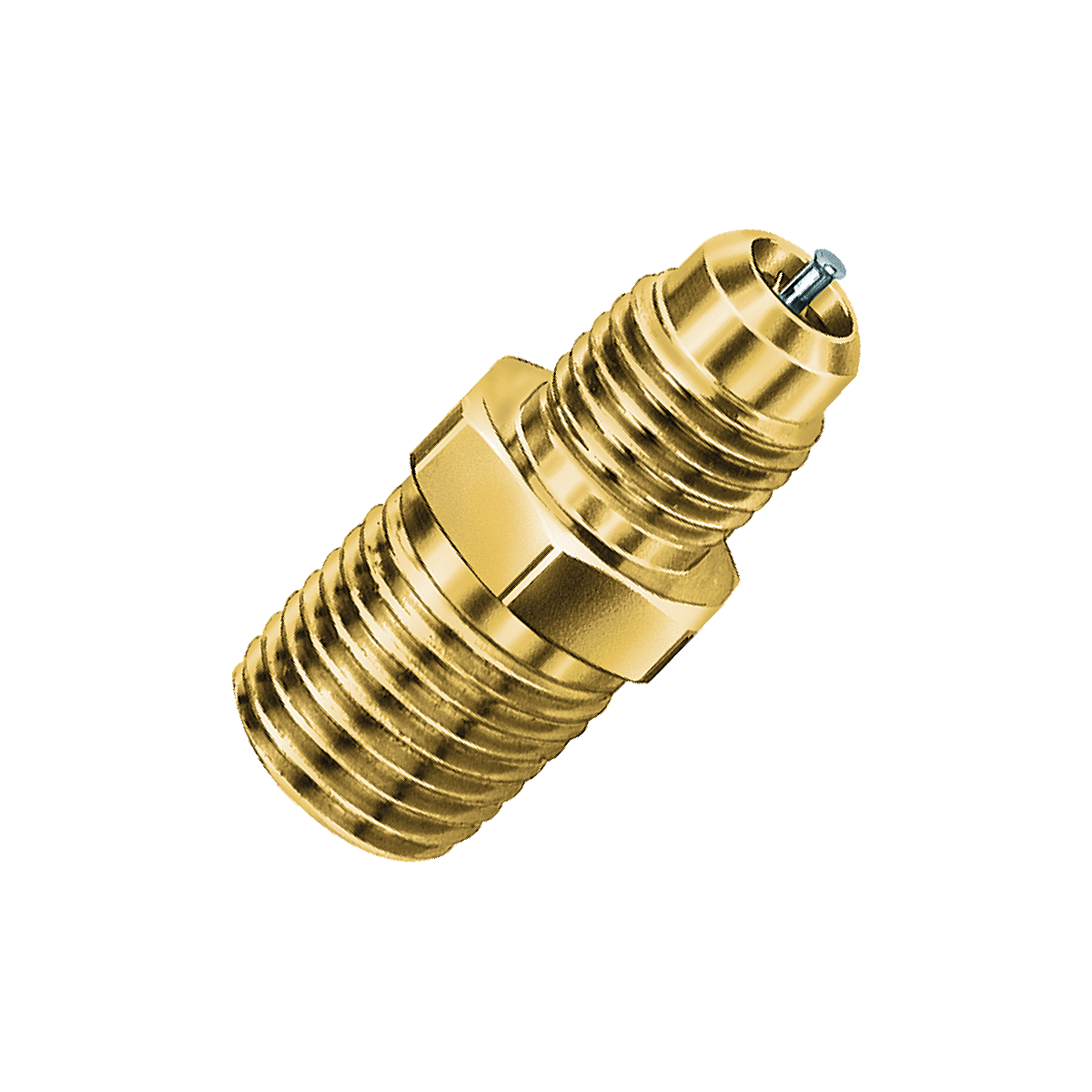

JB INDUSTRIES A31482-100 1/4 in Flared x 1/8 in MNPT Half Union

Product Description

The JB INDUSTRIES A31482-100 is a practical half union fitting made from brass, containing sixty-five percent copper and thirty-five percent zinc. It has a one-quarter inch flared connection on one side and an one-eighth inch male National Pipe Thread (MNPT) connection on the other. This fitting is suitable for use with all refrigerants, including R-410A, and provides resistance to oils, alkaline substances, and diluted mineral acids.

• One-quarter inch flared connection and one-eighth inch MNPT connection.
• Constructed from durable brass.
• Valve core is pre-torqued to adhere to AHRI specifications.

Product Highlights

This fitting ensures reliable connections in refrigeration and air conditioning applications.

Product Information

Standard Information

• Fitting Type: Union
• Material: Brass

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Type 1: Flared
• Connection Size 2: 1/8 in
• Connection Type 2: MNPT
• Temperature Range: -40 to 250 deg F (-40 to 121.1 deg C)
• Quantity Per Pack: 100 bulk
• Dimensions: 2.62 in L
• Length: 5.75
• Width: 2.63
• Height: 3.63
