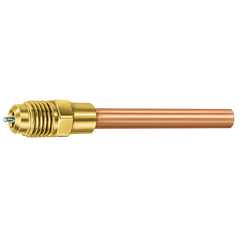

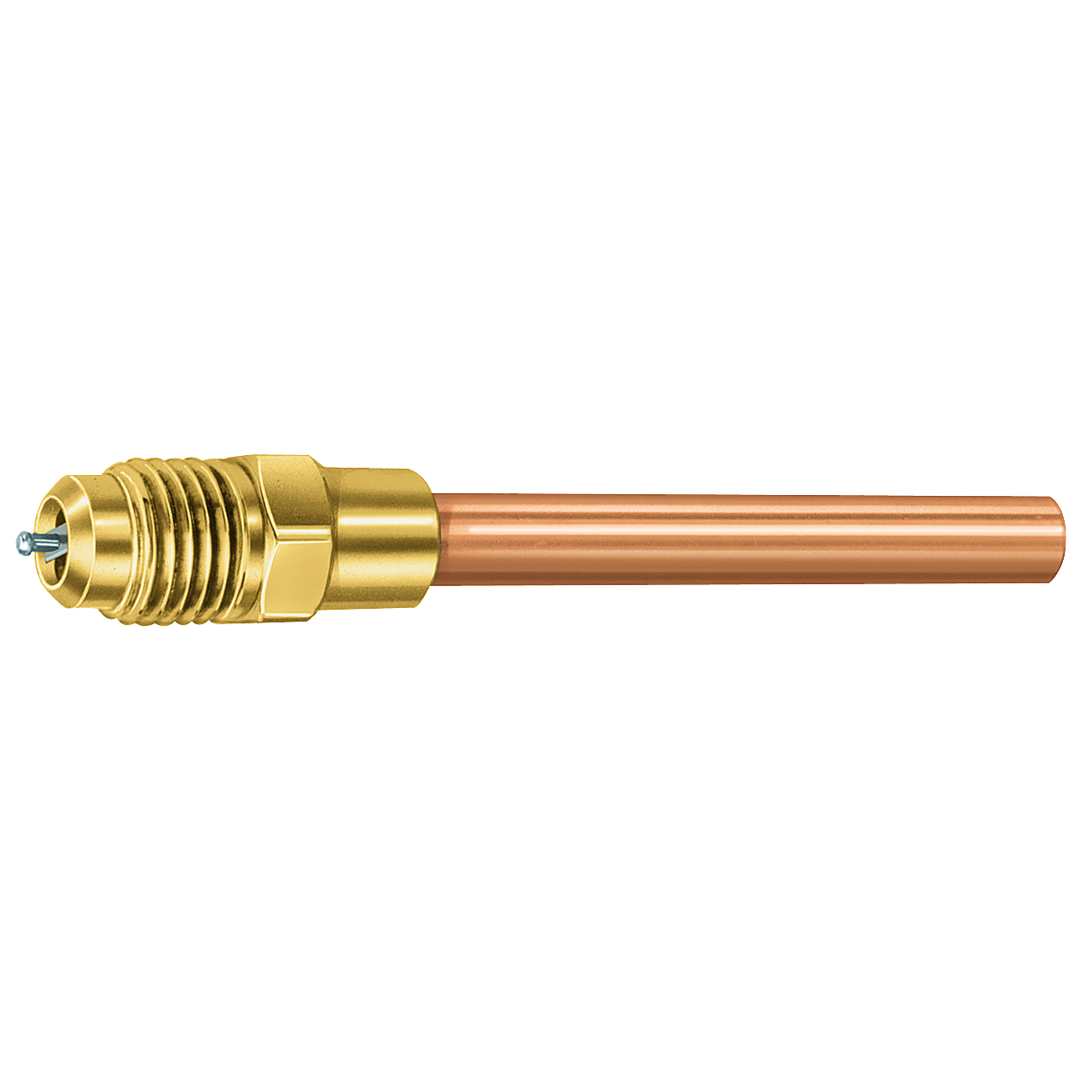

Jb Industries A31004-100 Access Valve, 1/4 inches OD x 3/16 inches ID Tube Extension Copper 100/Pk

Product Description

The JB INDUSTRIES A31004-100 is a copper Access Valve Extension Tube, featuring a 1/4 inch outside diameter and 3/16 inch inside diameter for the extension. Designed for HVAC applications, this extension tube has a 1/4 inch connection size and is constructed with a brass body and copper tube. It is rated for a maximum working pressure of 850 psi and includes brass access valves. This product is suitable for use with sil-phos alloy and copper fittings, provided in a package of 100.

• Copper tube extension with 1/4 inch outside diameter and 3/16 inch inside diameter.
• Features a 1/4 inch connection size and brass construction for HVAC use.
• Rated for a maximum working pressure of 850 psi, supplied in a pack of 100.

Product Highlights

Durable copper and brass access valve extension tube for HVAC systems, featuring 1/4 inch connections and 850 psi working pressure.

Product Information

Standard Information

• Brand: JB INDUSTRIES
• Manufacturer Part Number: A31004-100
• Country of Origin: United States

Technical Specifications

• Product Type: Access Valve Extension Tube
• Type: Access Valve
• Package Quantity: 100
• Length: 2 1/2 in
• Includes: 45 Degrees Beveled Edge
• For Use With: HVAC
• Connection Size: 1/4 in
• Max. Working Pressure: 850 psi
• Extension Inside Diameter: 3/16 in
• Extension Outside Diameter: 1/4 in
• Overall Length: 4 3/4 in
• Overall Width: 2 1/2 in
• Overall Height: 7 3/8 in
• Includes Components: NFT5-4 Cap, Valve Core
• For Material: Copper, Sil-Phos Alloy
• Access Connection Type: SAE
• Connection Material: Brass
